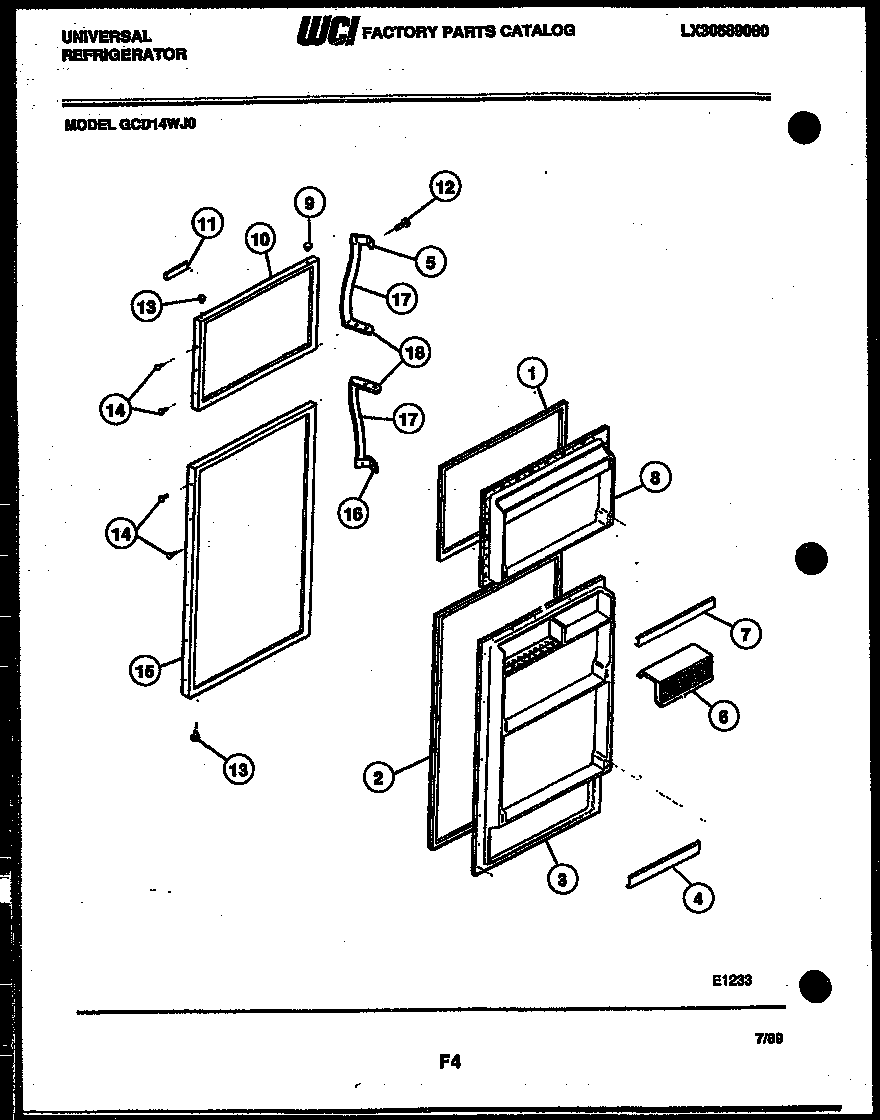

GCD14AJ0 02 – DOOR PARTS

Products

Position	Product
*47449	WCI G89643
1	GASKET-FREEZER
2	GASKET-REFRIGERATOR
3	INNER PANEL-REFR
4	RACK-FREEZER LOWER
5	WCI G179800
6	WCI 3205767
7	RACK-FRZR DOOR
8A	5304455651 Frigidaire Refrigerator Screw
8	INNER PANEL-FRZR
9	WCI G169332-08
10	WCI G186221-08
11A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
11	WCI G171161-01
12	WCI G185566
13	BEARING, HINGE (3)
14	WCI G162977-08
15	WCI G103903
15	WCI G186234-08
16	WCI G179801
17	GRIP-HANDLE (2)
18	WCI G187329-01
