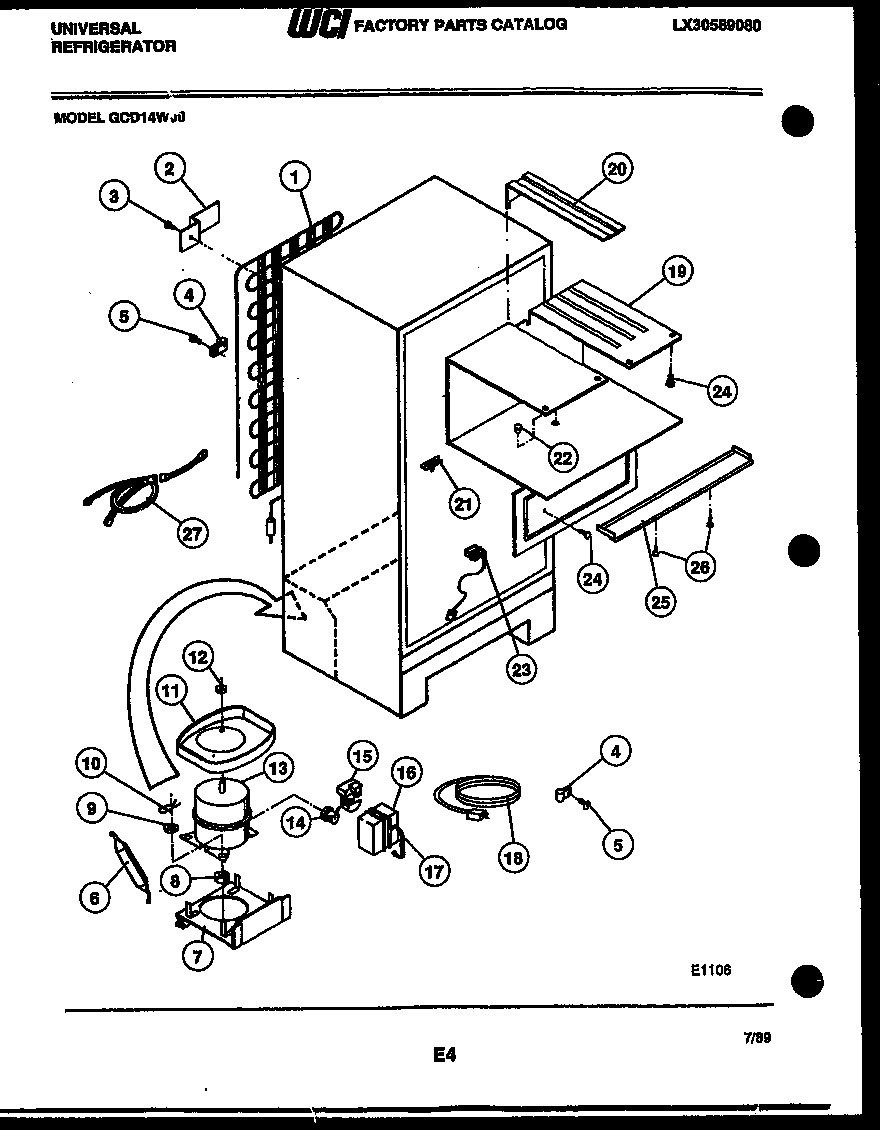

GCD14WJ0-66 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

GCD14WJ0-66 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GCD14WJ0-66 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*43991HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1WCI G178225
2WASHER
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
45303001199 Frigidaire Refrigerator Wiring Harness Clamp
55304455651 Frigidaire Refrigerator Screw
65303305677 Frigidaire Replacement Filter Dryer Filters
7WCI G162822
8218513300 Frigidaire Refrigerator Compressor Mount Grommet
9WASHER, COMPRESSOR MOUNTING (4)
10CLIP, COMPRESSOR MOUNTING (4)
11PAN RETAINER KIT-SERVICE
11DEFROST PAN
115303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
11DEFROST PAN & NUT
12NUT, LOCK
13WCI G186043
14WCI G187172
15WCI 3200716
16WCI G185792
17STRAP-COVER
18CORD, SERVICE
19WCI G186728
20WCI G189211
21WCI G178497
22WCI G164854
23WCI G186467
245304455650 Frigidaire Refrigerator Screw
25WCI G162980-01
26SCREW (5)
27WCI G177353
