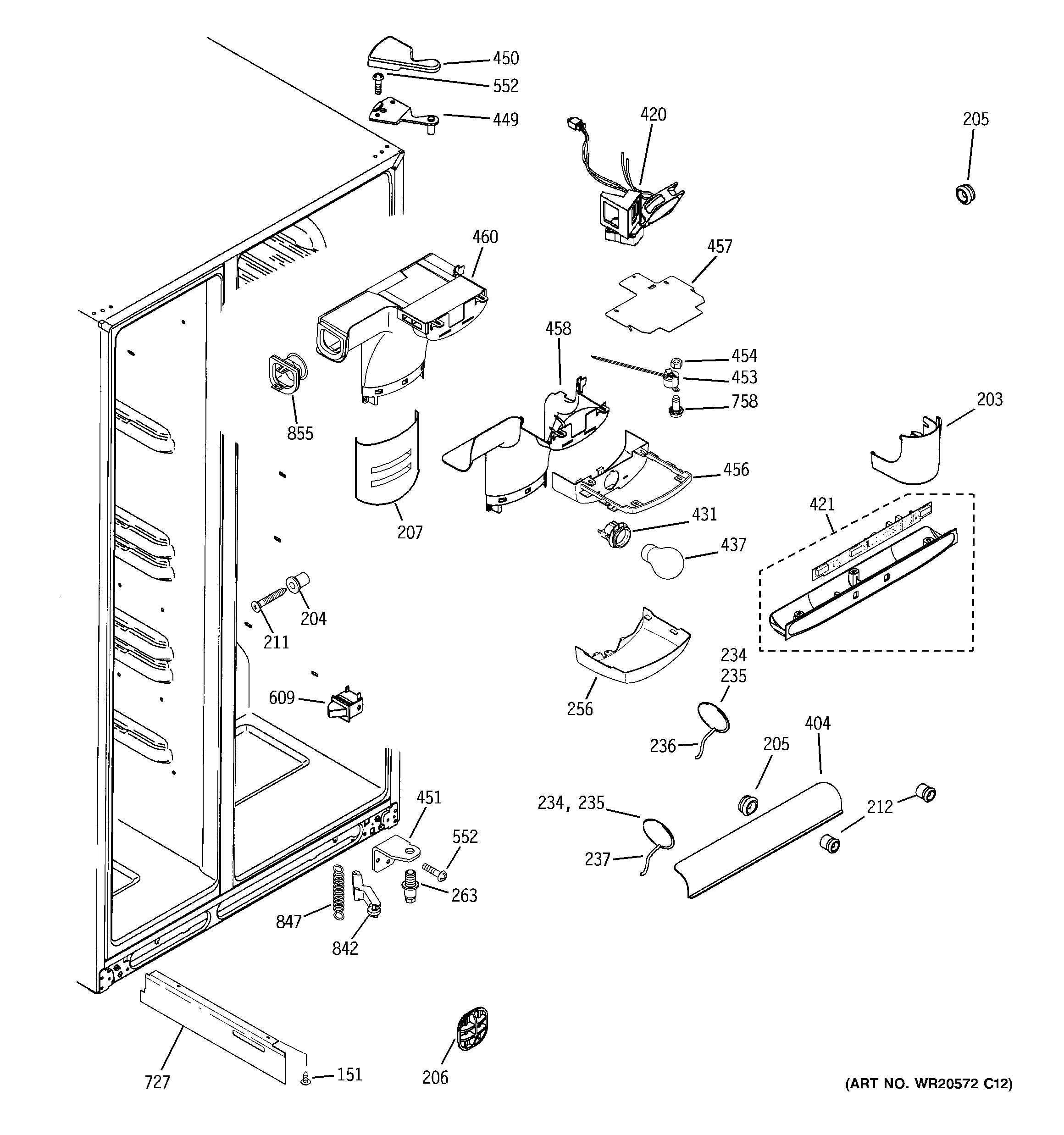

GCE23LBYDFBB FRESH FOOD SECTION

GCE23LBYDFBB FRESH FOOD SECTION

Written by

in

GCE23LBYDFBB FRESH FOOD SECTION

Products

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
203GEN WR17X13056
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
420WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
421GEN WR55X10601
431GEN WR02X11462
437WR02X12207 GE Refrigerator Net Bulb Light
449WR13X10215 GE Refrigerator Top Hinge & Pin
450WR02X10832 GE Refrigerator Black Cover Hinge
450WR02X10658 GE Refrigerator White Cover Hinge
451WR13X10167 GE Refrigerator Bottom Hinge Black
451WR13X10126 GE Refrigerator Hinge Bottom Adjuster White
453WR23X10493 GE Refrigerator Light Harness
454WR01X10212 GE Refrigerator 8-32 Nut
456WR49X28627 GE Refrigerator Fresh Food Light Shield & H
457WR17X12201 GE Light Reflector
458WR17X12881 GE Refrigerator Inlet Cover
460WR49X10252 GE Refrigerator Cover Assembly Inlet
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
552WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12382 GE Air Separator Hinge Side
758WD2X323D GE Dishwasher Screw Package
842WR11X10007 GE Refrigerator Lever Assembly
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
