GCE23LHTAFBB FRESH FOOD SECTION

GCE23LHTAFBB FRESH FOOD SECTION

Written by

in

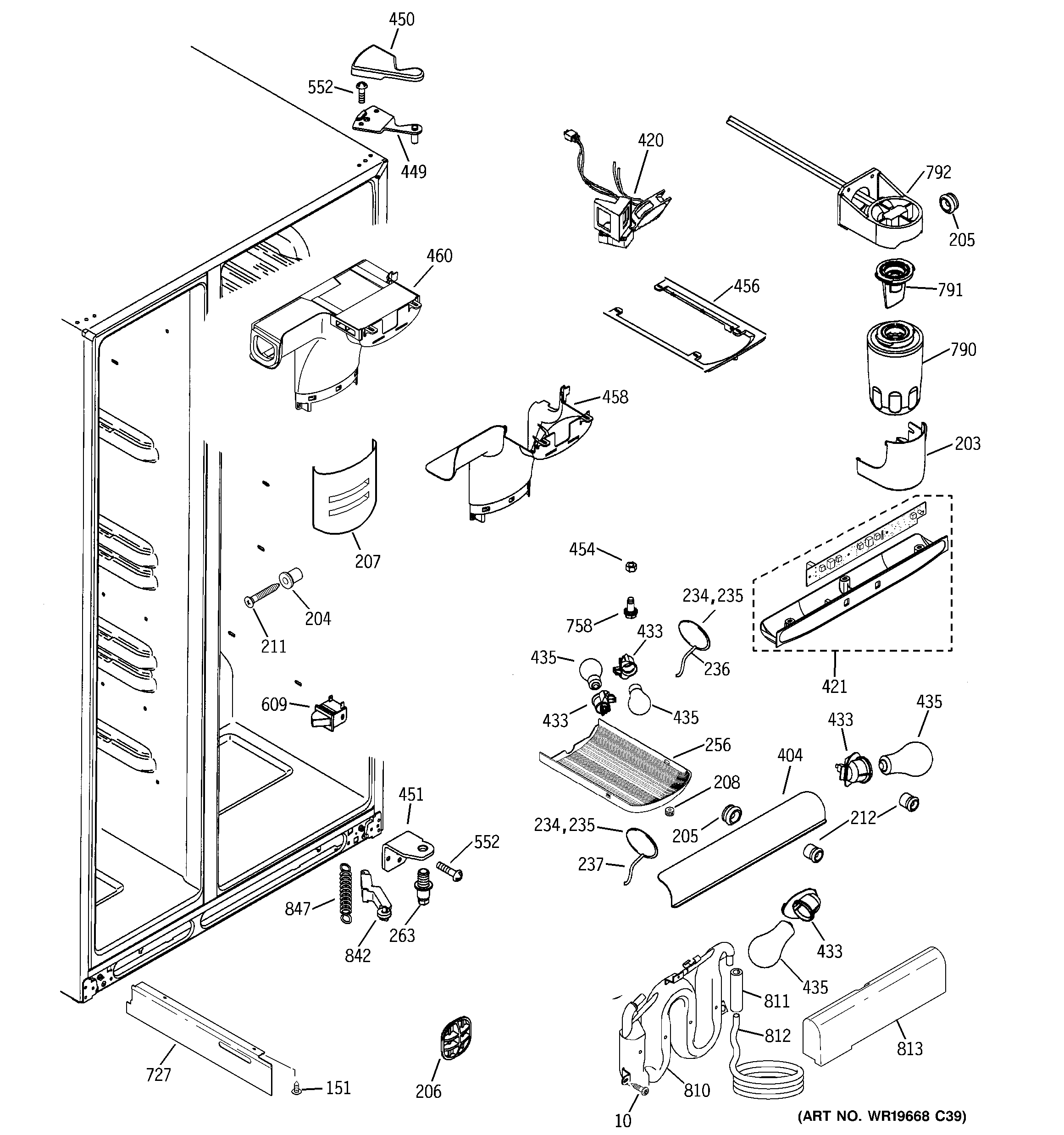

GCE23LHTAFBB FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
203WR17X10800 GE Refrigerator Water Cover
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
208WR01X10431 GE Refrigerator Nut 6-32 UN
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256GEN WR17X10839
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
420WR60X10225 GE Refrigerator Fresh Food Fan
433WR2X9014 GE Refrigerator Socket & Terminal C02
435WR02X12207 GE Refrigerator Net Bulb Light
450WR02X10832 GE Refrigerator Black Cover Hinge
450WR13X10215 GE Refrigerator Top Hinge & Pin
451WR13X10167 GE Refrigerator Bottom Hinge Black
458GEN WR17X10912
460WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
609REFRIGERATOR DOOR LIGHT SWITCH
727GEN WR17X11503
727WR17X12382 GE Air Separator Hinge Side
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
813WR17X11620 GE Refrigerator Insulation Tank Foam
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
