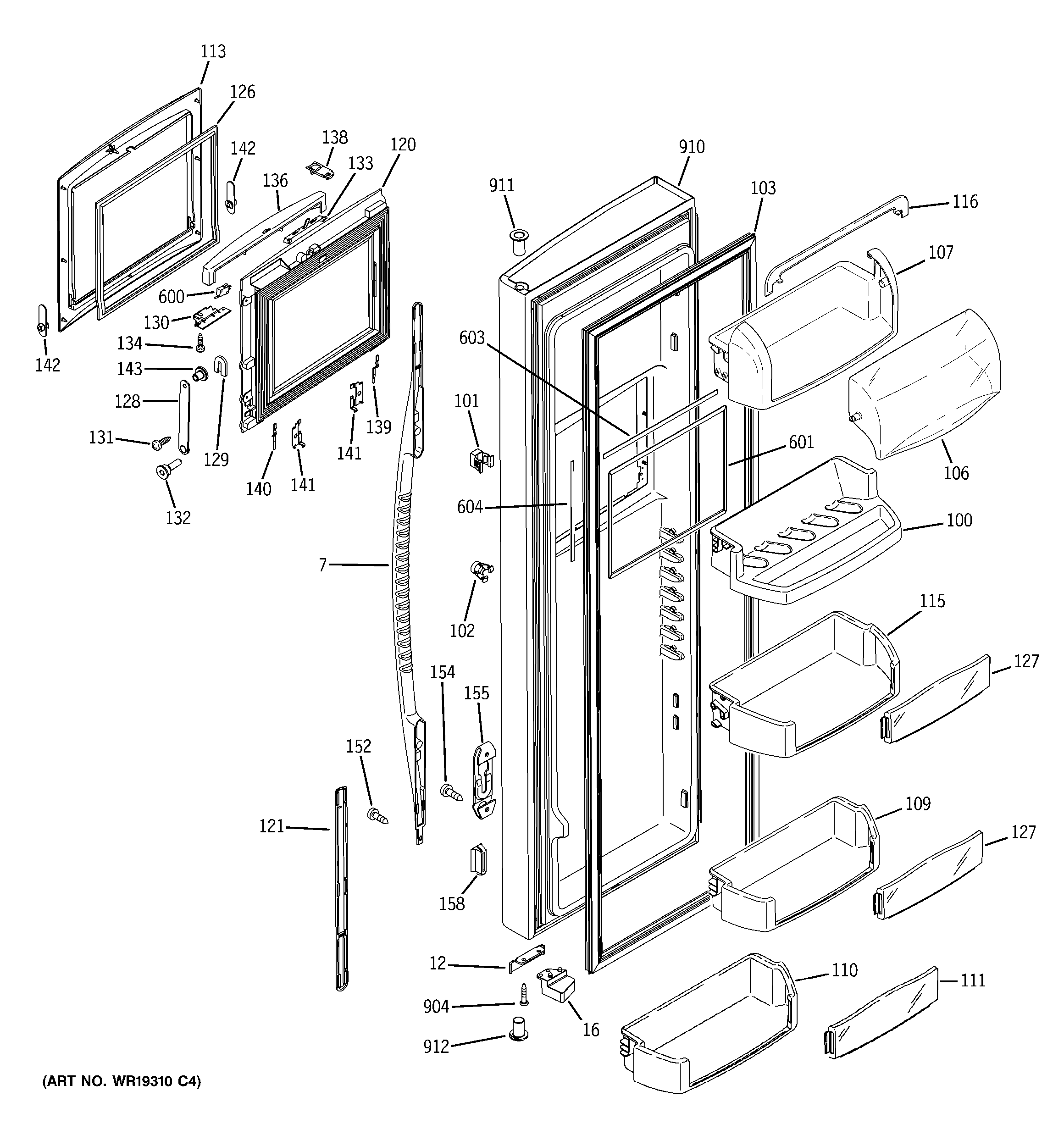

GCE23YHTAFWW FRESH FOOD DOOR

Products

Position	Product
7	GEN WR12X10406
12	WR02X13424 GE Refrigerator Door Stop
16	WR02X10637 GE Refrigerator Cam Closure
100	GEN WR17X10933
101	WR02X10040 GE Refrigerator Rectangular Fastener
102	GEN WR02X8162
102	WR02X12272 GE Tubular Fastener
103	WR24X10155 GE Refrigerator White Door Gasket
106	WR22X10042 GE Refrigerator Clear Dairy Door
107	WR22X10041 GE Refrigerator Dairy Compartment
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
110	WR71X10297 GE Refrigerator Shelf Module
111	GEN WR71X10579
113	GEN WR38X10241
115	WR71X10973 GE Refrigerator Door Shelf Bin
116	WR22X10043 GE Refrigerator Trim Dairy Compartment
120	WR17X12535 GE Refrigerator Door Foam Assembly
121	GEN WR12X10405
126	GEN WR24X10086
127	CLEAR INSERT DOOR MODULE
128	WR13X10005 GE Refrigerator Hinge Arm
129	WR02X10035 GE Hinge Cap Arm
130	WR02X10032 GE Refrigerator Bracket Side CMK
131	SCR 10-24 TX 11/16
132	WR02X10037 GE Refrigerator Stop Hinge Arm
133	WR02X10033 GE Refrigerator Door Trigr CMK
134	WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
134	WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136	WR12X10404 GE Refrigerator Door Handle CMK
138	WR02X10840 GE Refrigerator Door Latch
139	GEN WR02X10038
140	GEN WR02X10039
141	GEN WR01X10017
141	GEN WR01X10018
142	WR02X10036 GE Refrigerator Door Bushing CMK
143	WR02X10041 GE Arm Hinge Stud
152	GEN WR01X10467
152	WR01X10620 GE Refrigerator Screw 10-32
154	GEN WR01X10624
155	WR02X10643 GE Refrigerator Handle Lock Bracket
158	GEN WR02X10646
600	WR23X10027 GE Refrigerator Micro Switch
601	WR02X11459 GE Inner Door Trim Assembly
603	WR02X11483 GE Foam Tape
604	WR02X11484 GE Foam Tape Short
904	WR01X10611 GE Screw
910	GEN WR78X11776
911	WR01X10955 GE Refrigerator Door Thimble
912	WR01X10206 GE Refrigerator Thimble Door
