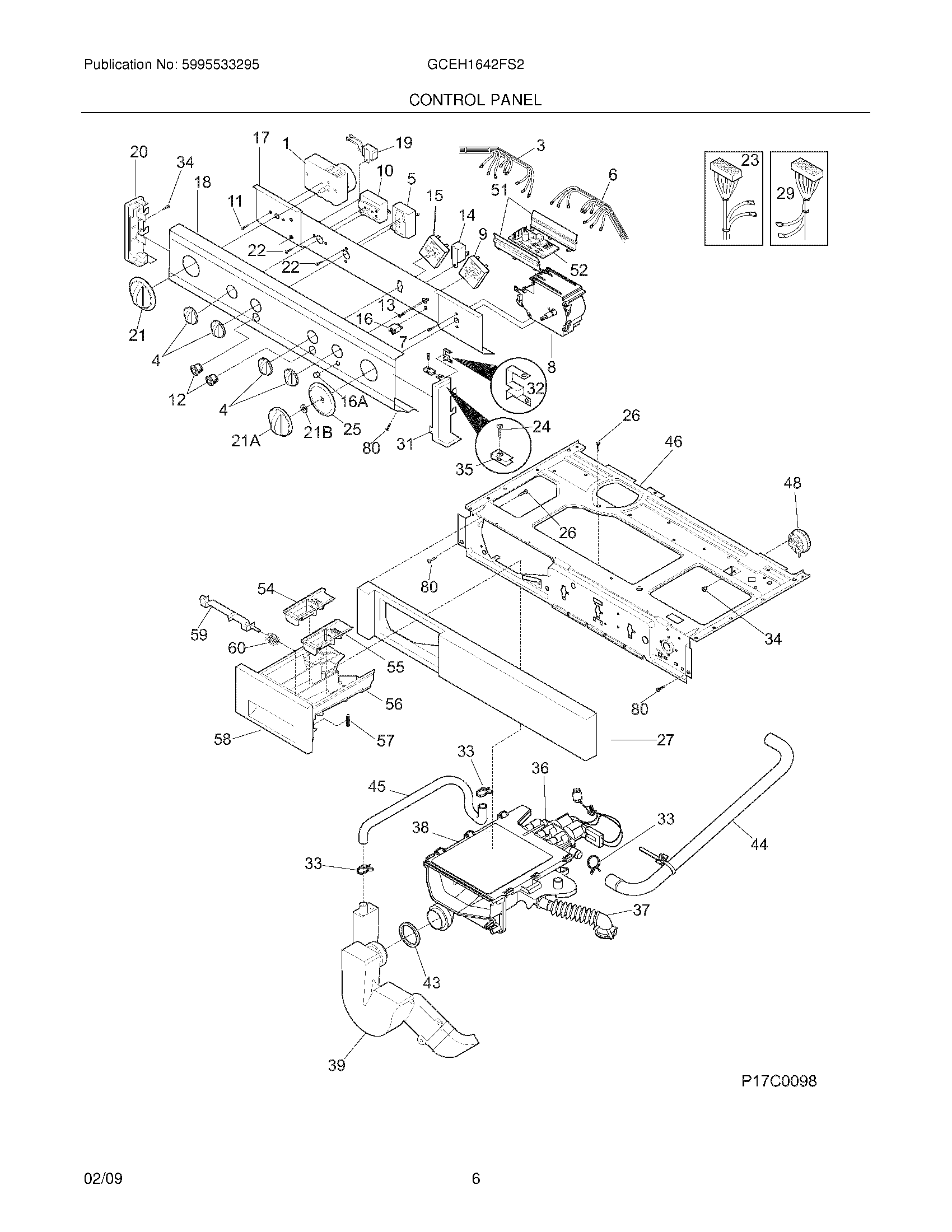

GCEH1642FS2 07 – CONTROL PANEL/TOP

GCEH1642FS2 07 – CONTROL PANEL/TOP

Written by

in

GCEH1642FS2 07 – CONTROL PANEL/TOP

Products

PositionProduct
NI5303161300 Frigidaire Strap
NIWCI 131931201
NIClamp,siphon/bellows
1131960800 Frigidaire Timer
3WCI 134136700
4131873401 Frigidaire Washer Control Knob
5WCI 134399900
6WCI 134392000
7131243800 Frigidaire Screw
8134803600 Frigidaire Washer Timer
9WCI 134400000
10134399700 Frigidaire Washer Switch
11218359202 Frigidaire Refrigerator Screw
12134040800 Frigidaire Switch
13WCI 131311700
14WCI 131724500
15WCI 134437700
16Lamp,status light
16ALens,status light ,clear
17WCI 134263400
18WCI 134321500
19WCI 5303286537
20WCI 131288101
21BSpacer,washer ,timer shaft
21AWCI 131167601
21131873304 Frigidaire Dryer Timer Knob White
22WCI 3161259
23Wiring Harness,main ,dryer
24134156200 Frigidaire Screw
25WCI 131167701
26WCI 131823400
27PANEL-DISPENSER DRAWER
29WCI 134993300
31WCI 131288211
32WCI 3204357
33134737300 Frigidaire Clamp
34131243700 Frigidaire Screw
35CLIP (8)
36131974700 Frigidaire Dispensing Valve Assembly
37131271600 Frigidaire Washer Dryer Tub Hose
38WCI 131803710
39WCI 131863300
43WCI 131749200
44WCI 131786000
45WCI 131786100
46WCI 134191412
48WCI 134818201
51WCI 134426400
52WCI 134216300
54WCI 131272100
55WCI 131272000
56WCI 131271910
57WCI 131373800
58WCI 131729500
59WCI 131714900
60WCI 131427500
80131168200 Frigidaire Dryer Screw
