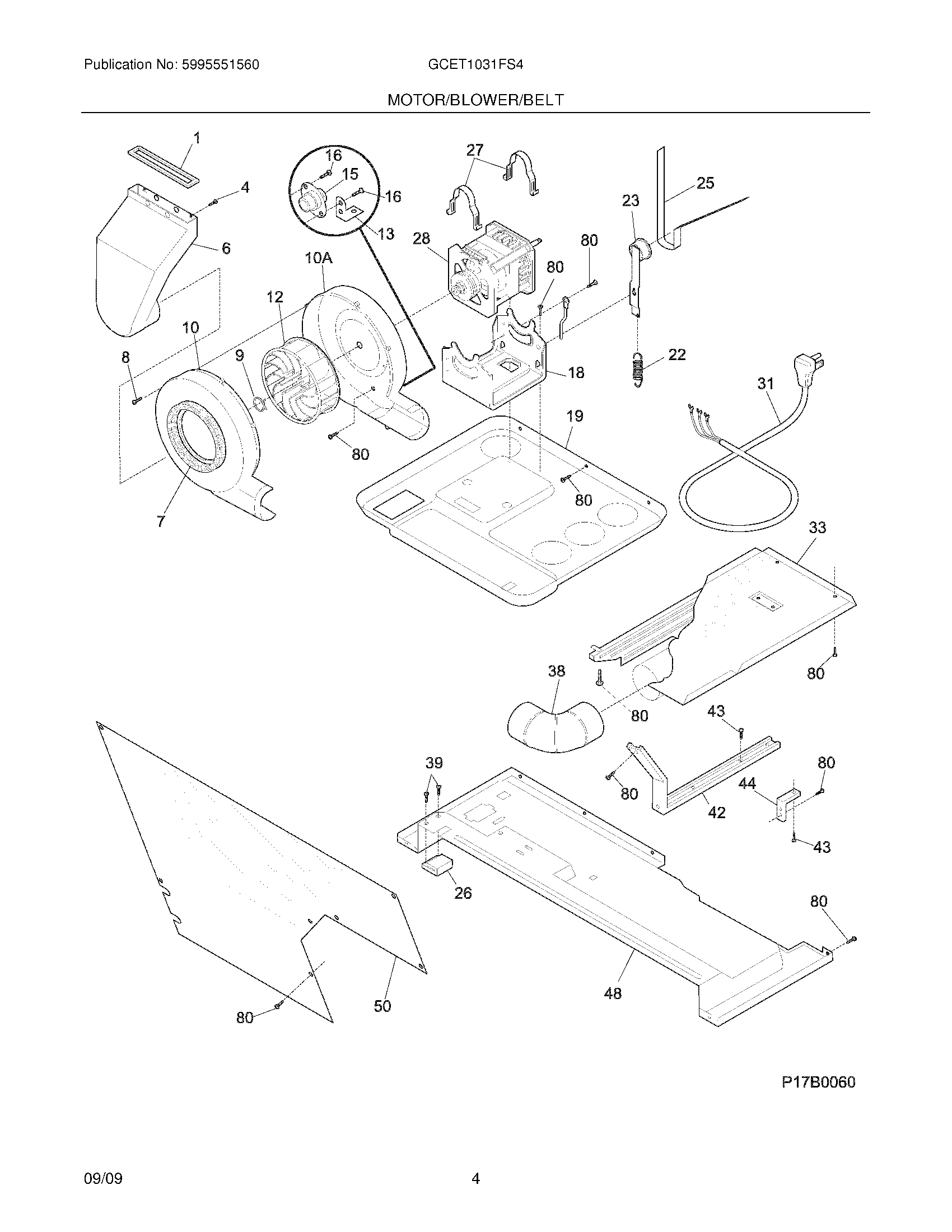

GCET1031FS4 05 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	134101400 Frigidaire Dryer Kit Terminal Block
NI	WCI 134723000
1	131295200 Frigidaire Seal
4	131362400 Frigidaire Fastener
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10A	137551800 Frigidaire Housing
10	5304475309 Frigidaire Housing
12	BLOWER WHEEL
13	WCI 134608400
15	131298300 Frigidaire Thermostat Control
16	131243700 Frigidaire Screw
18	CRADLE & STUD
19	WCI 134613501
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
26	BLOCK-SUPPORT
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	WCI 134725000
33	WCI 131731400
38	ELBOW
39	131205100 Frigidaire Screw
42	WCI 5304439185
43	SCREW 12-24 X .63 HEX HD
44	3204326 Frigidaire Bracket Assembly
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
80	131168200 Frigidaire Dryer Screw
