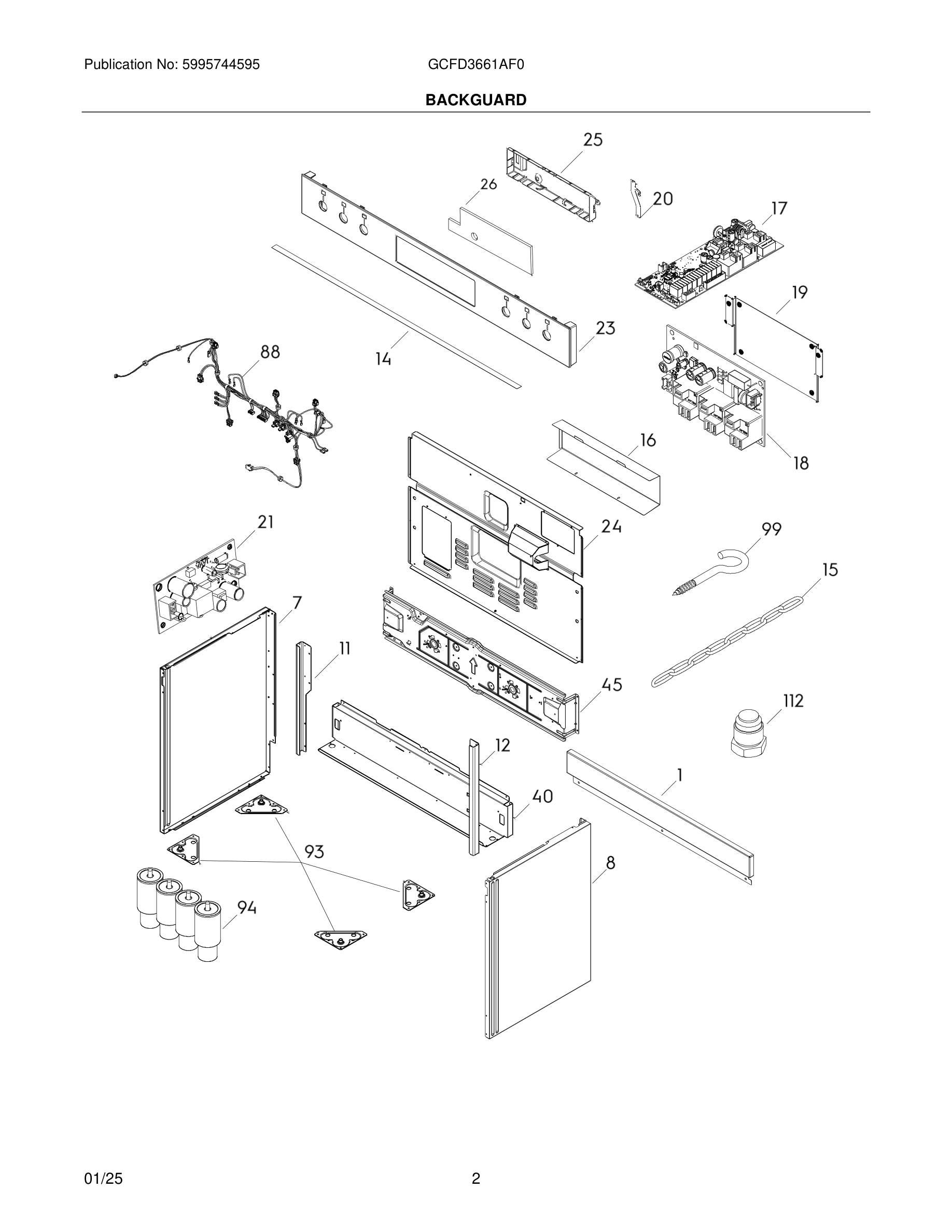

GCFD3661AF0 03 – BACKGUARDadmin2025-04-26T09:28:29+00:00GCFD3661AF0 03 – BACKGUARD
Products
| Position | Product |
|---|
| * | Harness, wiring, MACS to UI |
| 1 | Cover, convection fan, 1 |
| 7 | Panel, arctic, RH |
| 8 | Panel, arctic, LH |
| 11 | Bracket, reinforcement, LH |
| 12 | Bracket, reinforcement, RH |
| 14 | Gasket, control panel |
| 15 | Chain, anti-tilt |
| 16 | Bracket, counterweight |
| 17# | 5304533762 Frigidaire PC Board |
| 18# | 5304533763 Frigidaire PC Board |
| 19 | Bracket, mounting, joey board |
| 20 | Bracket, earth C/P |
| 21# | Board, backlit, knob choke |
| 23 | Control Panel, assembly |
| 24 | Panel Assembly, back, gas vulcan |
| 25 | 5304523582 Frigidaire Housing |
| 26 | Insulation, glassfiber |
| 40 | Brace, lower |
| 45 | Brace, oven, rear |
| 56*# | Controller, dual, PUX |
| 88# | Harness, wiring, main dual |
| 93 | FOOT |
| 94 | Foot, plastic pack, silver |
| 99 | Hook, 4.2x60 |
| 112 | Manifold, plug |
