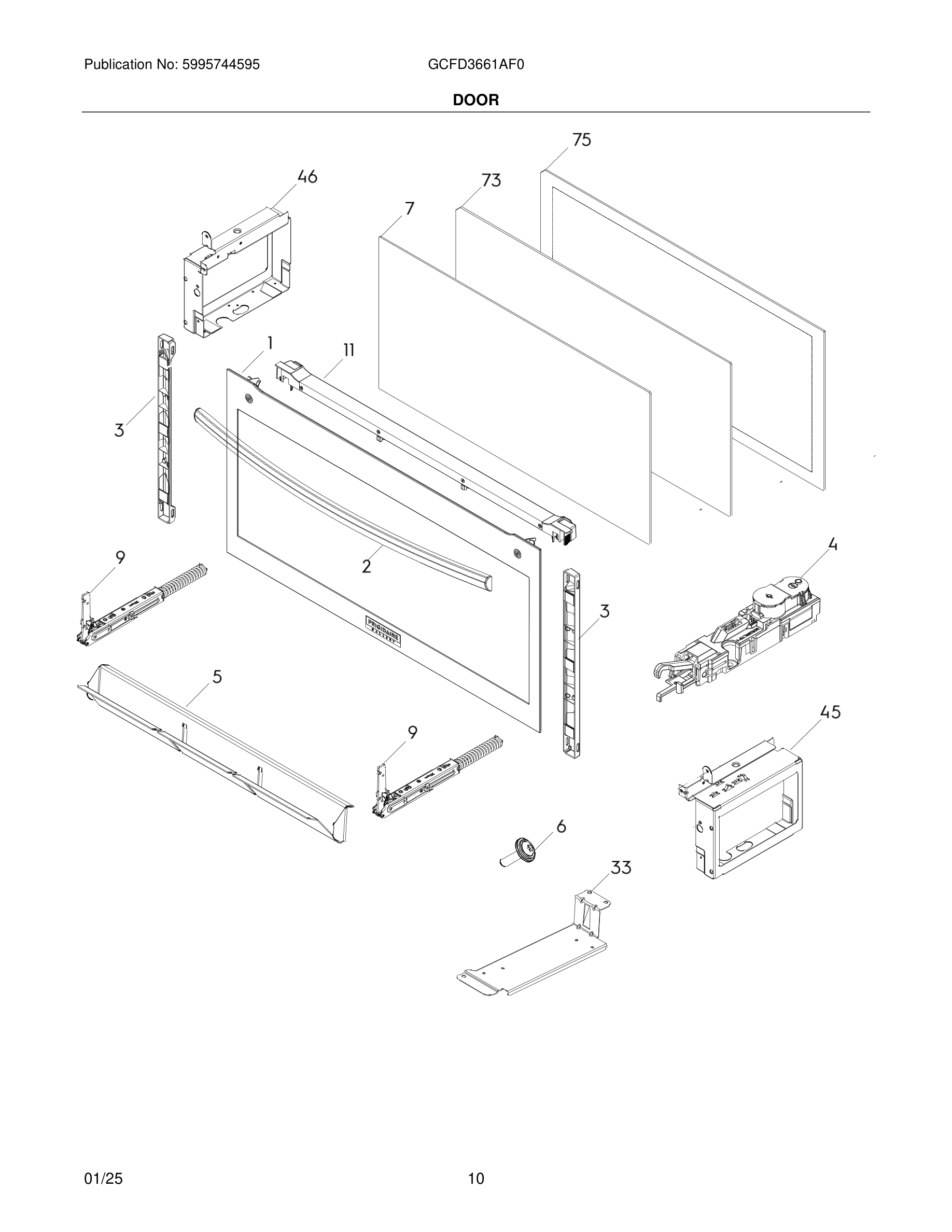

| * | Screw, PH2 HEX 1/4, M4 x 5, black, door hinge |
| 1 | Door, complete, stainless |
| 2 | Handle, door, assembly |
| 3 | TRIM |
| 4# | Door, lock, global |
| 5 | Spacer, door glass |
| 6 | Screw, T20 PAN, m4 x 16, handle |
| 7 | Glass, inner door |
| 9 | HINGE |
| 11 | Trim, door vent, top |
| 33 | Bracket, door lock, mount |
| 45 | Hinge, receiver, RH |
| 46 | Hinge, receiver, LH |
| 73 | Glass, door, mid |
| 75 | GLASS |
