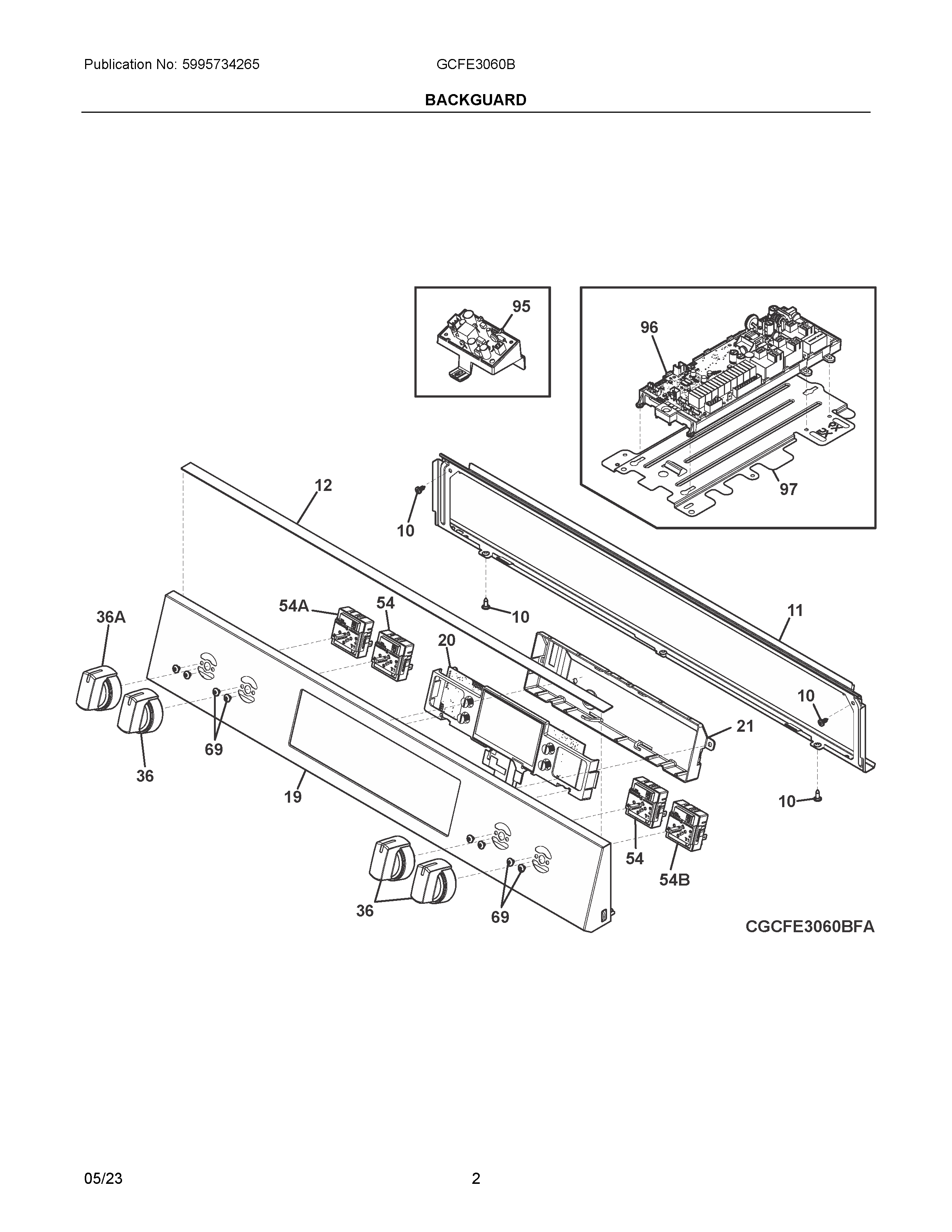

GCFE3060BDA 02 – BACKGUARDadmin2025-04-26T09:30:22+00:00GCFE3060BDA 02 – BACKGUARD
Products
| Position | Product |
|---|
| NI | HARNESS |
| NIA | STANDOFF, HARNESS, PLASTIC |
| NI | 5304529016 Frigidaire Harness Assembly |
| NI | 5304535366 Frigidaire Harness |
| NIA | SCREW |
| NIA | WCI 5304528293 |
| 10 | 387856311 Frigidaire Screw |
| 11 | 5304528295 Frigidaire Bracket |
| 12 | SEAL |
| 19 | CONTROL PANEL |
| 20 | CONTROLLER, ELECTRONIC, OVEN, UI730 |
| 21 | 5304535290 Frigidaire Housing |
| 36 | KNOB, INFINITE SWITCH, BLACK STAINLESS, SINGLE |
| 36A | KNOB, INFINITE SWITCH, BLACK STAINLESS, DUAL |
| 54B | 5304522965 Frigidaire Switch Assembly |
| 54 | 5304522966 Frigidaire Switch |
| 54A | 5304522918 Frigidaire Oven Surface Element Switch |
| 69 | SCREW, TRUSS, 8-32 X 17.65 |
| 95 | 5304534730 Frigidaire PC Board |
| 96 | 5304534719 Frigidaire Pc Board |
| 97 | BRACKET, OVC BOARD |
