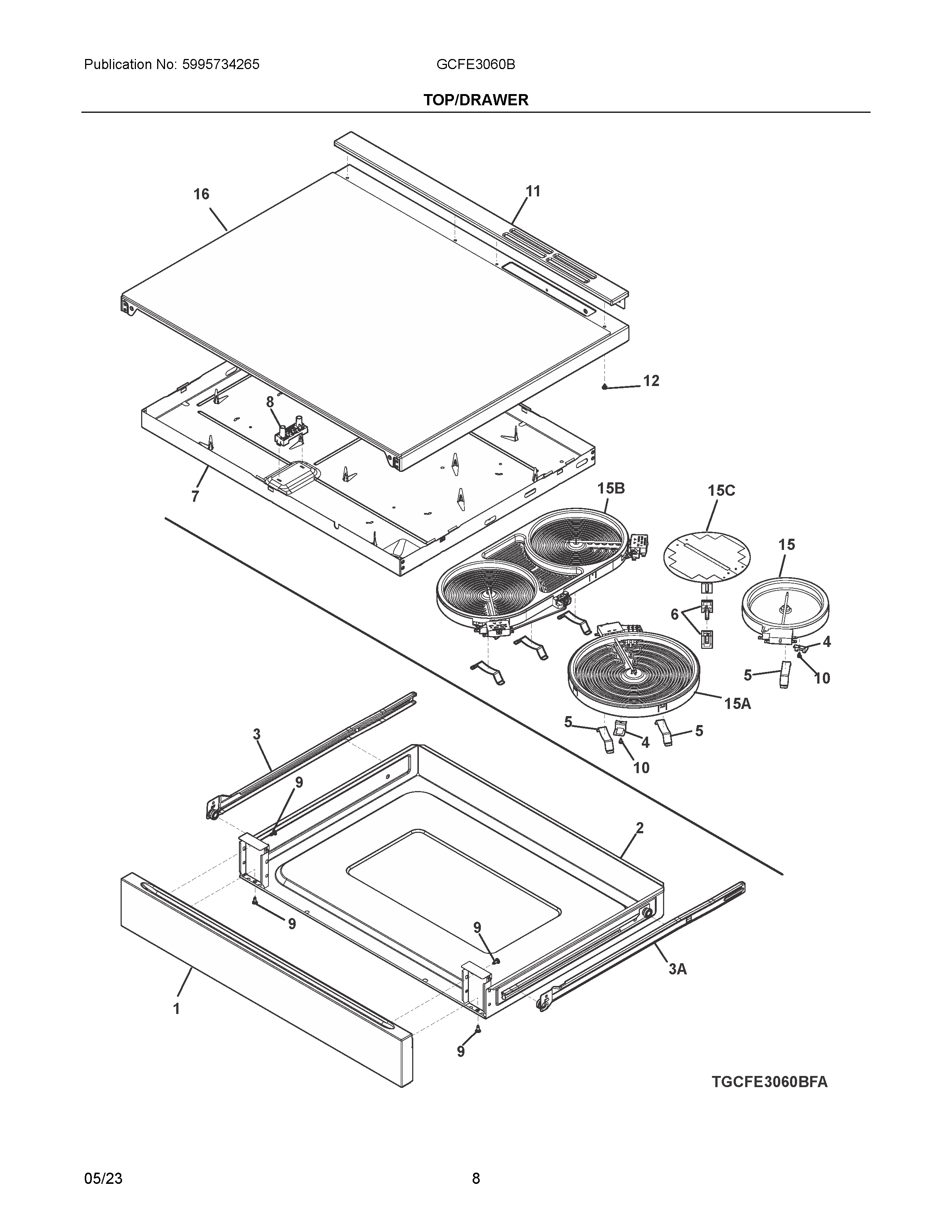

GCFE3060BDA 04 – TOP/DRAWER

GCFE3060BDA 04 – TOP/DRAWER

Written by

in

GCFE3060BDA 04 – TOP/DRAWER

Products

PositionProduct
NIHARNESS, WIRING, SURFACE
NI5304526496 Frigidaire Harness
NI387856311 Frigidaire Screw
15304528224 Frigidaire Panel
25304528242 Frigidaire Assembly Drawer
35304526306 Frigidaire Glide
3A5304526307 Frigidaire Glide
4387683300 Frigidaire Bracket
5SPRING, ELEMENT SUPPORT
6CLIP, SPRING, ELEMENT
7BURNER BOX
8INDICATOR-LIGHT 250
95304526533 Frigidaire Screw
10SCREW
115304533957 Frigidaire Trim
12SCREW, M4.2X7X1.06, BLACK
15B5304528733 Frigidaire Element
15CELEMENT,RADIANT,100W,WARMER
15A316530001 Frigidaire Oven Element
15318178110 Frigidaire Oven Range 6" Surface Element
165304528694 Frigidaire Smoothtop
