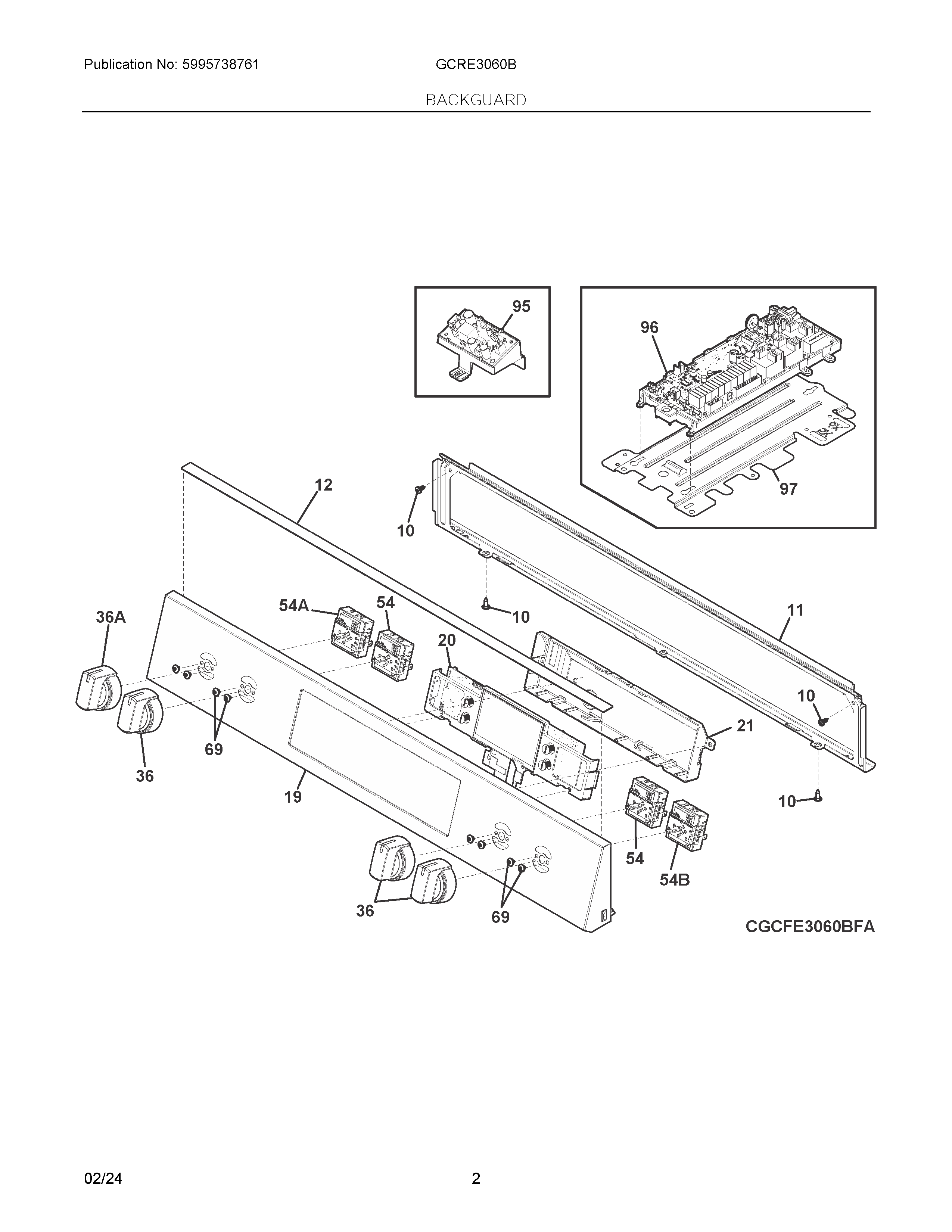

GCFE3060BFB 02 – BACKGUARD

Products

PositionProduct
NI5304535366 Frigidaire Harness
NIASTANDOFF, HARNESS, PLASTIC
NIHARNESS-ENERGY REGULATOR 5S, * #
NI5304529016 Frigidaire Harness Assembly
NIAWCI 5304528293
10387856311 Frigidaire Screw
115304528295 Frigidaire Bracket
12SEAL
195304535365 Frigidaire Control Panel
20CONTROLLER, ELECTRONIC, OVEN, UI730
215304535290 Frigidaire Housing
36AKNOB, INFINITE SWITCH, DUAL
365304528709 Frigidaire Knob
54A5304522918 Frigidaire Oven Surface Element Switch
54B5304522965 Frigidaire Switch Assembly
545304522966 Frigidaire Switch
69SCREW, TRUSS, 8-32 X 17.65
955304534730 Frigidaire PC Board
965304534719 Frigidaire Pc Board
97BRACKET, OVC BOARD
