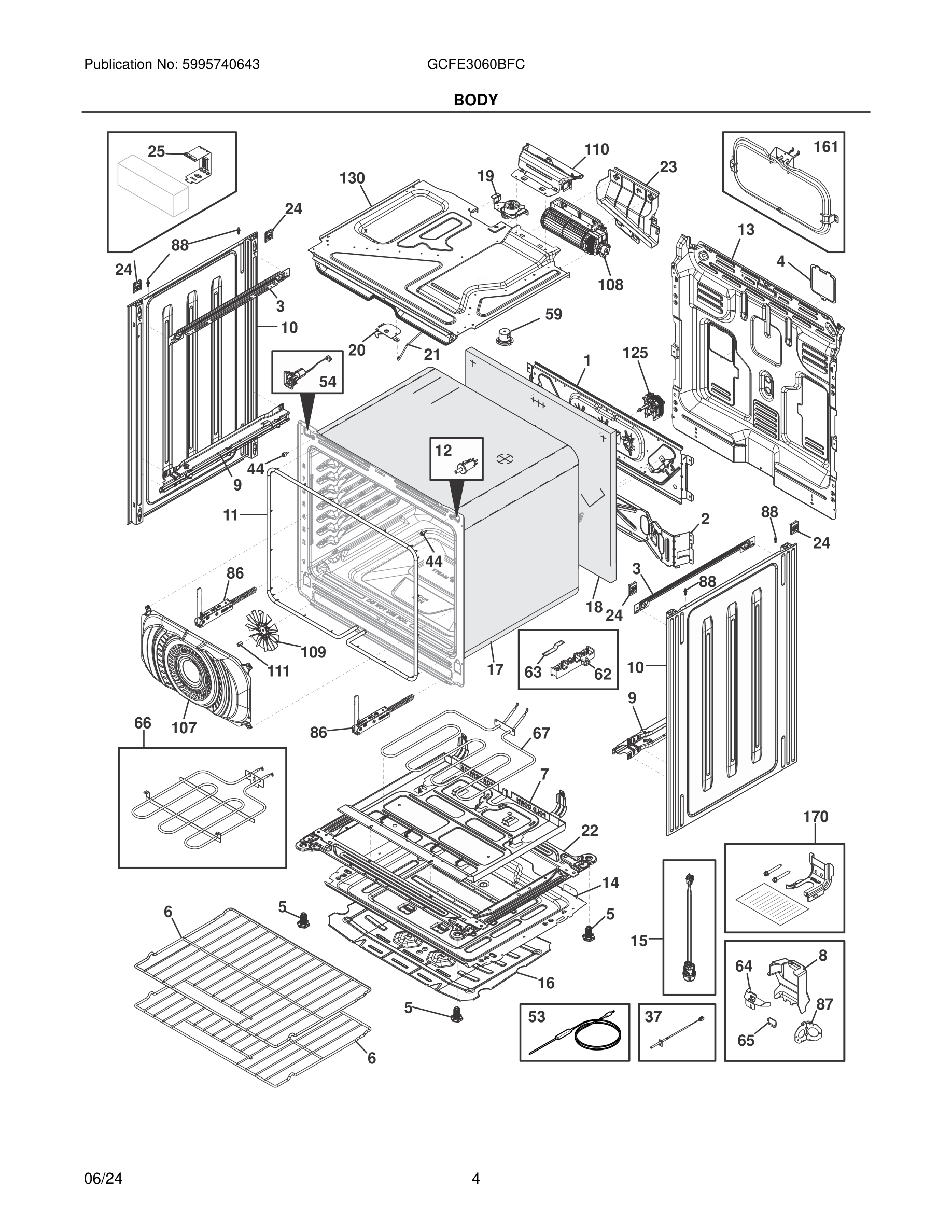

GCFE3060BFC 05 – BODY

GCFE3060BFC 05 – BODY

Written by

in

GCFE3060BFC 05 – BODY

Products

PositionProduct
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
65304536394 Frigidaire Rack-Flat Peregrine
7TRAY, HIDDEN BAKE
85304528549 Frigidaire Cover
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304528053 Frigidaire Seal
12#SWITCH-DOOR OV LIGH
13*WCI 5304533495
13SHIELD
14SHIELD, INSULATION, LOWER
15#5304533411 Frigidaire Lamp Assembly
16SHIELD, DRAWER STORAGE, FULL
17INSULATION, OVEN WRAPPER
18INSUALTION, OVEN BACK
19#5304528260 Frigidaire Motor
205304528257 Frigidaire Latch Assembly
21ROD
22BASE RAIL, ASSEMBLY
235304533976 Frigidaire Guard
245304534653 Frigidaire Clip Assembly
25BRACKET, COUNTERWEIGHT
37#5304533448 Frigidaire Probe
44316517600 Frigidaire Oven Spacer
53#807822611 Frigidaire Probe
54#RECEPTACLE
59TUBE, OVEN VENT
62*316001017 Frigidaire Screw
62*316205500 Frigidaire Oven Nut
62#5303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
645304528551 Frigidaire Shield
65CLIP, POWER CORD
66*387856311 Frigidaire Screw
66#ELEMENT BROIL
67#5304535239 Frigidaire Element-Hidden Bk 2
86*5304526532 Frigidaire Screw
86HINGE
87BRACKET, POWER CORD
88PIN, GUIDE
1075304526365 Frigidaire Cover
108#5304528167 Frigidaire Blower Assembly
1095304525455 Frigidaire Blade
110WCI 5304528418
111561231207 Frigidaire Nut
125#5304526375 Frigidaire Motor
130DUCT ASSEMBLY
