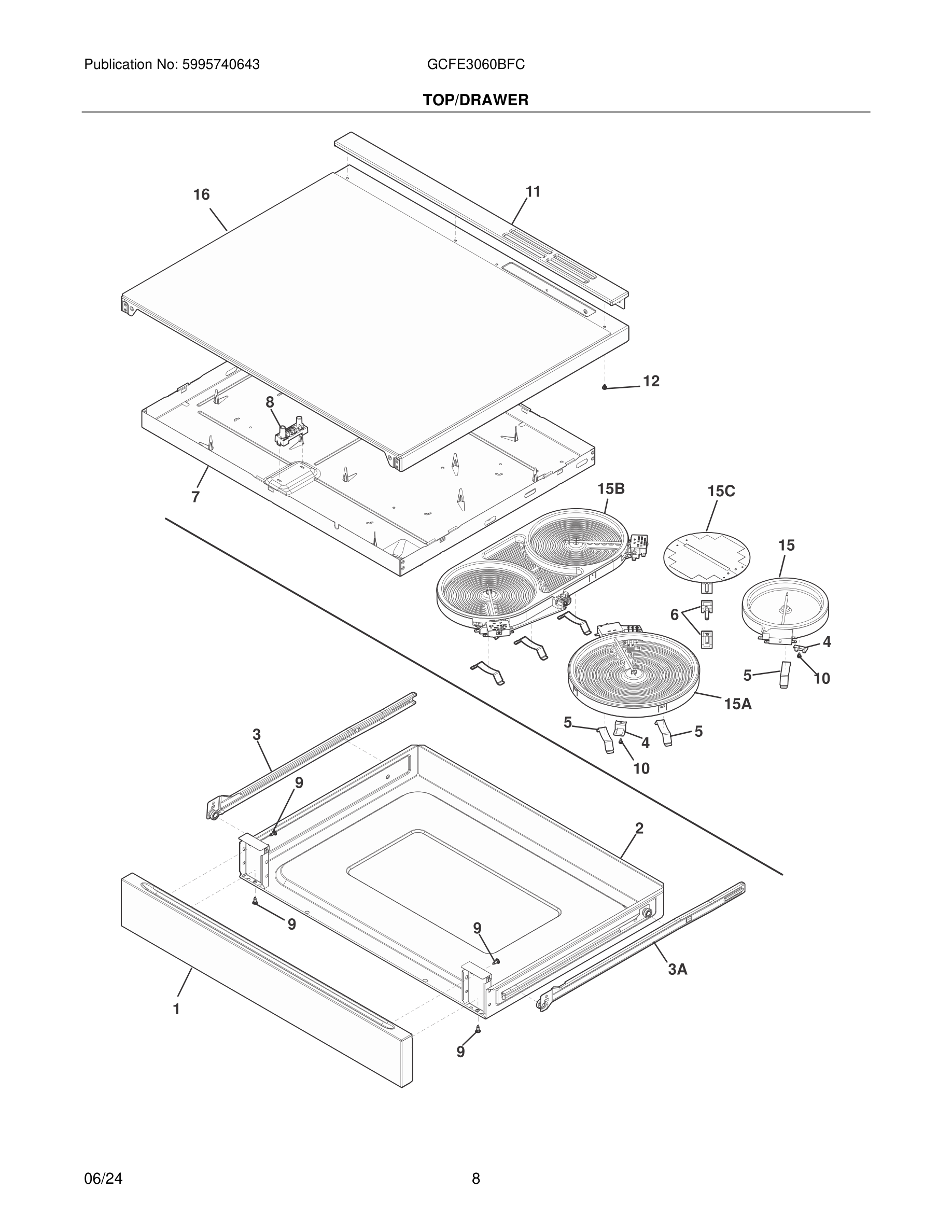

GCFE3060BFC 09 – TOP/DRAWER

GCFE3060BFC 09 – TOP/DRAWER

Written by

in

GCFE3060BFC 09 – TOP/DRAWER

Products

PositionProduct
*#HARNESS, WIRING, SURFACE
*316089500 Frigidaire Oven Screw
*387856311 Frigidaire Screw
15304528223 Frigidaire Panel Assembly
25304528242 Frigidaire Assembly Drawer
3A5304526307 Frigidaire Glide
35304526306 Frigidaire Glide
4387683300 Frigidaire Bracket
5SPRING, ELEMENT SUPPORT
6CLIP, SPRING, ELEMENT
7BURNER BOX
8#INDICATOR-LIGHT 250
95304526533 Frigidaire Screw
10SCREW
115304533957 Frigidaire Trim
12SCREW, M4.2X7X1.06, BLACK
15B#5304528733 Frigidaire Element
15C#ELEMENT,RADIANT,100W,WARMER
15A#316530001 Frigidaire Oven Element
15#318178110 Frigidaire Oven Range 6" Surface Element
165304528694 Frigidaire Smoothtop
