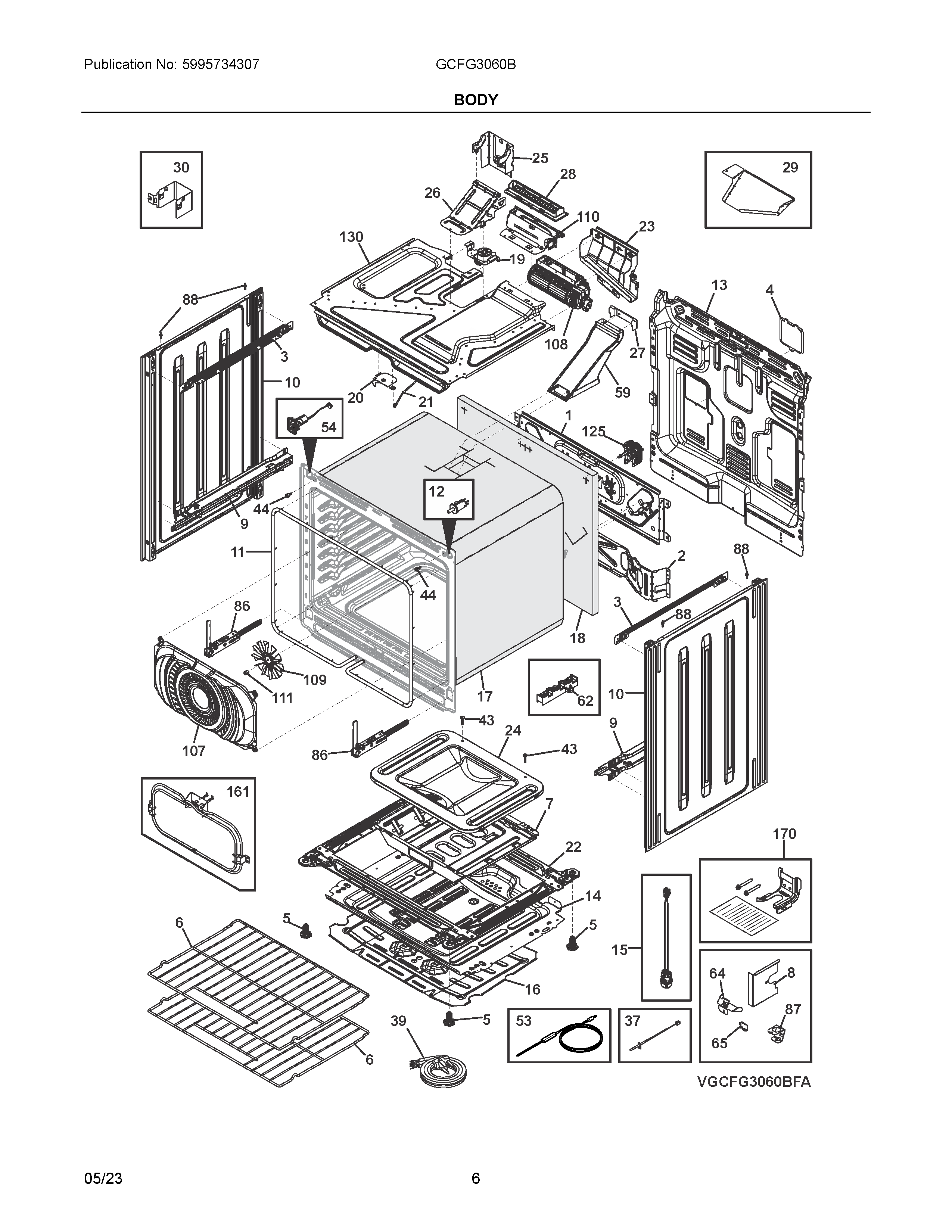

GCFG3060BDA 04 – BODY

GCFG3060BDA 04 – BODY

Written by

in

GCFG3060BDA 04 – BODY

Products

Position	Product
NI	WCI 387872717
NI	SCREW, T20,
NI	WCI 5304533472
NIA	WCI 5304533495
NI	SCREW, SELF DRILL, M3.5 X 9.5
NIA	5304526532 Frigidaire Screw
NI	5304526533 Frigidaire Screw
NI	387856311 Frigidaire Screw
NI	STANDOFF, HARNESS, PLASTIC
NI	5304535287 Frigidaire Harness
NIB	316205500 Frigidaire Oven Nut
NI	5304535285 Frigidaire Harness
NIA	316001017 Frigidaire Screw
NIA	WCI 5304533896
1	BRACKET
2	BRACKET, COMPONENTS, LOWER
3	5304526493 Frigidaire Bracket
4	5304528328 Frigidaire Cover
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	5304536394 Frigidaire Rack-Flat Peregrine
7	5304534661 Frigidaire Box
8	5304533923 Frigidaire Cover Assembly
9	5304528546 Frigidaire Receptacle
10	5304526334 Frigidaire Panel
11	5304528053 Frigidaire Seal
12	808136601 Frigidaire Oven Switch
13	SHIELD
14	SHIELD, INSULATION, LOWER
15	5304533411 Frigidaire Lamp Assembly
16	SHIELD, DRAWER STORAGE, FULL
17	INSULATION
18	INSULATION
19	5304528260 Frigidaire Motor
20	5304528257 Frigidaire Latch Assembly
21	ROD, DOOR LATCH
22	BASE RAIL, ASSEMBLY
23	5304533976 Frigidaire Guard
24	5304535291 Frigidaire Bottom
25	SHIELD, HEAT, REAR
26	SHIELD, HEAT, FRONT
27	COVER, DUCT
28	DIVERTER, EXHAUST
29	SHIELD, DIVERTER
30	SHIELD, BROIL, REAR
37	5304533901 Frigidaire Probe
39	5304534691 Frigidaire Cord
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
53	807822611 Frigidaire Probe
54	RECEPTACLE
59	FLUE, ASSEMBLY
62	5303935271 Frigidaire Oven Terminal Block
64	5304528551 Frigidaire Shield
65	CLIP, POWER CORD
86	HINGE
87	BRACKET, POWER CORD
88	PIN, GUIDE
107	5304526365 Frigidaire Cover
108	5304528167 Frigidaire Blower Assembly
109	5304525455 Frigidaire Blade
110	DUCT ASSEMBLY, EXHAUST, COOLI
111	561231207 Frigidaire Nut
125	5304528165 Frigidaire Motor
130	WCI 5304534670
161	5304528164 Frigidaire Element
170	316112010 Frigidaire Anti Tip Kit
