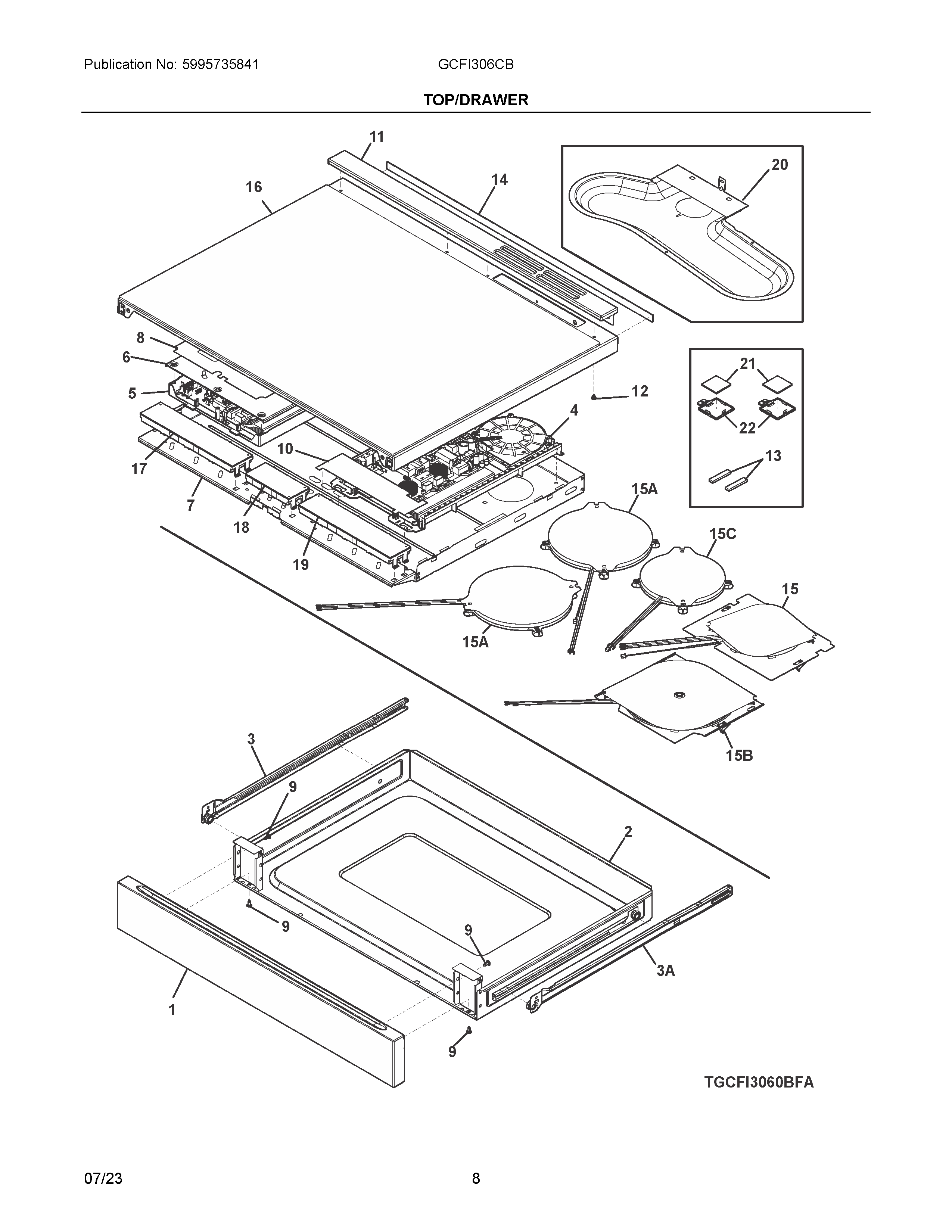

GCFI306CBFA 04 – TOP/DRAWER

Products

Position	Product
NI	316001017 Frigidaire Screw
NI	SCREW
NI	5304533959 Frigidaire Harness
NI	5304533972 Frigidaire Harness Assembly
NI	HARNESS, WIRING, FERRITE GROUND
NI	HARNESS
NI	387856311 Frigidaire Screw
1	5304528223 Frigidaire Panel Assembly
2	5304528242 Frigidaire Assembly Drawer
3A	5304526307 Frigidaire Glide
3	5304526306 Frigidaire Glide
4	CONTROL MODULE
5	5304533955 Frigidaire Control Module
6	5304528719 Frigidaire Support
7	5304528600 Frigidaire Box
8	5304533973 Frigidaire Shield
9	5304526533 Frigidaire Screw
10	5304533978 Frigidaire Deflector Assembly
11	5304533957 Frigidaire Trim
12	SCREW, M4.2X7X1.06, BLACK
13	SPACER, COOKTOP BOX
14	SEAL
15A	357226373 Frigidaire Element
15B	387761255 Frigidaire Element Assembly
15C	ELEMENT
15	387404760 Frigidaire Range Element Assembly
16	5304528693 Frigidaire Smoothtop Cooktop
17	5304536435 Frigidaire Controller
18	5304536436 Frigidaire Controller
19	5304536437 Frigidaire Controller
20	DUCT, AIR INTAKE
21	SHIELDING, FERRITE BAR
22	BRACKET, FERRITE SHIELD
