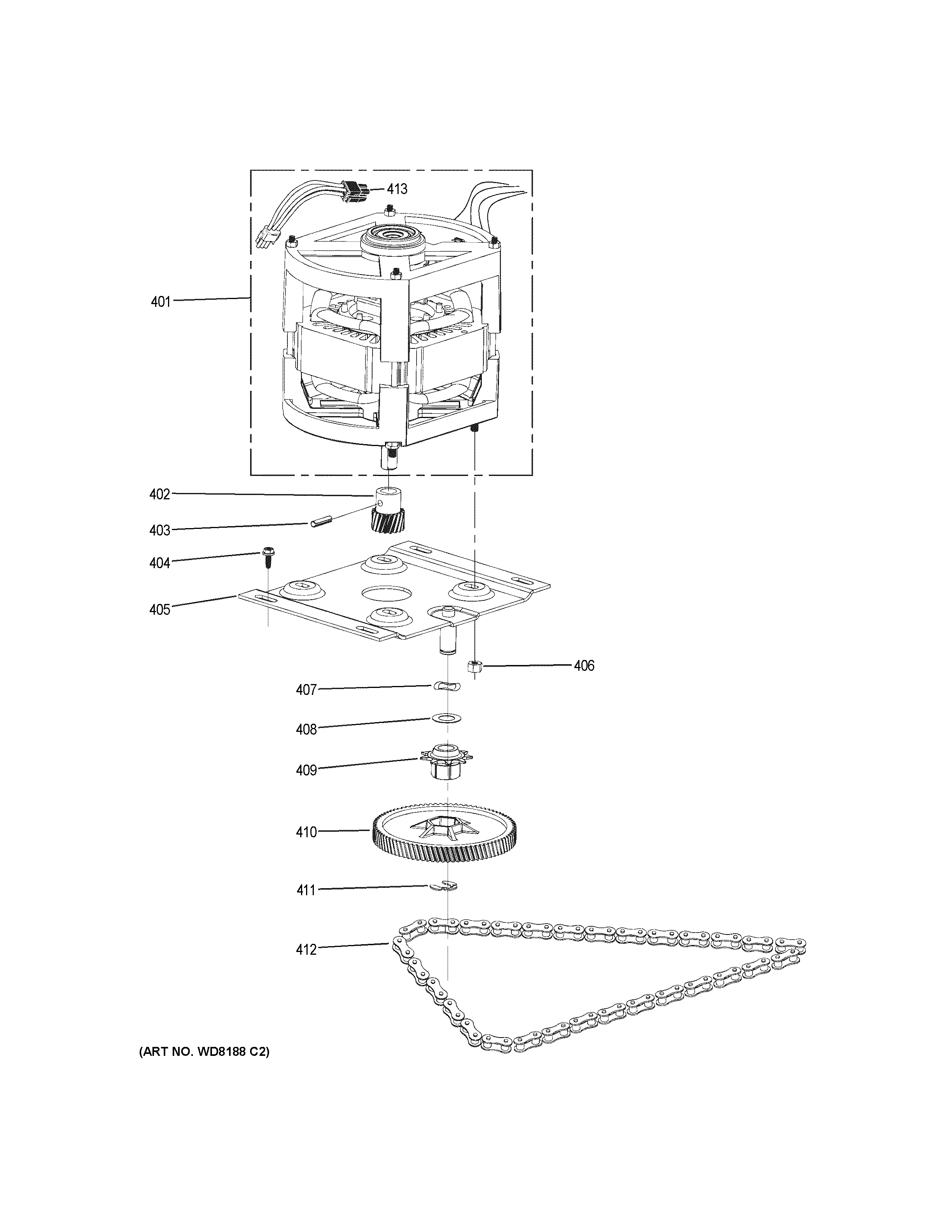

GCG1700L0II MOTOR & DRIVE PARTS

GCG1700L0II MOTOR & DRIVE PARTS

Written by

in

GCG1700L0II MOTOR & DRIVE PARTS

Products

PositionProduct
401MOTOR COMPACTOR
402GEAR MOTOR
403WC01X20148 GE Compactor Slotted Spring Pin
404SCREW 1/4"-20
405WC17X20144 GE Shaft Plate
406WC01X10015 GE Compactor Fixing Nut
407WC01X20157 GE Compactor Wave Washer
408WC01X10017 GE Compactor Teflon Washer
409SPROCKET WHEEL
410DRIVE GEAR
411WC01X20107 GE Compactor Clip Ring
412WC22X20106 GE Chain Assembly
413WC21X20118 GE Harness Jumper
