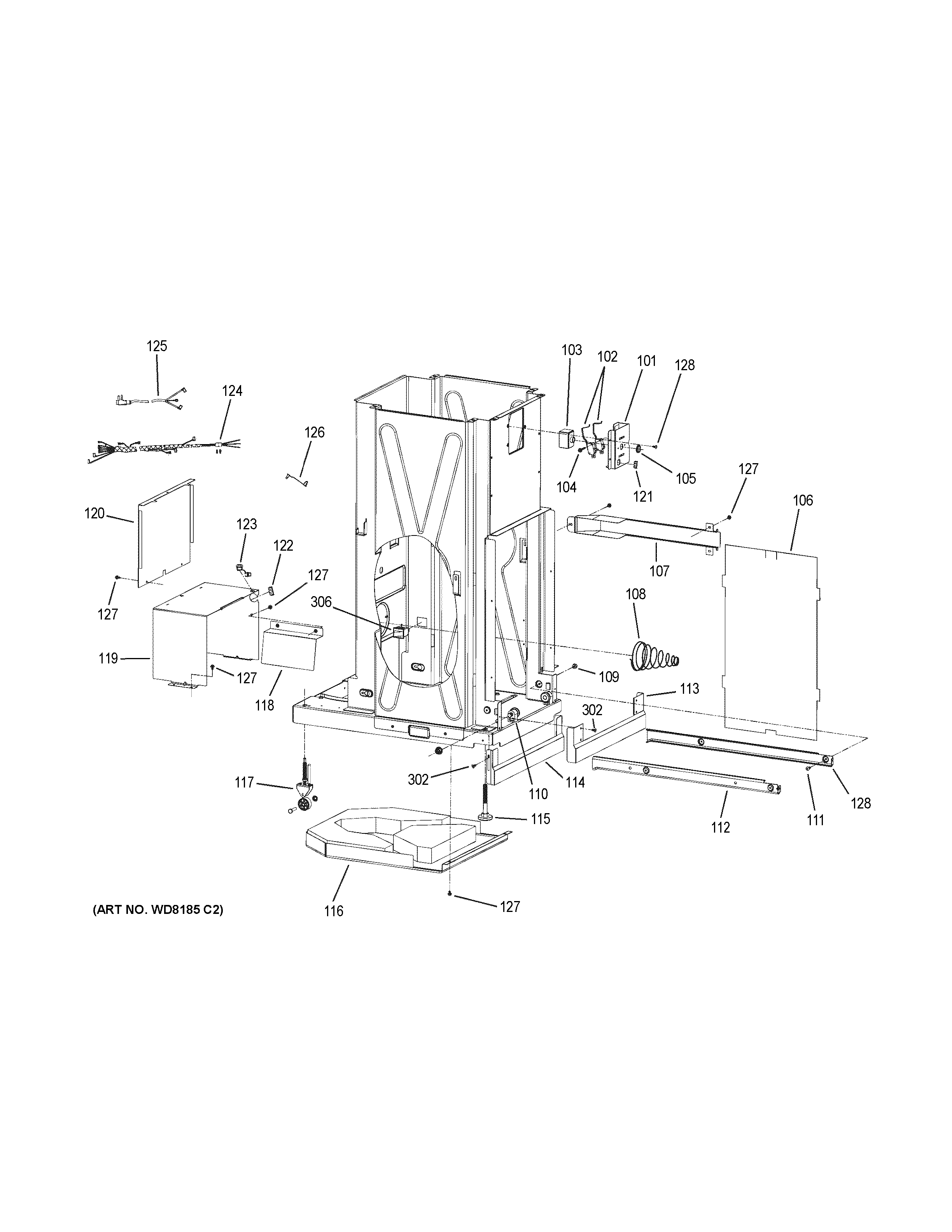

GCG1700R0II FRAME PARTS

Products

Position	Product
101	WC02X20104 GE Compactor Bracket Switch
102	WC21X20249 GE Compactor Return Switch
103	ON-OFF SWITCH
104	WC01X20142 GE Screw
105	NUT RING
106	BACK PANEL
107	PANEL WIRE
108	WC09X20115 GE Compactor Frame Spring
109	WC01X10010 GE Compactor Nut
110	WC17X20084 GE Trash Compactor Roller Frame
111	WC17X10003 GE Compactor Right Hand Frame Slide
112	FRAME SLIDE LH
113	WC17X20154 GE Compactor Toekick
114	WC17X10008 GE Compactor Adjustable Panel BB
115	WC01X10011 GE Leveling Leg
116	WC25X20103 GE Base Tray
117	WC02X20158 GE Compactor Wheel Assembly
118	SHIELD SLIDE TRACK
119	MOTOR COVER
120	REAR COVER MOTOR
121	WC01X20048 GE Bushing Snap
122	WC02X20147 GE Snap Bushing
123	WC01X20044 GE Compactor Strain Relief Bushing
124	WC12X10005 GE Compactor Power Control Wire
125	WC12X20135 GE Compactor Power Cord
126	WIRE CLIP
127	SCREW ST4.2X10
128	WC01X20139 GE Compactor Screw
302	WC01X20047 GE Compactor Screw ST4.2X8
306	DOOR TILT SWITCH
