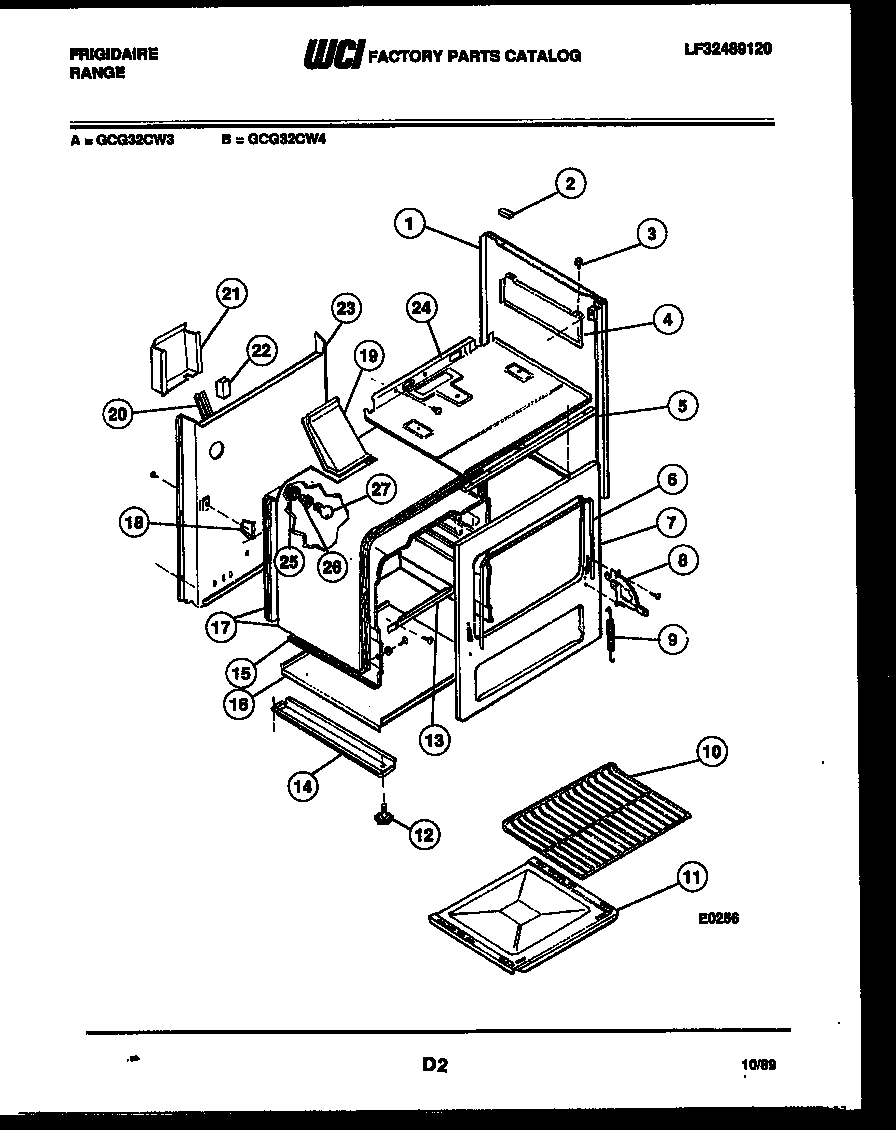

GCG32CL3 06 – BODY PARTS

Products

Position	Product
1	WCI 08014019
2	GROMMET MAIN TOP
3	GROMMET
4A	WCI 08011552
4	SHIELD – HEAT RH
5	SUPPORT CONTROL PNL
6	WCI 08008022
7	WCI 3017790
8A	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI 3204670
9	SPRING – OVEN DOOR
10	WCI 08068027
11	WCI 3018282
12	SCREW – LEVELING (4)
13	SUPPORT-OVEN BOTTOM
14	BASE RAIL
15	WCI 3018709
15B	WCI 3018711
15C	WCI 3018712
15A	WCI 3018710
16	BOTTOM – OVEN
17A	WCI 3017172
17	WCI 3017171
18	SUPPORT-REAR OVN (2)
19	WCI 3017173
20	BACK – MAIN
21	WCI 08008357
22	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
23	WCI 3013340
24	WCI 3017174
25	WCI 3051511
26	316116400 Frigidaire Oven Light Socket
27	316538904 Frigidaire Oven Lamp Light
