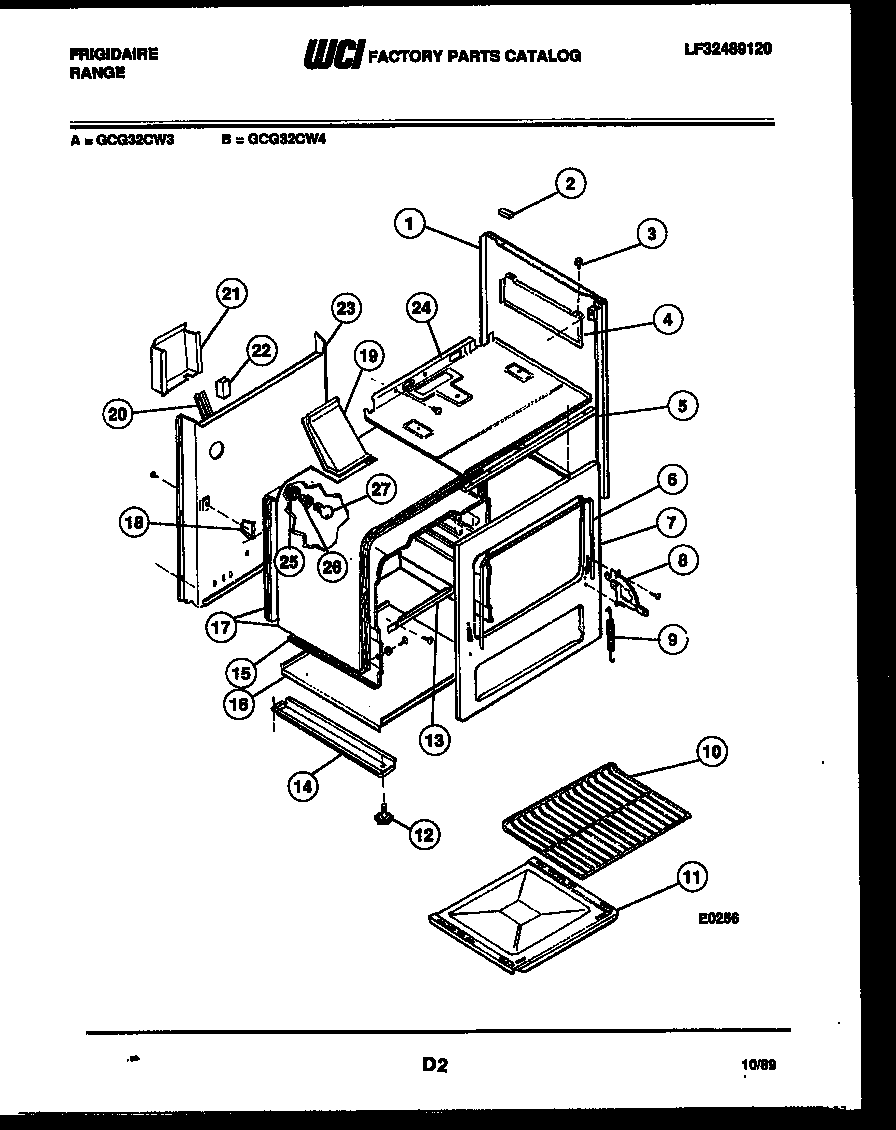

GCG32CW4 06 – BODY PARTS

Products

Position	Product
*13913	ANTI-TIP KIT
1	PANEL-BODYSIDE (WHITE) (2)
2	GROMMET MAIN TOP
3	GROMMET
4	SHIELD – HEAT RH
4A	WCI 08011552
5	SUPPORT CONTROL PNL
6	WCI 08008022
7	WCI 3205578
8	WCI 3204670
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING – OVEN DOOR
10	WCI 08068027
11	WCI 3018282
12	SCREW – LEVELING (4)
13	SUPPORT-OVEN BOTTOM
14	BASE RAIL
15C	WCI 3018712
15	WCI 3018709
15A	WCI 3018710
15B	WCI 3018713
16	BOTTOM – OVEN
17	WCI 3017171
17A	WCI 3017172
18	SUPPORT-REAR OVN (2)
19	WCI 3017173
20	BACK – MAIN
21	WCI 08008357
22	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
23	WCI 3013340
24	WCI 3017174
25	WCI 3051511
26	316116400 Frigidaire Oven Light Socket
27	316538904 Frigidaire Oven Lamp Light
