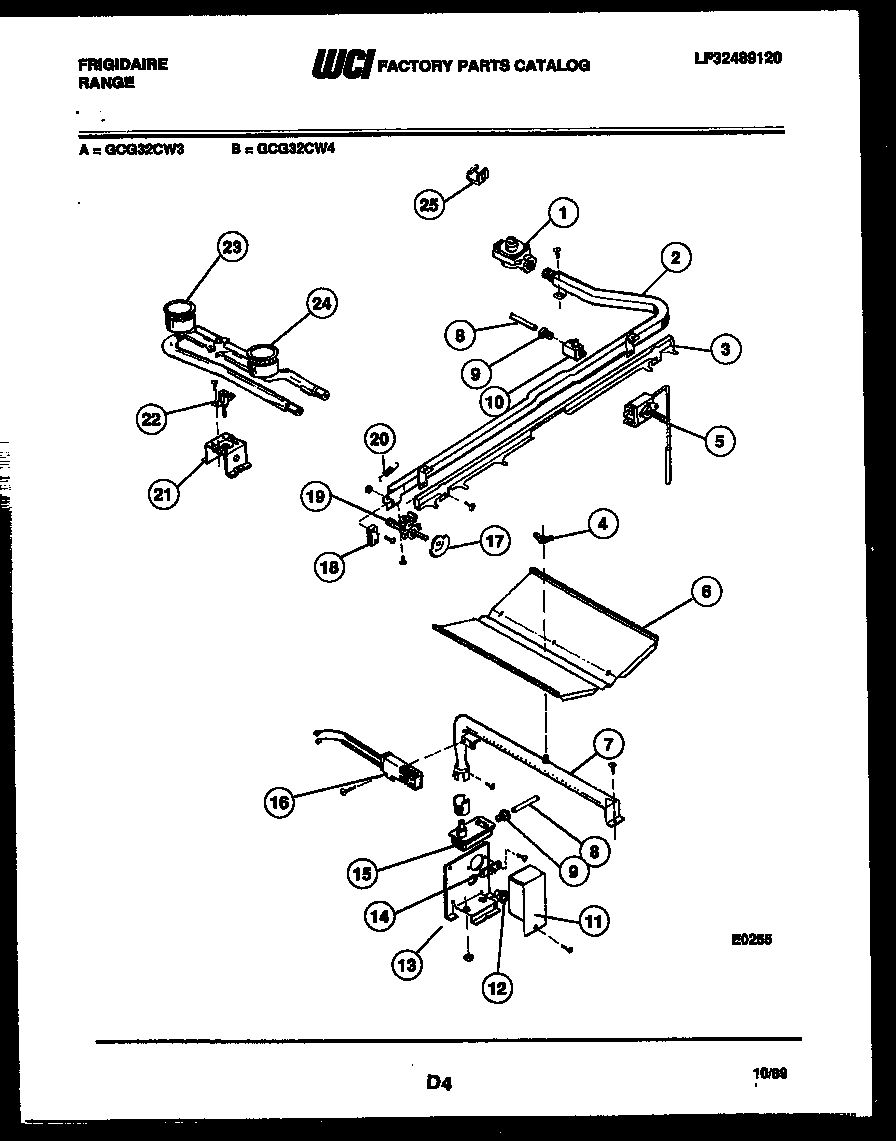

GCG32CW4 07 – BURNER, MANIFOLD AND GAS CONTROL

GCG32CW4 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GCG32CW4 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3WCI 08014021
4NUT – WING
5THERMOSTAT
6WCI 08007980
7WCI 3202752
8TUBE – 3/8 FEED
9WCI 08008363
10WCI 3131099
11WCI 08007986
12WCI 08008051
13SUPPORT-OVEN SAFETY VALVE
14WCI 08007985
15WCI 08009419
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17WCI 08008002
18WCI 08013925
19VALVE – TOP BURNER (4)
20WCI 3131096
21WCI 3203964
22IGNITER-TOP BURNER 36“
23BURNER – TOP REAR
24BURNER – TOP FRONT
25WCI 08013856
