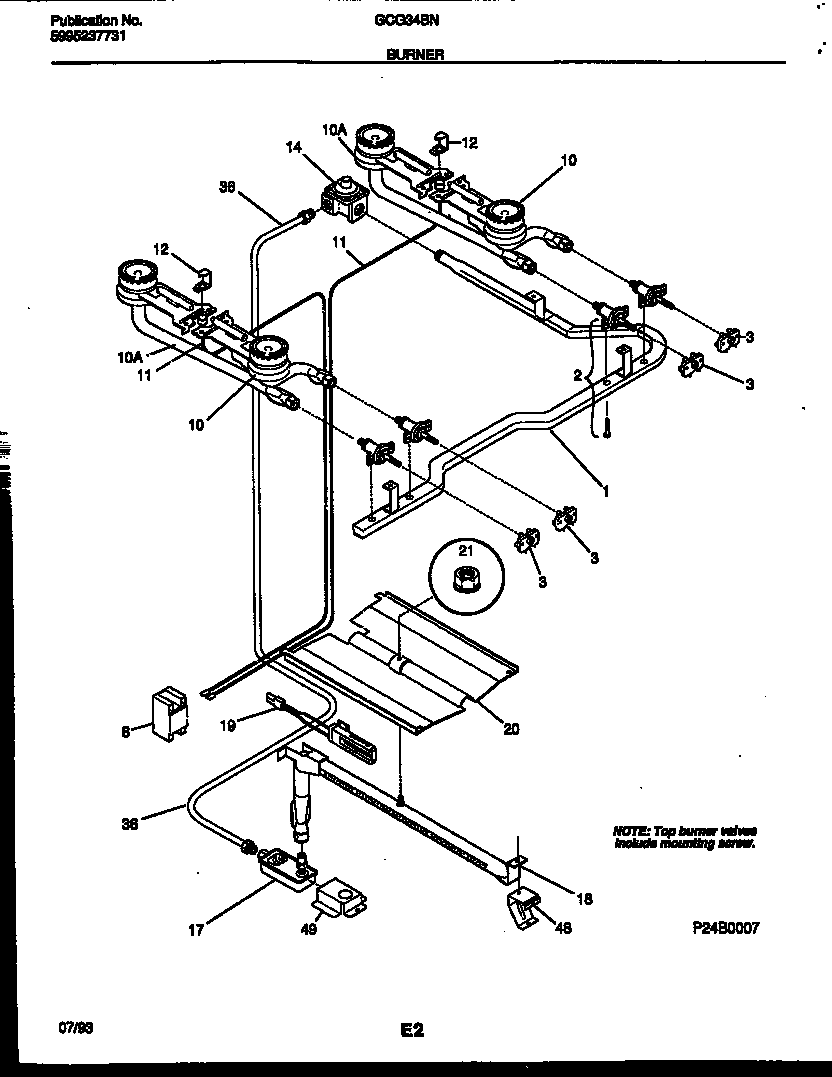

GCG34BNL7 03 – BURNER, MANIFOLD AND GAS CONTROL

GCG34BNL7 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GCG34BNL7 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303272435
2WCI 316031800
3SWITCH-IGNITER, (4)
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
105304506427 Frigidaire Oven Range Surface Burner (White)
10A5304506426 Frigidaire Oven Top Rear Burner
11IGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
14WCI 316054800
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
36WCI 3203458
48WCI 3018603
49BRKT.-VALVE
