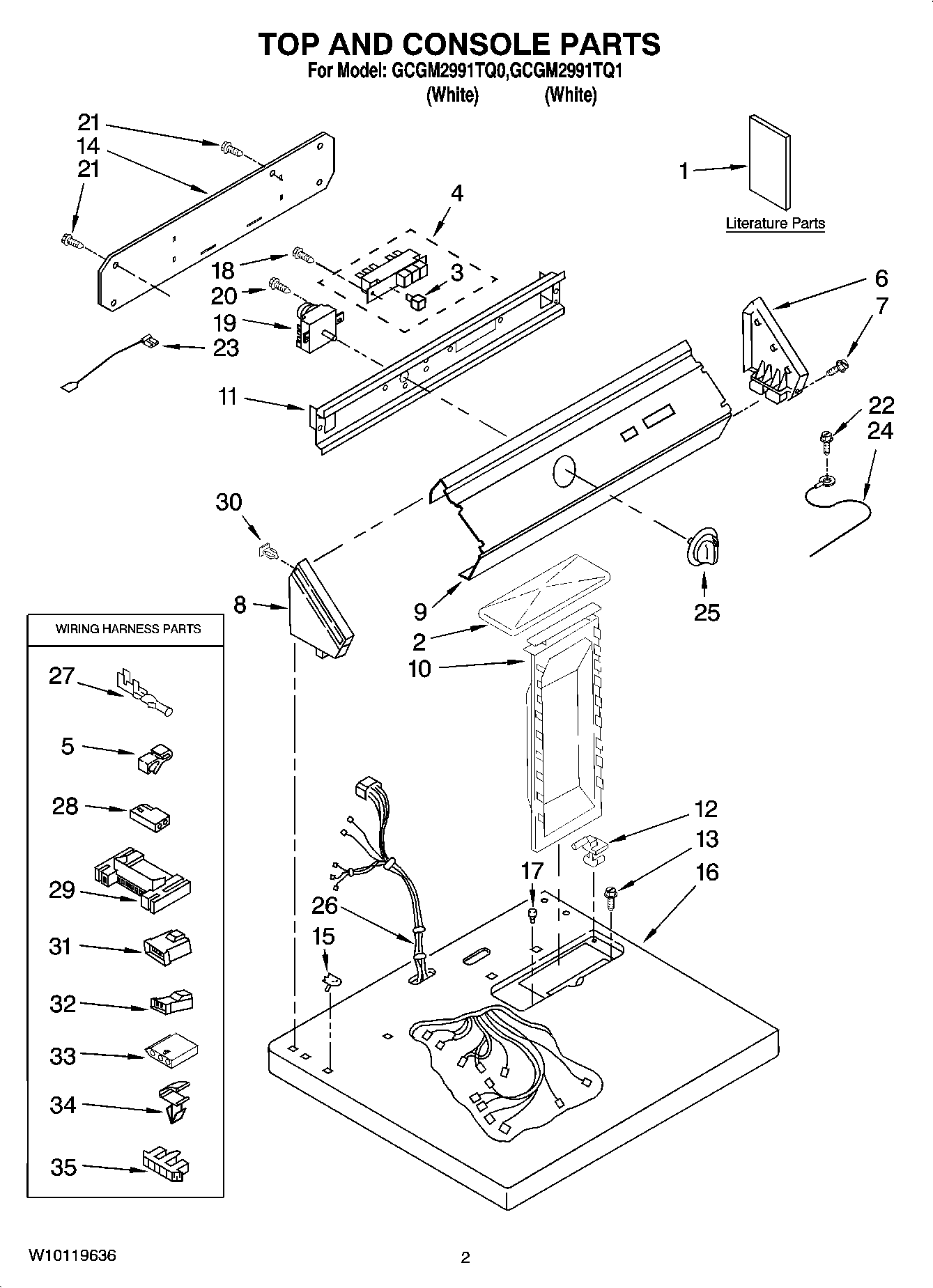

GCGM2991TQ1 01 – TOP AND CONSOLE PARTS

GCGM2991TQ1 01 – TOP AND CONSOLE PARTS

Written by

in

GCGM2991TQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care Guide
1Wiring Diagram
1Instructions, Installation
2Cover, Lint Screen
3SWITCH-PB
5W10113937 Whirlpool Clamp
6Cap, End (R.H.)
7WPW10109200 Whirlpool Screw
8W11686050 Whirlpool Drive Motor
9Control Panel
10WP349639 Whirlpool Lint Filter
11Bracket, Control
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
15WP357213 Whirlpool Hinge Stopper
16Top
17Bumper, Lint Lid
18WP489128 Whirlpool Refrigerator Screw
19TIMER
20WP90767 Whirlpool Screw
21WP693995 Whirlpool Screw
22WP3390631 Whirlpool Screw
23Wire, Jumper (Blue)
23Wire, Jumper (Violet)
24Wire, Ground
25Knob, Timer
26Harness, Wiring
27WP94614 Whirlpool Terminal
28Receptacle, Latching (2-Way) (Uses Terminal 94614)
293395683 Whirlpool Connector
30WP689559 Whirlpool Nut
31WP3403498 Whirlpool Connector
32WP3403499 Whirlpool Connector
333936144 Whirlpool Connector
34WP3394427 Whirlpool Clip
35Connector, Timer
