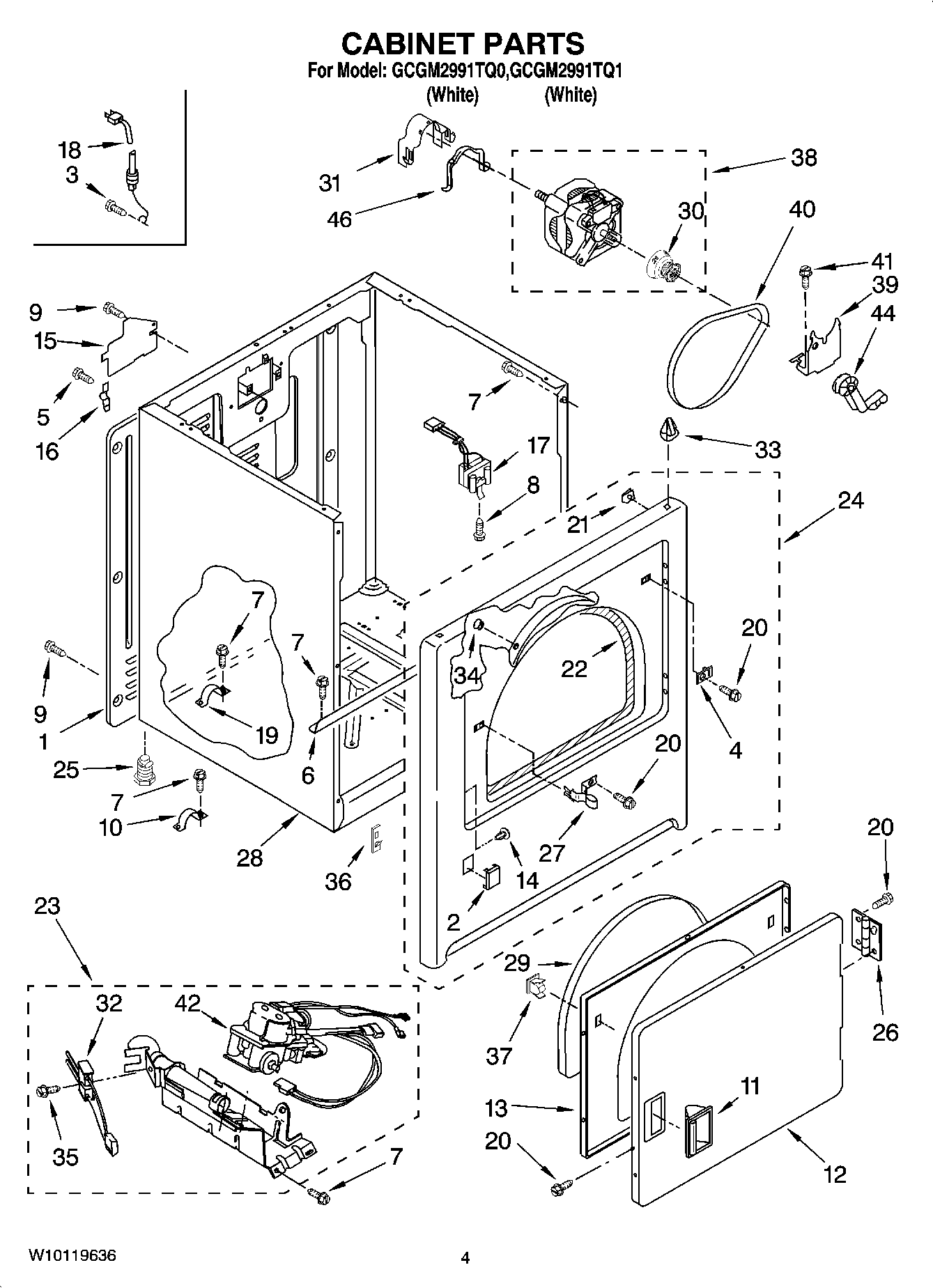

GCGM2991TQ1 02 – CABINET PARTS

Products

Position	Product
1	280043 Whirlpool Rear Panel
2	Plug, Front Panel (White)
3	W10850756 Whirlpool Screw
4	WP3403630 Whirlpool Plug
5	WP388326 Whirlpool Screw
6	Bracket, Cabinet
7	SCREW
8	WP3395530 Whirlpool Screw
9	WP693995 Whirlpool Screw
10	341029 Whirlpool Clamp
11	WP3405184 Whirlpool White Door Handle
12	W10861227 Whirlpool Door Assembly
13	WP3402341 Whirlpool Door
14	WP3404413 Whirlpool Plug
15	W11539855 Whirlpool Refrigerator Pump
16	WP8066217 Whirlpool Hinge
17	SWITCH-DOOR DRYER
18	W11628810 Whirlpool Power Cord
20	WP488627 Whirlpool Refrigerator Screw
21	WP98234 Whirlpool Nut
22	W11035878 Whirlpool Bearing and Seal
23	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
24	W10248059 Whirlpool Panel
25	49621 Whirlpool Leveling Feet
26	WPW10362431 Whirlpool Hinge Assembly
27	W11429589 Whirlpool Strike
28	8533643 Whirlpool Dryer White Cabinet
29	SEAL-DOOR DRYER
30	WP8066184 Whirlpool Dryer Motor Pulley
31	WP3404162 Whirlpool Clamp
32	279311 Whirlpool Dryer Flat Igniter with Bracket
33	WP18776 Whirlpool Lock
34	279220 Whirlpool Clip
35	WPW10366705 Whirlpool Screw
36	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
37	WP3389441 Whirlpool Door Catch
38	279827 Whirlpool Dryer Drive Motor
39	WP348780 Whirlpool Base
40	341241 Whirlpool Dryer Drum Belt
41	3400500 Whirlpool Screw
42	279923 Whirlpool Gas Valve
44	WP691366 Whirlpool Dryer Idler Pulley Assembly
46	CLAMP
