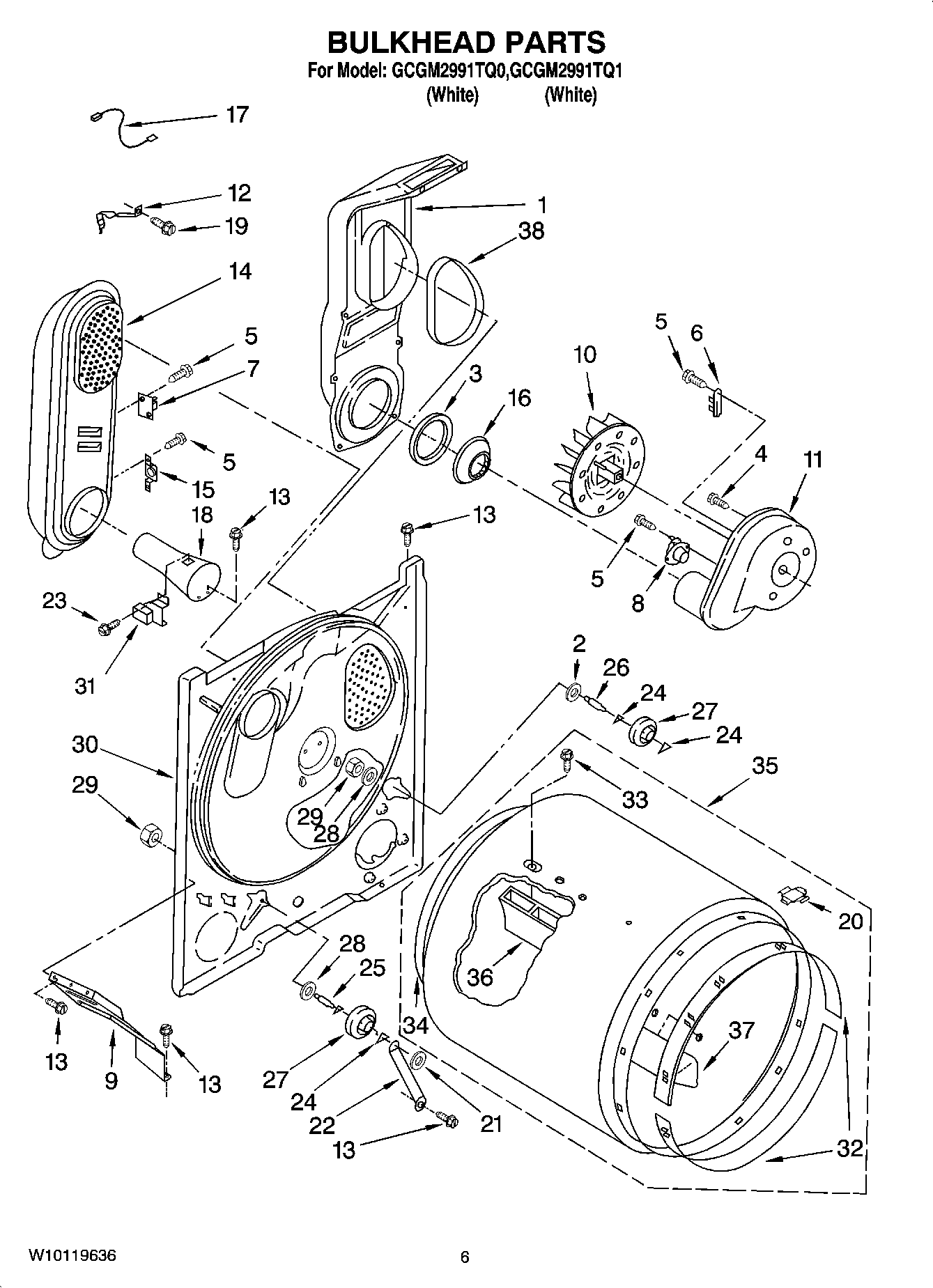

GCGM2991TQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP3388703 Whirlpool Washer
3	W11415783 Whirlpool Seal
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11050897 Whirlpool Dryer High Limit Thermostat
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	W11398682 Whirlpool Bracket
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	279980 Whirlpool Box
16	W11233063 Whirlpool Shield Assembly
17	WP3401707 Whirlpool Wire Assembly
18	WP8066049 Whirlpool Funnel Assembly
19	WP489463 Whirlpool Refrigerator Screw
20	8066086 Whirlpool Plug
21	WP90296 Whirlpool Clip
22	W11684613 Whirlpool Bracket
23	WP3390631 Whirlpool Screw
24	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25	SHAFT SUPPORT ROLLER DRYER
26	SHAFT SUPPORT ROLLER DRYER
27	349241T Whirlpool Dryer Drum Support Roller Kit
28	WP348197 Whirlpool Washer Assembly
29	WP3359452 Whirlpool Nut
30	W11178668 Whirlpool Bulkhead
31	WP338906 Whirlpool Dryer Gas Sensor
32	279441 Whirlpool Front Bearing Ring
33	WPW10109200 Whirlpool Screw
34	W10612022 Whirlpool Felt Seal
35	W10899578 Whirlpool Dryer Drum Assembly
36	BAFFLE-DRM
37	WP3403636 Whirlpool Drum Baffle
38	SEAL
