GCR23UDPCWW FRESH FOOD SECTION

GCR23UDPCWW FRESH FOOD SECTION

Written by

in

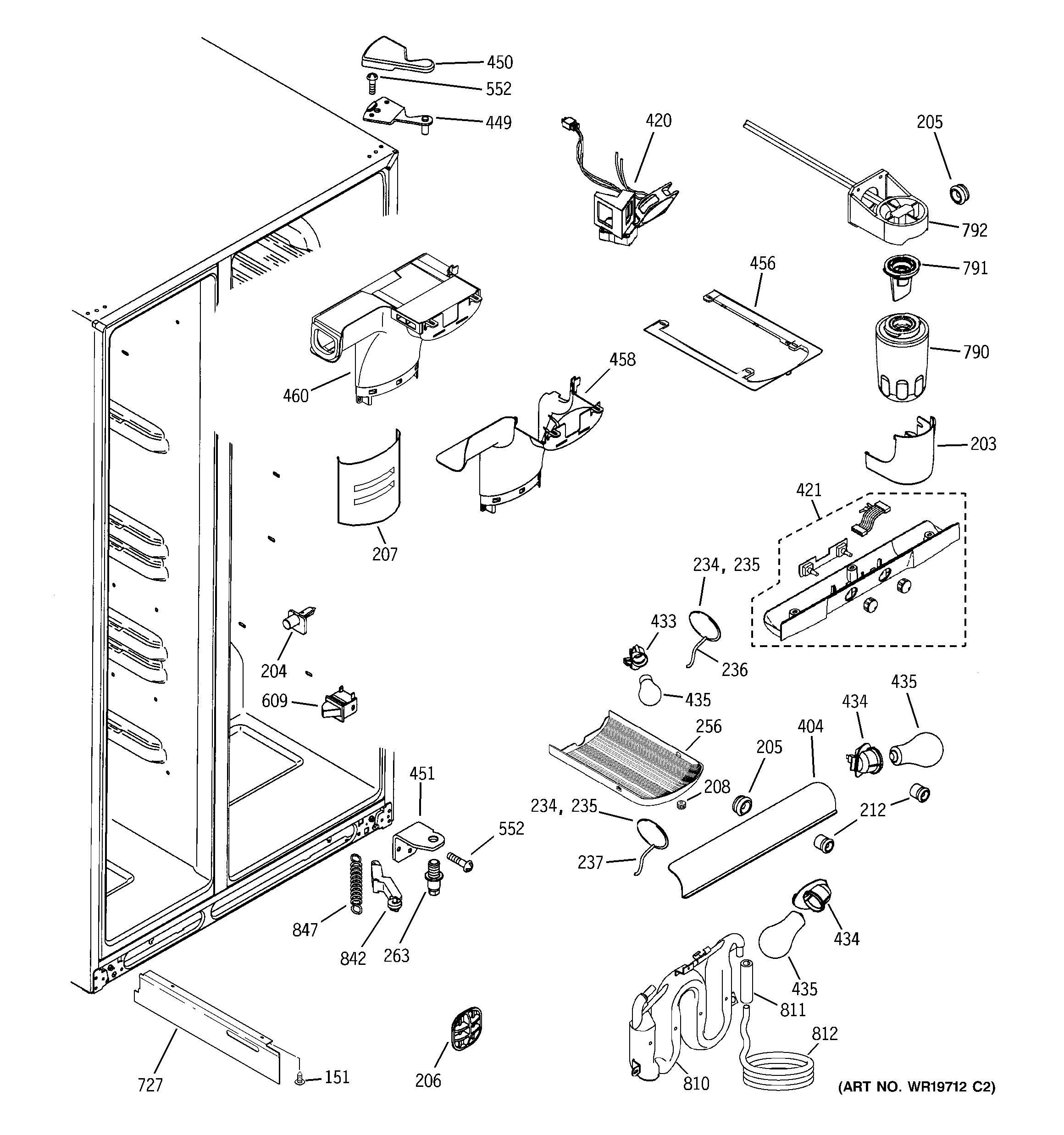

GCR23UDPCWW FRESH FOOD SECTION

Products

PositionProduct
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
203WR17X10800 GE Refrigerator Water Cover
204GEN WR02X10676
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
207WR17X10909 GE Refrigerator Cover Inlet Discharge
208WR01X10431 GE Refrigerator Nut 6-32 UN
212WR02X10689 GE Refrigerator Base Grille Grommet
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256GEN WR17X10839
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
421GEN WR55X10470
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
449WR13X10215 GE Refrigerator Top Hinge & Pin
450WR02X10658 GE Refrigerator White Cover Hinge
451WR13X10167 GE Refrigerator Bottom Hinge Black
456WR71X10290 GE Refrigerator Light Bezel
458GEN WR17X10912
460WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
552WR01X10631 GE Screw
609REFRIGERATOR DOOR LIGHT SWITCH
727GEN WR17X11503
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792MWF MANIFOLD
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
