GCR23UDPCWW ICE MAKER & DISPENSER

GCR23UDPCWW ICE MAKER & DISPENSER

Written by

in

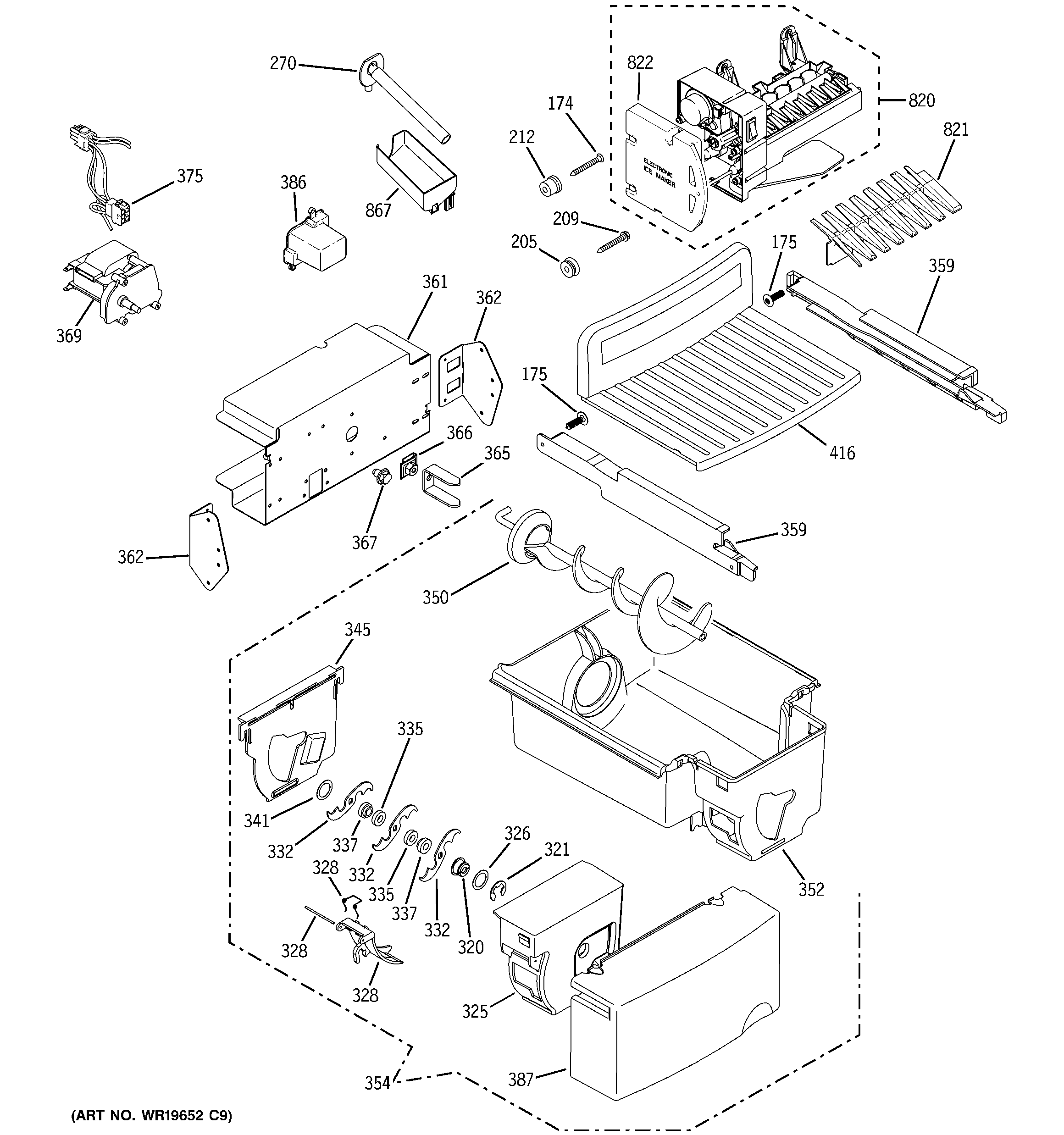

GCR23UDPCWW ICE MAKER & DISPENSER

Products

PositionProduct
174WR01X10447 GE Refrigerator SCR-8-18-AB-UFL
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
205WR02X10678 GE Refrigerator Grommet
209WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
212WR02X10689 GE Refrigerator Base Grille Grommet
270WR17X11168 GROMMET AND TUBE ASM
320WR01X10315 GE Refrigerator Auger Nut
321WR1X1367D GE Refrigerator Return Package 12
325WR17X11505 GE Refrigerator Housing Crusher
326GEN WR01X1366
328GEN WR02X11982
328WR2X4143 GE Refrigerator Pivot
328WR17X10703 GE Refrigerator Deflector
332WR17X11239 GE Refrigerator Blades Moving Dispenser
335GEN WR02X4139
337WR2X4138 GE Refrigerator Spacer
341WR29X10045 GE Refrigerator Washer Crusher Blade
345WR17X11497 GE Refrigerator Ice Dispenser Crusher Cover
350BUCKET AUGER
352WR30X10055 GE Refrigerator Bucket Ice Dispenser
354GEN WR17X11838
359GEN WR72X10139
359GEN WR72X10138
361GEN WR17X11830
362GEN WR02X11598
365DRIVE AUGER DISP
366GEN WR01X10190
367WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
369WR60X10260 GE Refrigerator Motor Crusher Dispenser
369WR60X10258 GE Refrigerator Icemaker Auger Motor
375GEN WR23X10411
386WR02X11295 GE Refrigerator Auger Motor Boot
387WR17X11032 GE Refrigerator Cover Bumper
416GEN WR71X10313
820WR30X10093 GE Refrigerator Ice Maker
821WR29X10085 GE Ice Stripper
822WR29X10068 GE Refrigerator Cover Plate Electric TRNIC IM
867WR29X10109 GE Refrigerator Water Fill Cup
