GCR23YLRDWW FREEZER DOOR

GCR23YLRDWW FREEZER DOOR

Written by

in

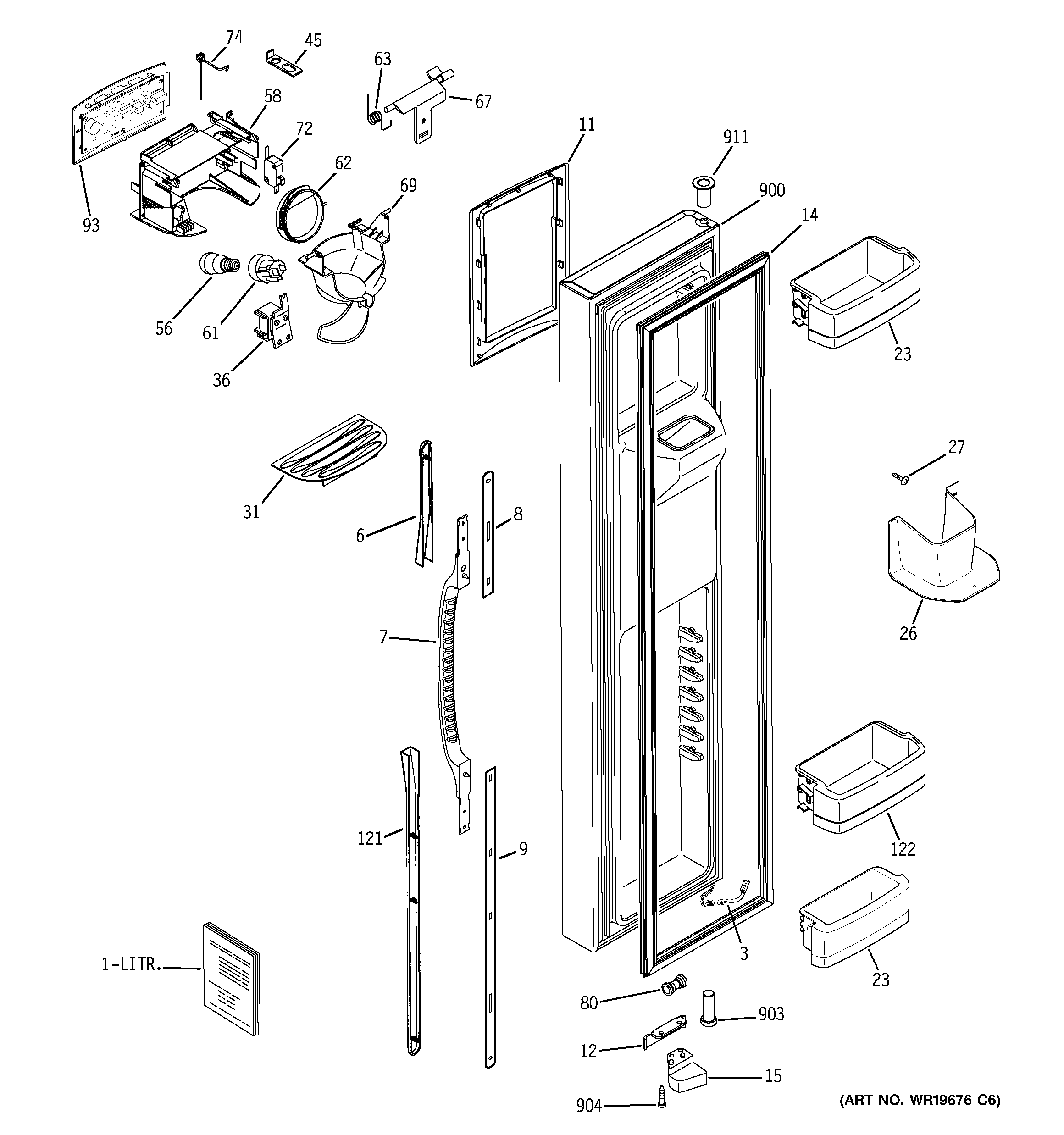

GCR23YLRDWW FREEZER DOOR

Products

PositionProduct
1GEN 31-51627
1GEN 49-60298
3GEN WR09X10132
6GEN WR12X10152
7GEN WR12X10782
8GEN WR12X10150
9GEN WR12X10190
11GEN WR38X10353
12WR02X13424 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10638 GE Refrigerator Cam Closure
23WR71X10254 GE Refrigerator Fixed Shelf Module
26GEN WR71X10495
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11654 GE Refrigerator White Recess Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69GEN WR17X11883
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10461
121GEN WR12X10193
122WR71X10291 GE Refrigerator Shelf Module
900GEN WR78X11518
903WR01X10208 GE Refrigerator Door Thimble
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
