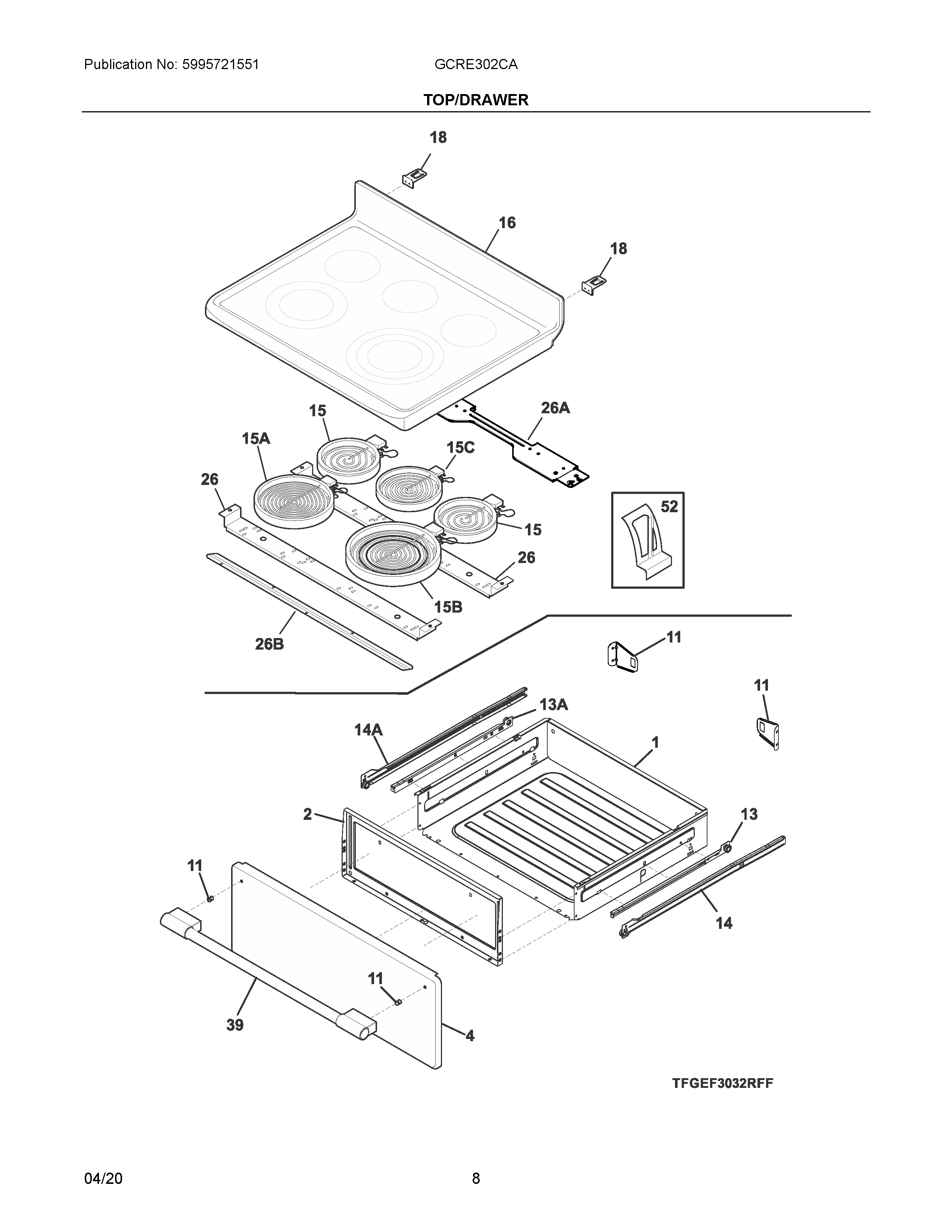

GCRE302CADA 04 – TOP/DRAWER

GCRE302CADA 04 – TOP/DRAWER

Written by

in

GCRE302CADA 04 – TOP/DRAWER

Products

PositionProduct
NI5304522953 Frigidaire Harness
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5304414648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304516891 Frigidaire Oven Panel
105304507924 Frigidaire Oven Screw
115304517906 Frigidaire Oven Bracket
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15318178110 Frigidaire Oven Range 6" Surface Element
15A316530001 Frigidaire Oven Element
15CELEMENT,RADIANT,100W,WARMER
15B316282103 Frigidaire Oven Element
165304513242 Frigidaire Oven Smooth Top Glass Range (Black)
18316580800 Frigidaire Hinge Bracket
26A316498200 Frigidaire Oven Bracket
265304512926 Frigidaire Channel
26B316607600 Frigidaire Bracket
39316554009 Frigidaire Oven Handle
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
