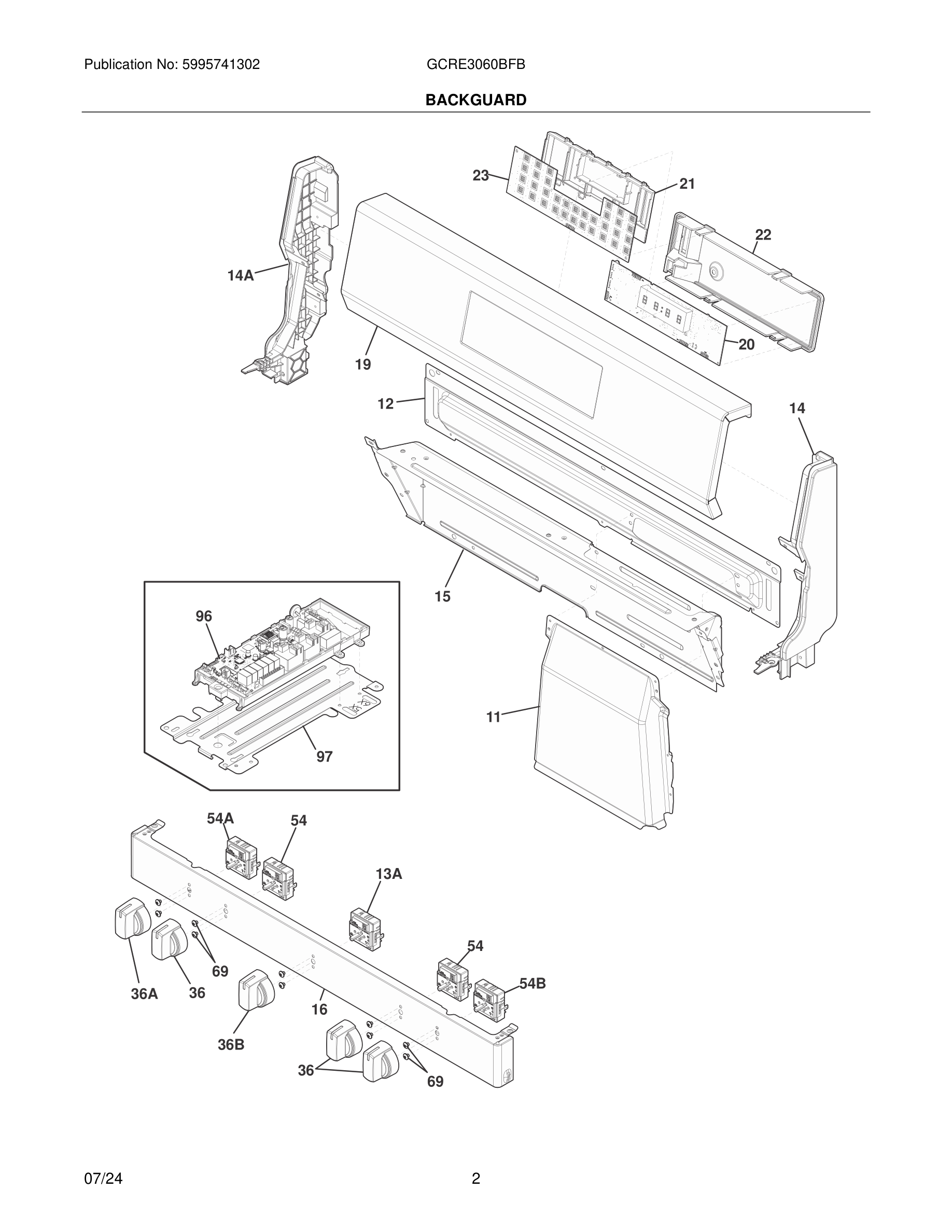

GCRE3060BFB 03 – BACKGUARD

Products

PositionProduct
*#HARNESS, WIRING, SWITCHES, TOP BURNER
*#HARNESS
*SCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
*SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
*5304526234 Frigidaire Screw
*5304526533 Frigidaire Screw
*SCREW
11DUCT, UPPER EXHAUST, BLACK
12DIFFUSER, DUCT
13A#5304522964 Frigidaire Switch
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, BLACK, INNER
165304533899 Frigidaire Manifold Panel
195304528253 Frigidaire Control Panel
20#ASM-BG E SC UI480E
215304533876 Frigidaire Chassis
22COVER
23#5304533886 Frigidaire Control
365304533887 Frigidaire Knob
36A5304533888 Frigidaire Knob
36BKNOB, CONTROL, STAINLESS, WARMER
54A#5304522918 Frigidaire Oven Surface Element Switch
54#5304522966 Frigidaire Switch
54B#5304522965 Frigidaire Switch Assembly
695304526494 Frigidaire Screw
96#5304535108 Frigidaire PCB Board
96*WCI 5304536410
97*WCI 5304528293
97BRACKET, OVC BOARD
