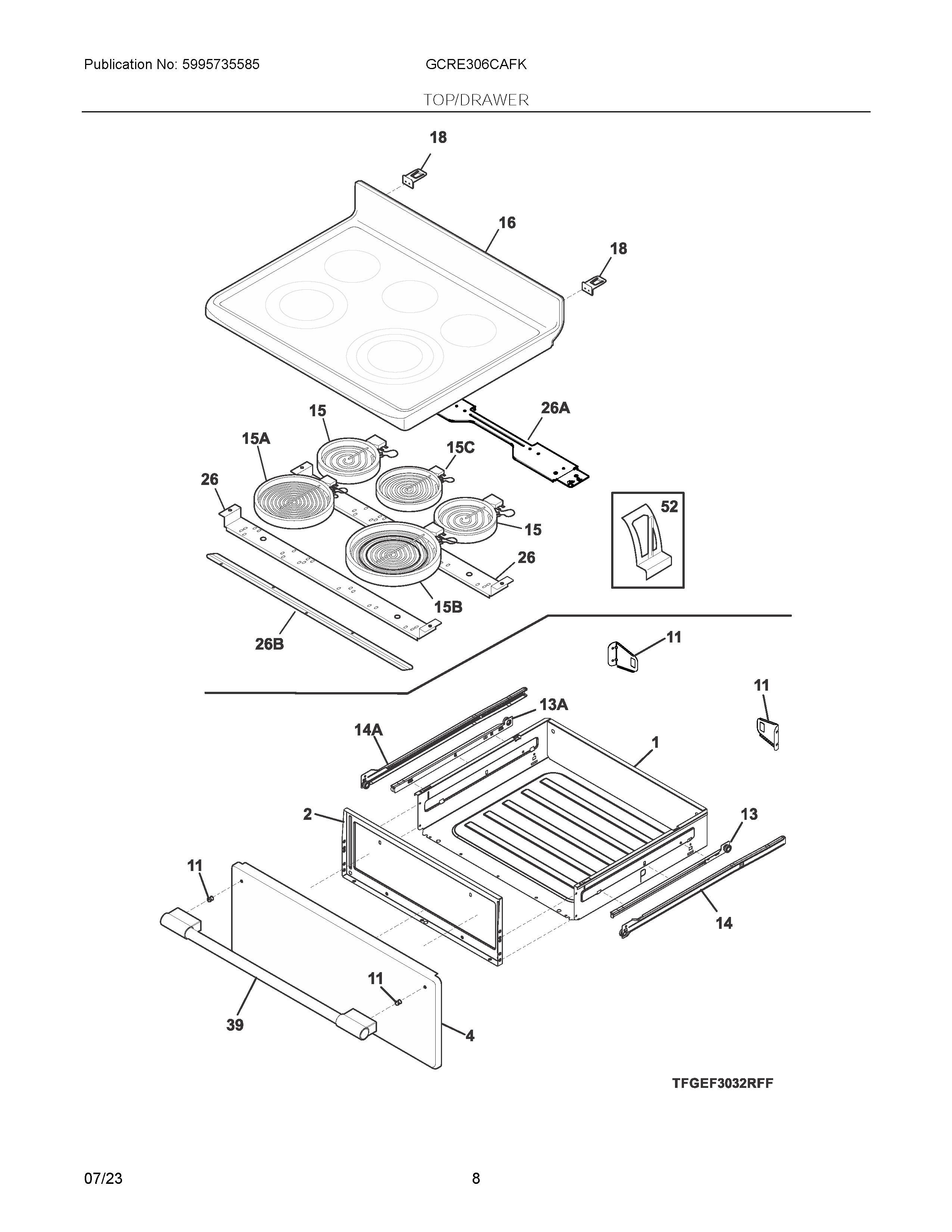

GCRE306CAFK 04 – TOP/DRAWER

GCRE306CAFK 04 – TOP/DRAWER

Written by

in

GCRE306CAFK 04 – TOP/DRAWER

Products

PositionProduct
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
NI5304525258 Frigidaire Harness
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NI5304414648 Frigidaire Oven Screw
1DRAWER-UTILITY WITH STOP, 1
25304527989 Frigidaire Liner
45304518011 Frigidaire Oven Panel
105304507924 Frigidaire Oven Screw
13A316415001 Frigidaire Oven Glide
13316415000 Frigidaire Oven Glide
14GLIDE WARMER OUTER, 14
15B318297810 Frigidaire Oven Triple Radiant Burner Element
15318178110 Frigidaire Oven Range 6" Surface Element
15C5304521951 Frigidaire Element
15A5304533520 Frigidaire Element
165304513155 Frigidaire Smoothtop
18316580800 Frigidaire Hinge Bracket
26A316498200 Frigidaire Oven Bracket
265304512926 Frigidaire Channel
26B316607600 Frigidaire Bracket
39316554010 Frigidaire Stainless Steel Handle
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
