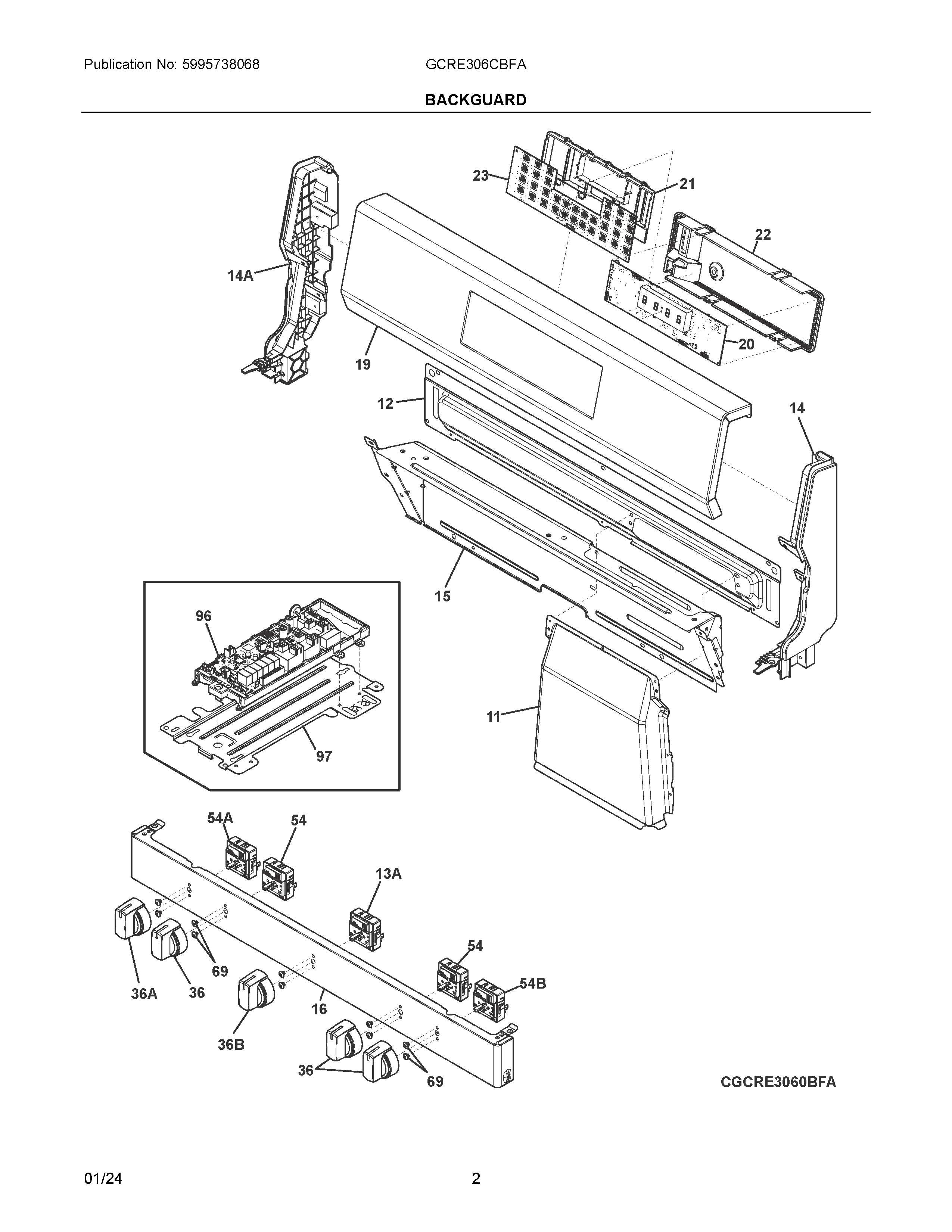

GCRE306CBFA 02 – BACKGUARD

GCRE306CBFA 02 – BACKGUARD

Written by

in

GCRE306CBFA 02 – BACKGUARD

Products

PositionProduct
NIHARNESS, WIRING, SWITCHES, TOP BURNER
NIASTANDOFF, HARNESS, PLASTIC
NIHARNESS
NISCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NISCREW
NISCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI5304526234 Frigidaire Screw
NI5304526533 Frigidaire Screw
NIAWCI 5304528293
11DUCT, UPPER EXHAUST, BLACK
12DIFFUSER, DUCT
13A5304522964 Frigidaire Switch
14AEND CAP
14END CAP
15SHIELD, BACKGUARD, BLACK, INNER
165304533899 Frigidaire Manifold Panel
195304528253 Frigidaire Control Panel
205304533919 Frigidaire Controller
215304533876 Frigidaire Chassis
22COVER
235304533886 Frigidaire Control
365304533887 Frigidaire Knob
36A5304533888 Frigidaire Knob
36BKNOB, CONTROL, STAINLESS, WARMER
54A5304522918 Frigidaire Oven Surface Element Switch
545304522966 Frigidaire Switch
54B5304522965 Frigidaire Switch Assembly
695304526494 Frigidaire Screw
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
