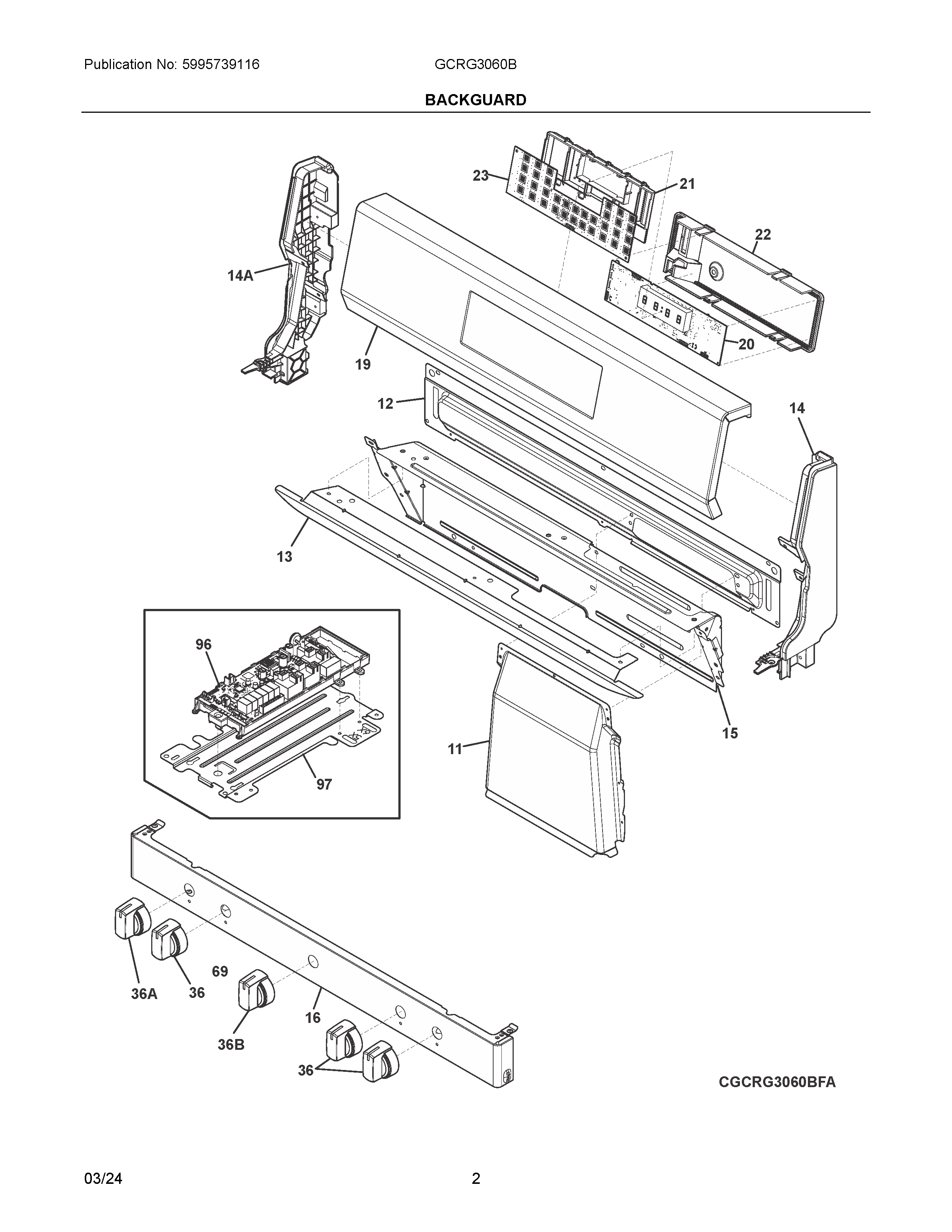

GCRG3060BDA 02 – BACKGUARD

Products

Position	Product
NIA	WCI 5304528293
NI	HARNESS
NI	SCREW, #8-18 X 10
NI	SCREW
NI	SCREW, 4.2 X 19.1MM, BLACK, ZINC PLATED
NIA	STANDOFF, HARNESS, PLASTIC
NI	SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED
NI	5304526234 Frigidaire Screw
11	DUCT, UPPER EXHAUST, BLACK
12	DIFFUSER, DUCT
13	5304526526 Frigidaire Deflector Assembly
14	END CAP
14A	END CAP
15	SHIELD, BACKGUARD, BLACK, INNER
16	PANEL, MANIFOLD, BLACK STAINLESS
19	CONTROL PANEL
20	CONTROLLER
21	5304533876 Frigidaire Chassis
22	COVER
23	5304533886 Frigidaire Control
36	KNOB, TOP VALVE, BLACK STAINLESS
96	5304535108 Frigidaire PCB Board
97	BRACKET, OVC BOARD
