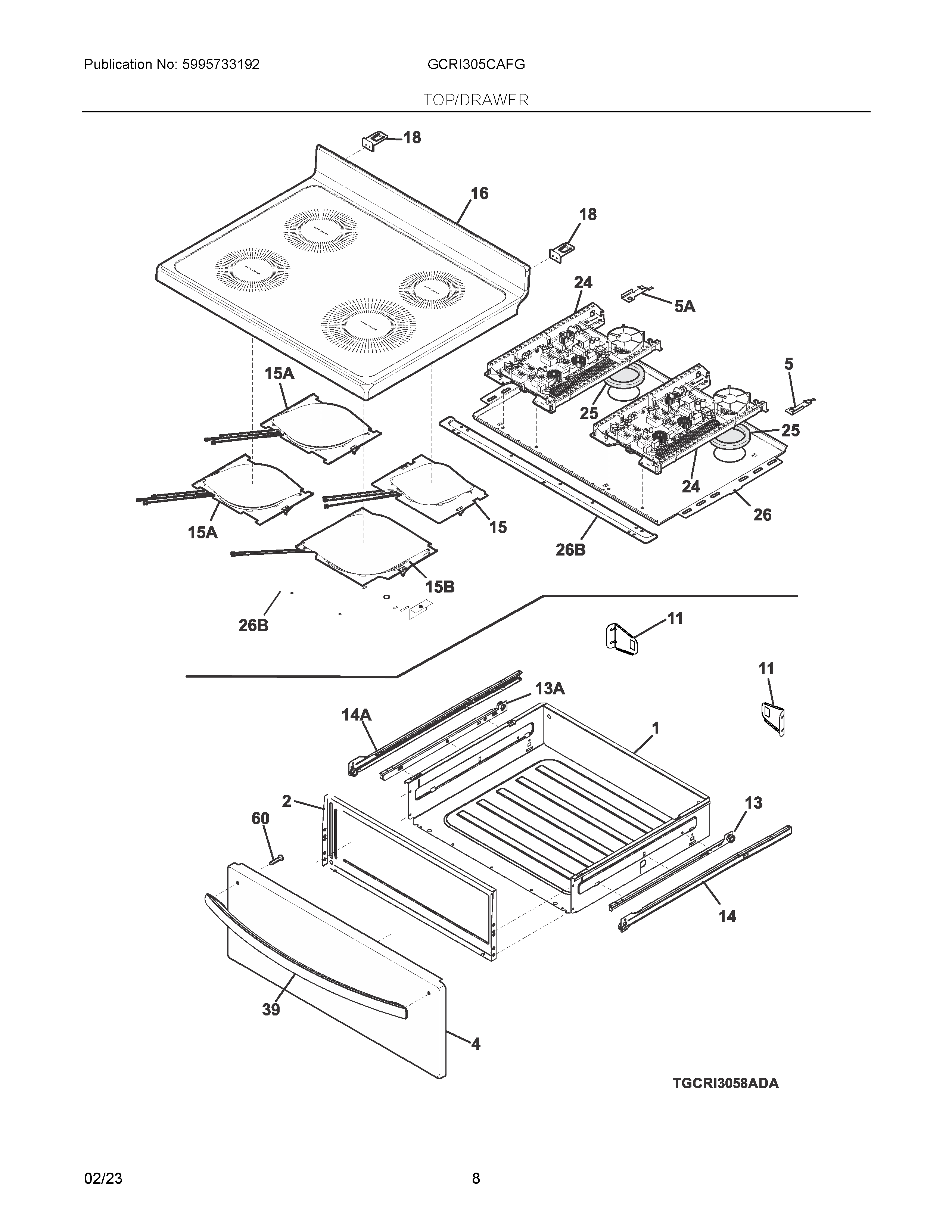

GCRI305CAFG 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	316001017 Frigidaire Screw
NI	5304517540 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5303289910 Frigidaire Oven Screw
NI	5304524911 Frigidaire Harness
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304518011 Frigidaire Oven Panel
5A	BRACKET, COOKTOP, LH REAR
5	BRACKET, COOKTOP, RH REAR
10	5304507924 Frigidaire Oven Screw
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
14A	5304517902 Frigidaire Oven Glide Drawer
15	387404760 Frigidaire Range Element Assembly
15A	387404870 Frigidaire Range Element Assembly
15B	387761249 Frigidaire Range Element Assembly
16	5304511258 Frigidaire Smoothtop Assembly
18	316580800 Frigidaire Hinge Bracket
24	5304521812 Frigidaire Board Generator
25	316302201 Frigidaire Seal
26B	316607600 Frigidaire Bracket
26	5304522702 Frigidaire Panel
39	316554010 Frigidaire Stainless Steel Handle
60	5304414648 Frigidaire Oven Screw
