GCWD2767AFD 02 – CONTROL PANEL

GCWD2767AFD 02 – CONTROL PANEL

Written by

in

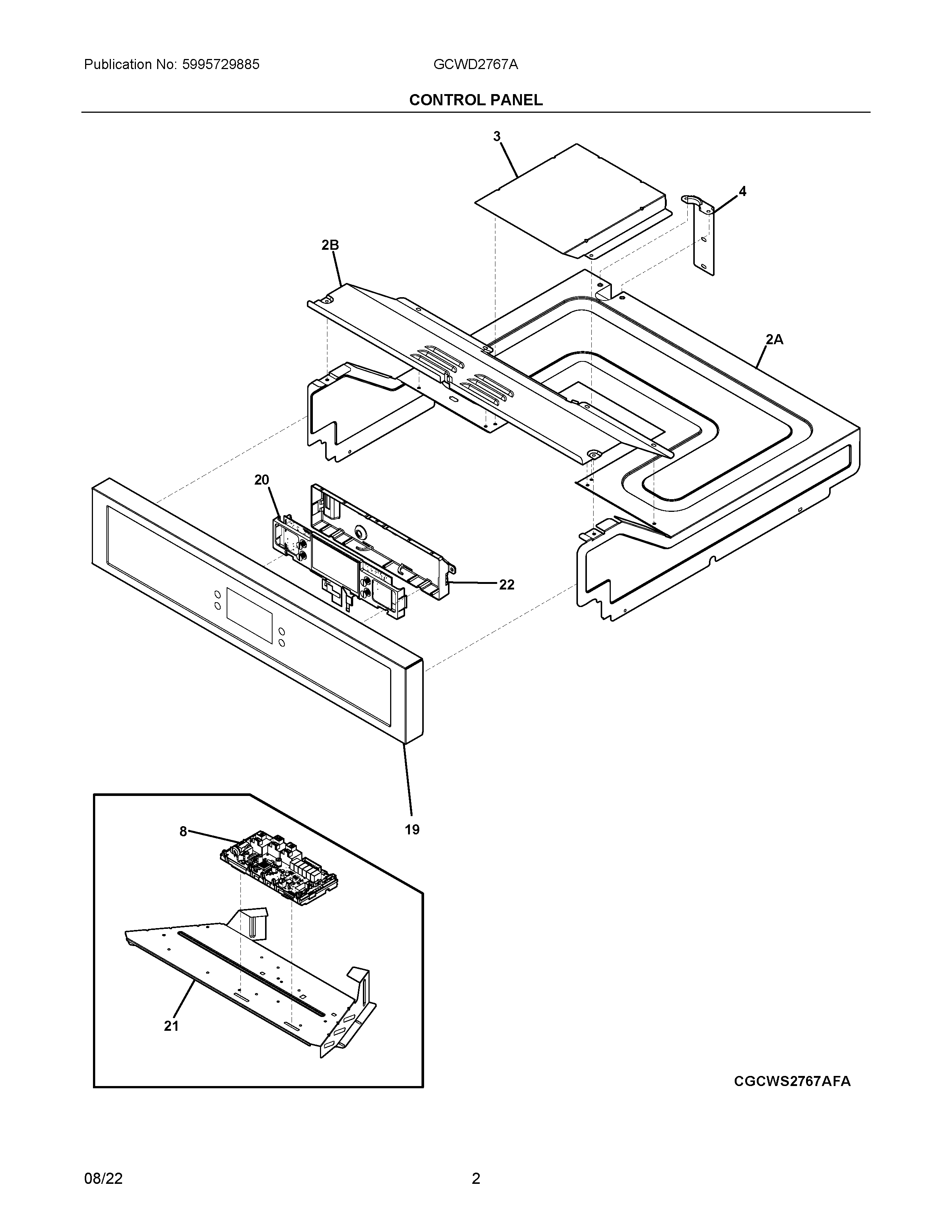

GCWD2767AFD 02 – CONTROL PANEL

Products

PositionProduct
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NIBASCREW, T-20 ST, 8-24 X 5/8
NI387856311 Frigidaire Screw
2A139003603 Frigidaire Cover
2B139003702 Frigidaire Cover
3318577801 Frigidaire Oven Box
4BRACKET, CONDUIT
85304525432 Frigidaire Board Assembly
195304525827 Frigidaire Oven Control Panel
20CONTROL ELEC EOC
21BRACKET, MOUNTING
225304523582 Frigidaire Housing
