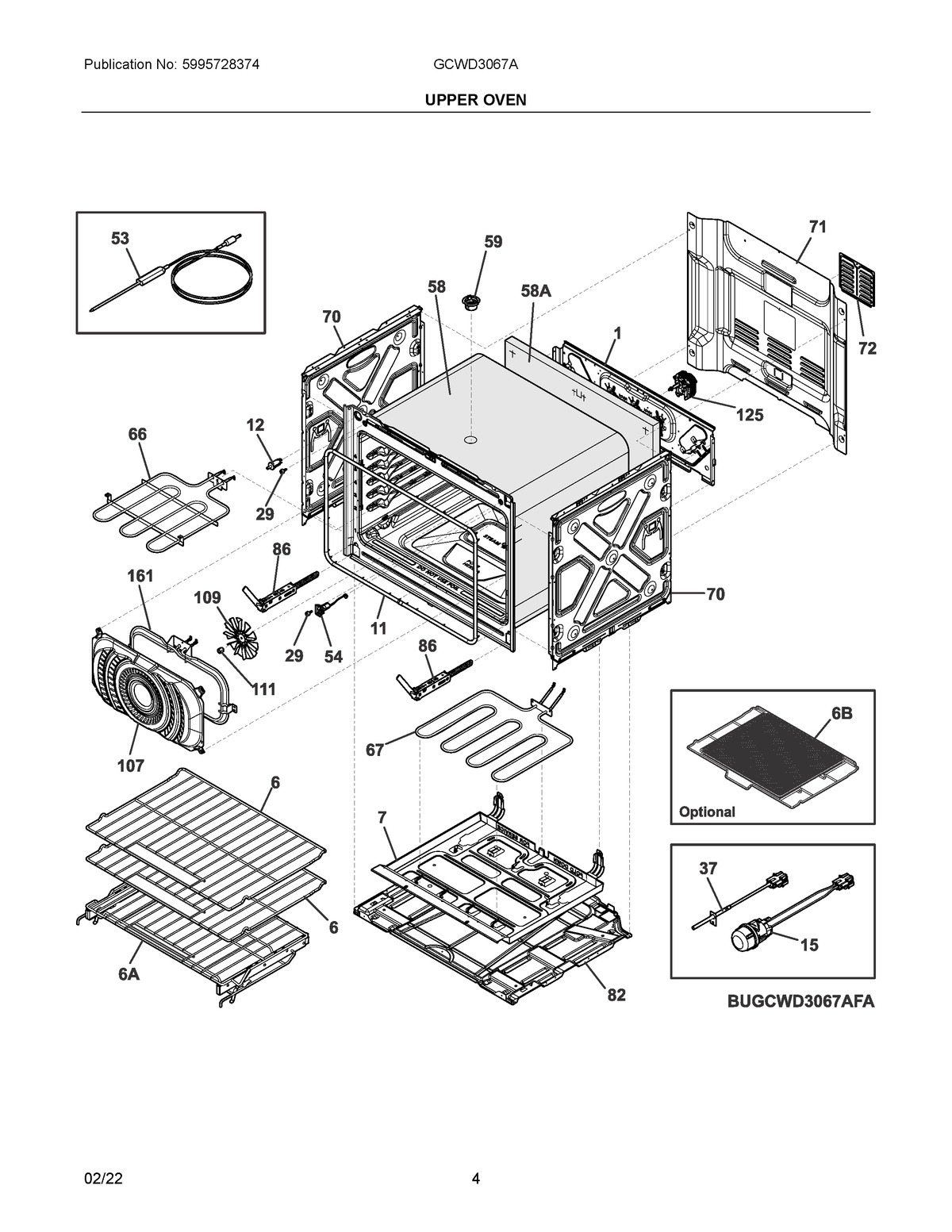

GCWD3067ADA 03 – UPPER OVEN

Products

Position	Product
NI	5304526499 Frigidaire Harness
NI	5304532099 Frigidaire Harness
NI	387856311 Frigidaire Screw
NIA	5304526234 Frigidaire Screw
NIA	5304526532 Frigidaire Screw
NIA	WCI 387872717
NI	5304533451 Frigidaire Harness
NI	5304530450 Frigidaire Anti Tip
1	PANEL
6	5304536394 Frigidaire Rack-Flat Peregrine
6B	FRIG AIR FRY TRAY PEREGRINE
6A	5304526506 Frigidaire Range Assembly Rack
7	TRAY, HIDDEN BAKE
10	5304526365 Frigidaire Cover
10	5304525455 Frigidaire Blade
11	5304526242 Frigidaire Seal
11	561231207 Frigidaire Nut
12	808136601 Frigidaire Oven Switch
12	5304526375 Frigidaire Motor
15	5304530343 Frigidaire Lamp Assembly
16	5304526565 Frigidaire Element
29	316517600 Frigidaire Oven Spacer
37	5304526310 Frigidaire Probe
53	807822611 Frigidaire Probe
54	RECEPTACLE, MEAT PROBE
58	INSULATION, OVEN, WRAPPER
58	INSULATION, OVEN, REAR
59	TUBE, VENT CATALYST
66	5304536847 Frigidaire Element-Broil 6Pass
67	5304535239 Frigidaire Element-Hidden Bk 2
70	PANEL
71	5304526329 Frigidaire Shield
72	5304526588 Frigidaire Cover
82	PANEL, EXTERIOR, BOTTOM, UPPER OVEN
86	5304526280 Frigidaire Hinge
