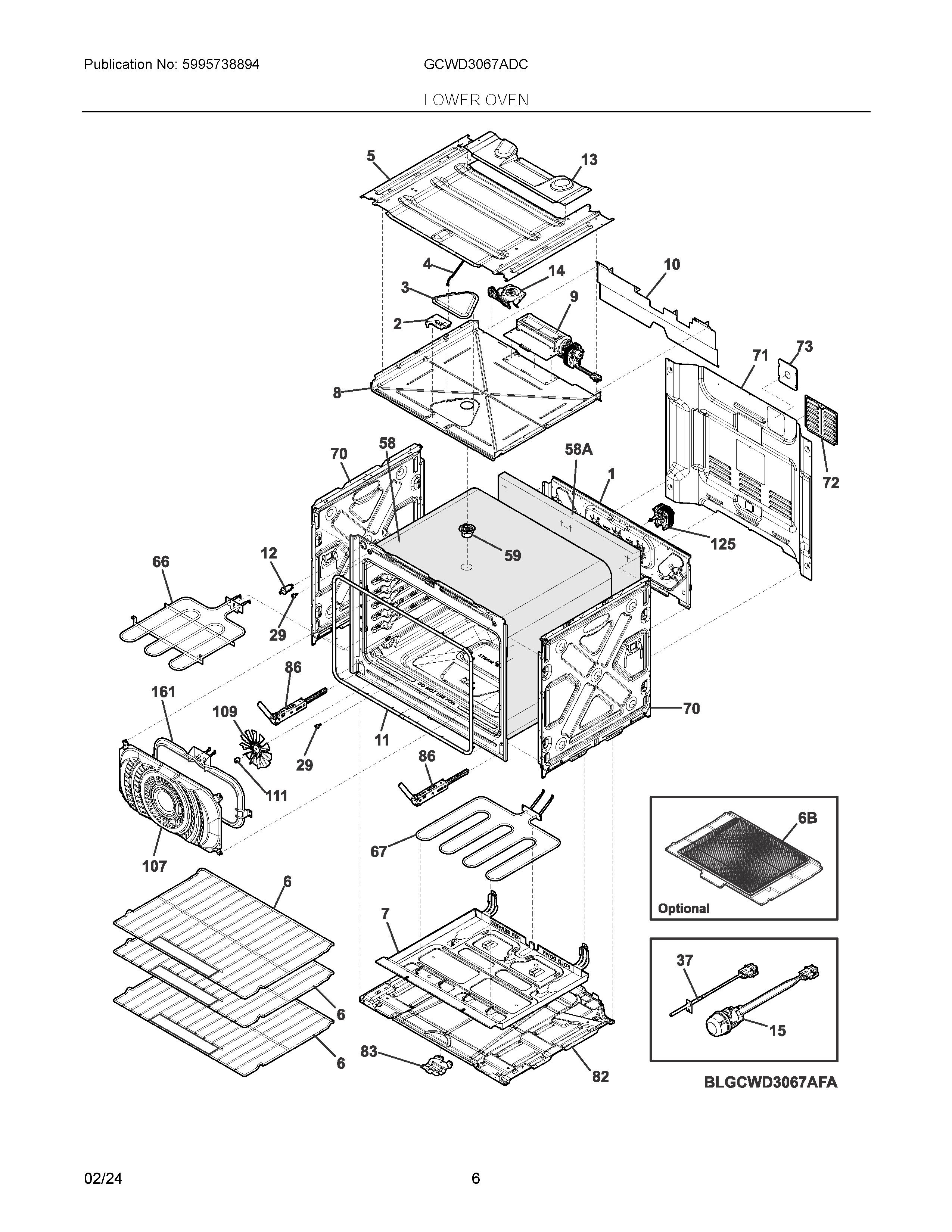

GCWD3067ADC 04 – LOWER OVEN

GCWD3067ADC 04 – LOWER OVEN

Written by

in

GCWD3067ADC 04 – LOWER OVEN

Products

PositionProduct
NI387856311 Frigidaire Screw
NI5304526516 Frigidaire Harness
NIA5304526234 Frigidaire Screw
NI5304533451 Frigidaire Harness
NI5304526527 Frigidaire Harness
NI5304535368 Frigidaire Harness
NI5304530450 Frigidaire Anti Tip
NIA5304526532 Frigidaire Screw
NI5304530449 Frigidaire Harness
NIAWCI 387872717
NI5304526500 Frigidaire Harness
NI5304526514 Frigidaire Harness
NI5304532099 Frigidaire Harness
1PANEL
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526313 Frigidaire Panel
65304536394 Frigidaire Rack-Flat Peregrine
6BFRIG AIR FRY TRAY PEREGRINE
6A5304526506 Frigidaire Range Assembly Rack
7TRAY, HIDDEN BAKE
8SHIELD, BOTTOM DUCT
95304530369 Frigidaire Blower Assembly
10SHIELD-INSUL REAR LOWER DWO
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD, BAFFLE, LOWER DWO, COOLING
145304526552 Frigidaire Motor Assembly
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
58AINSULATION, OVEN, REAR
58INSULATION, OVEN, WRAPPER
59TUBE, VENT CATALYST
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526330 Frigidaire Shield Assembly
725304526588 Frigidaire Cover
73COVER, ANTI VIBRATION
82PLATE-EXT BOTTOM SC
83BRACKET, BASE PANEL, MOUNT
865304526280 Frigidaire Hinge
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
