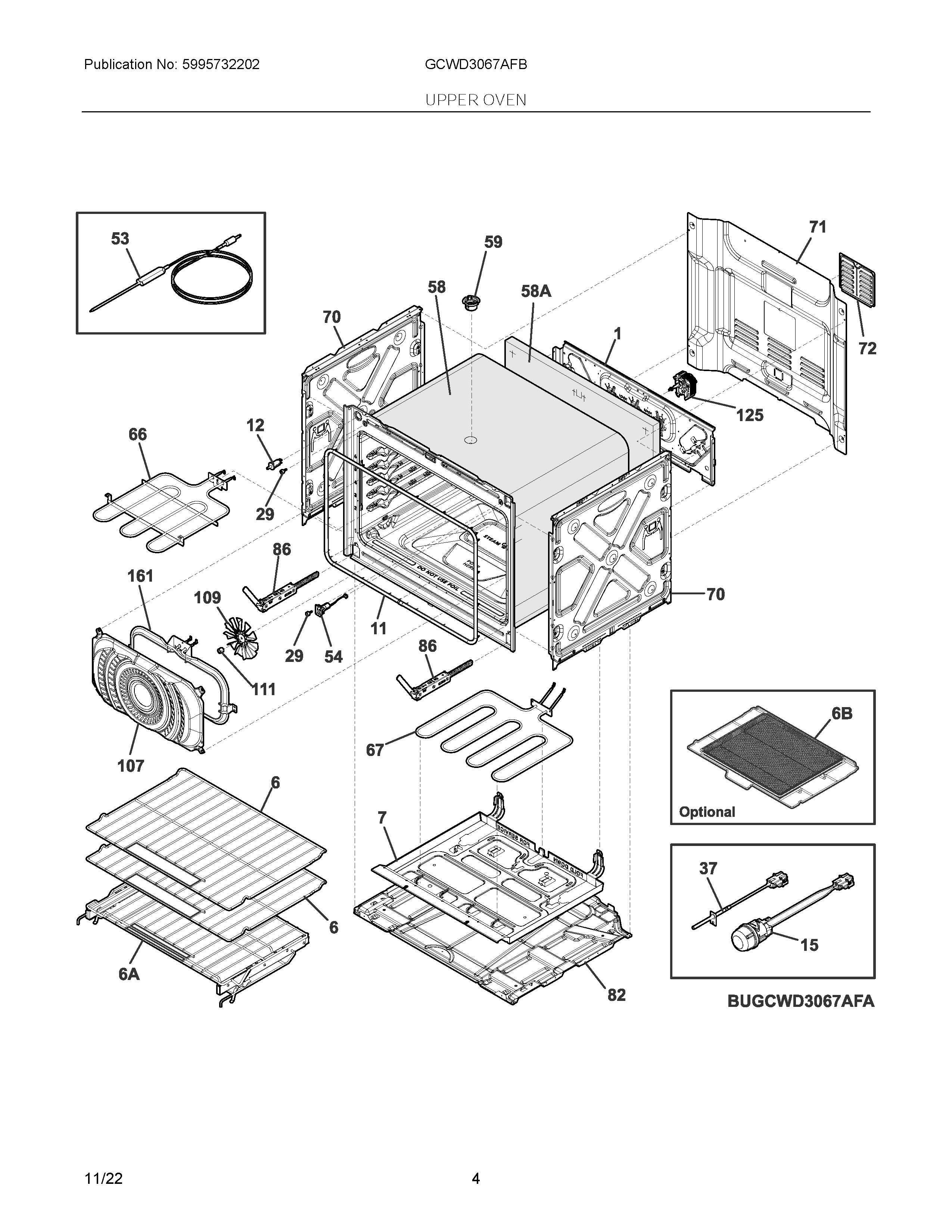

GCWD3067AFB 03 – UPPER OVENadmin2025-04-26T09:29:17+00:00GCWD3067AFB 03 – UPPER OVEN
Products
| Position | Product |
|---|
| NI | 5304532100 Frigidaire Harness |
| NIA | 5304526234 Frigidaire Screw |
| NIA | 5304526532 Frigidaire Screw |
| NI | 387856311 Frigidaire Screw |
| NI | 5304533451 Frigidaire Harness |
| NI | 5304530450 Frigidaire Anti Tip |
| NIA | WCI 387872717 |
| NI | 5304526499 Frigidaire Harness |
| 1 | PANEL |
| 6B | FRIG AIR FRY TRAY PEREGRINE |
| 6A | 5304526506 Frigidaire Range Assembly Rack |
| 6 | 5304536394 Frigidaire Rack-Flat Peregrine |
| 7 | TRAY, HIDDEN BAKE |
| 11 | 5304526242 Frigidaire Seal |
| 12 | 808136601 Frigidaire Oven Switch |
| 15 | 5304530343 Frigidaire Lamp Assembly |
| 29 | 316517600 Frigidaire Oven Spacer |
| 37 | 5304526310 Frigidaire Probe |
| 53 | 807822611 Frigidaire Probe |
| 54 | RECEPTACLE, MEAT PROBE |
| 58 | INSULATION, OVEN, WRAPPER |
| 58A | INSULATION, OVEN, REAR |
| 59 | TUBE, VENT CATALYST |
| 66 | 5304536847 Frigidaire Element-Broil 6Pass |
| 67 | 5304535239 Frigidaire Element-Hidden Bk 2 |
| 70 | PANEL |
| 71 | 5304526329 Frigidaire Shield |
| 72 | 5304526588 Frigidaire Cover |
| 82 | PANEL, EXTERIOR, BOTTOM, UPPER OVEN |
| 86 | 5304526280 Frigidaire Hinge |
| 107 | 5304526365 Frigidaire Cover |
| 109 | 5304525455 Frigidaire Blade |
| 111 | 561231207 Frigidaire Nut |
| 125 | 5304526375 Frigidaire Motor |
| 161 | 5304526565 Frigidaire Element |
