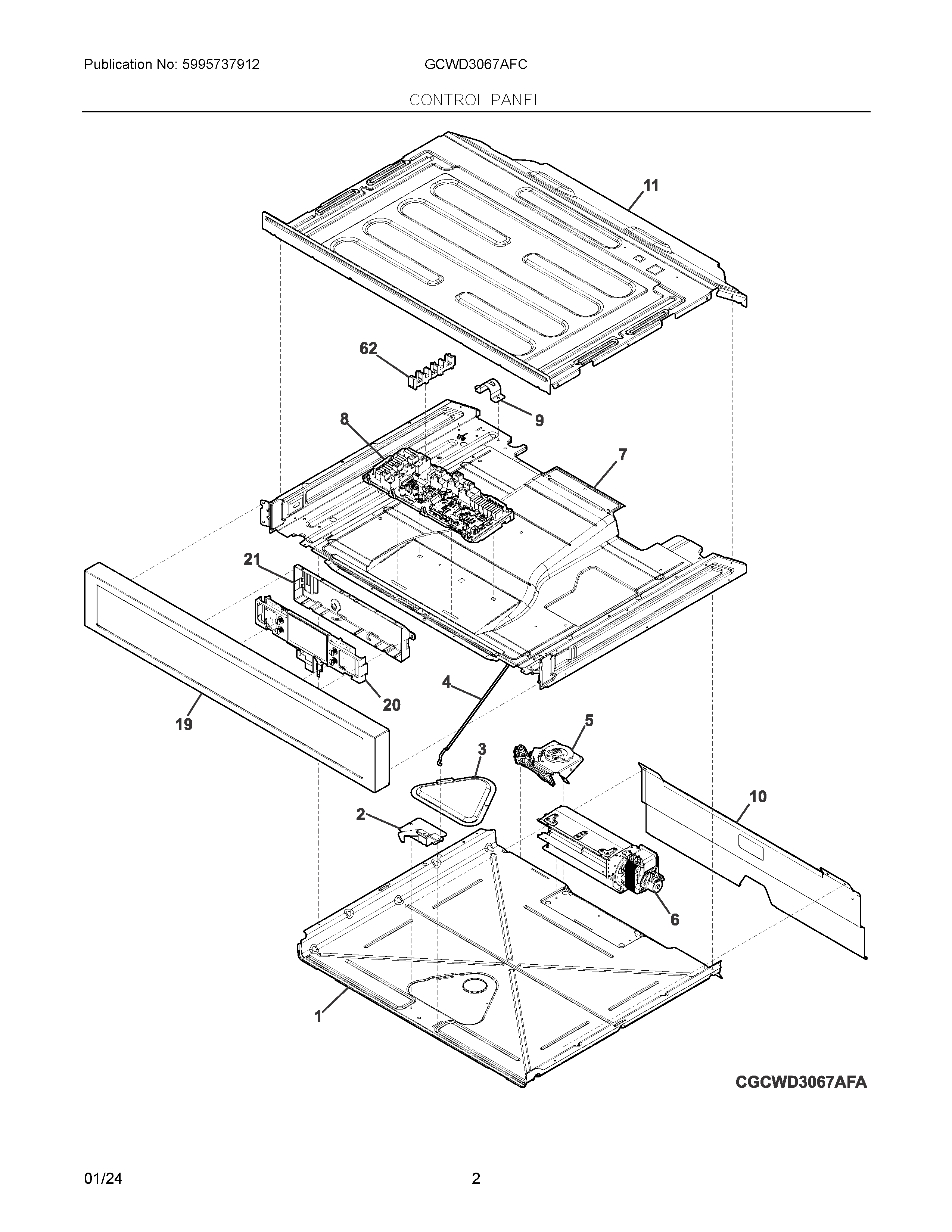

GCWD3067AFC 02 – CONTROL PANEL

GCWD3067AFC 02 – CONTROL PANEL

Written by

in

GCWD3067AFC 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NI5304526514 Frigidaire Harness
NI5304526500 Frigidaire Harness
NI5304526499 Frigidaire Harness
NI5304530449 Frigidaire Harness
NI5304526516 Frigidaire Harness
NI5304532099 Frigidaire Harness
NI5304533451 Frigidaire Harness
NI5304526527 Frigidaire Harness
NIHARNESS, WIRING, UPPER OVEN, DS
NI387856311 Frigidaire Screw
NIA316001017 Frigidaire Screw
NICWCI 5304528293
NIWCI 387872717
NI5304535368 Frigidaire Harness
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304525432 Frigidaire Board Assembly
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
195304526476 Frigidaire Control Panel
205304536935 Frigidaire Controller
215304523582 Frigidaire Housing
625304535277 Frigidaire Terminal Block
