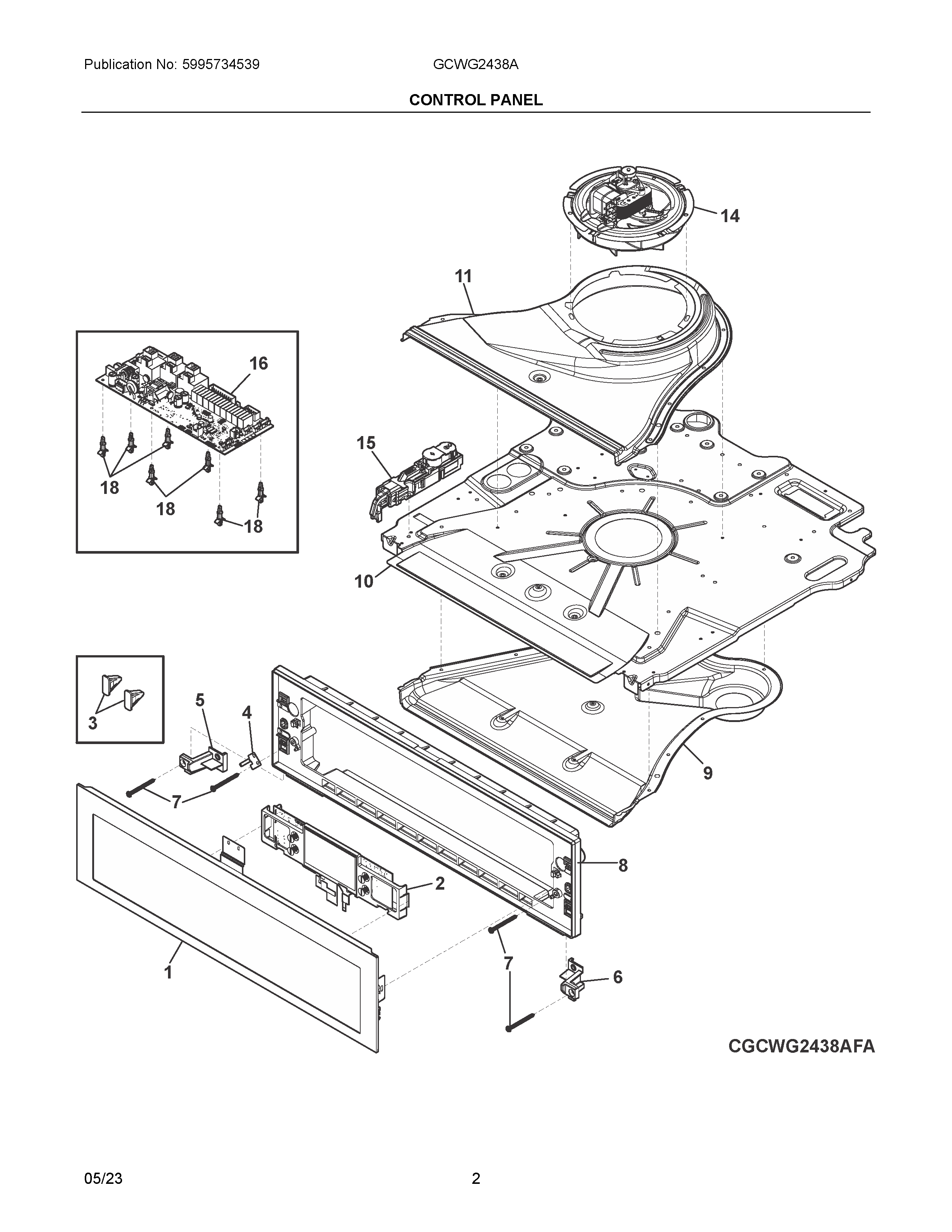

GCWG2438ABA 02 – CONTROL PANEL

Products

Position	Product
NIA	HARNESS, WIRING, DOOR LOCK
NIA	HARNESS, WIRING, COOLING FAN, TACHOMETER
NI	HARNESS, WIRING, MAIN, W/CAPACITOR
NI	SCREW, HEX PH2 T/CUT, 6-20 X 9.3
NI	HARNESS, WIRING, USER INTERFACE, PUX
NI	SCREW, PAN #2PH, #8 X 50
NI	Screw, HEX/Multi, #8 x 8mm
NI	Screw, #2 PH AB MUSH, #8 x 1/2, black
1	5304533826 Frigidaire Control Panel
2	5304533827 Frigidaire Controller
3	SPACER, CONTROLLER
4	BRACKET, GROUNDING
5	CAP, MOUNT, LH FRAME
6	CAP, MOUNT, RH FRAME
7	Screw, PH2 nylon washr, #8 x 1/2
8	TRIM, SURROUND, CONTROL
9	PANEL, AIR DUCT, LOWER
10	PANEL, AIR DUCT, MIDDLE
11	PANEL, AIR DUCT, UPPER
14	5304533823 Frigidaire Blower Assembly
15	5304533761 Frigidaire Door Lock
16	5304533762 Frigidaire PC Board
18	CLIP, STANDOFF, PC BOARD
