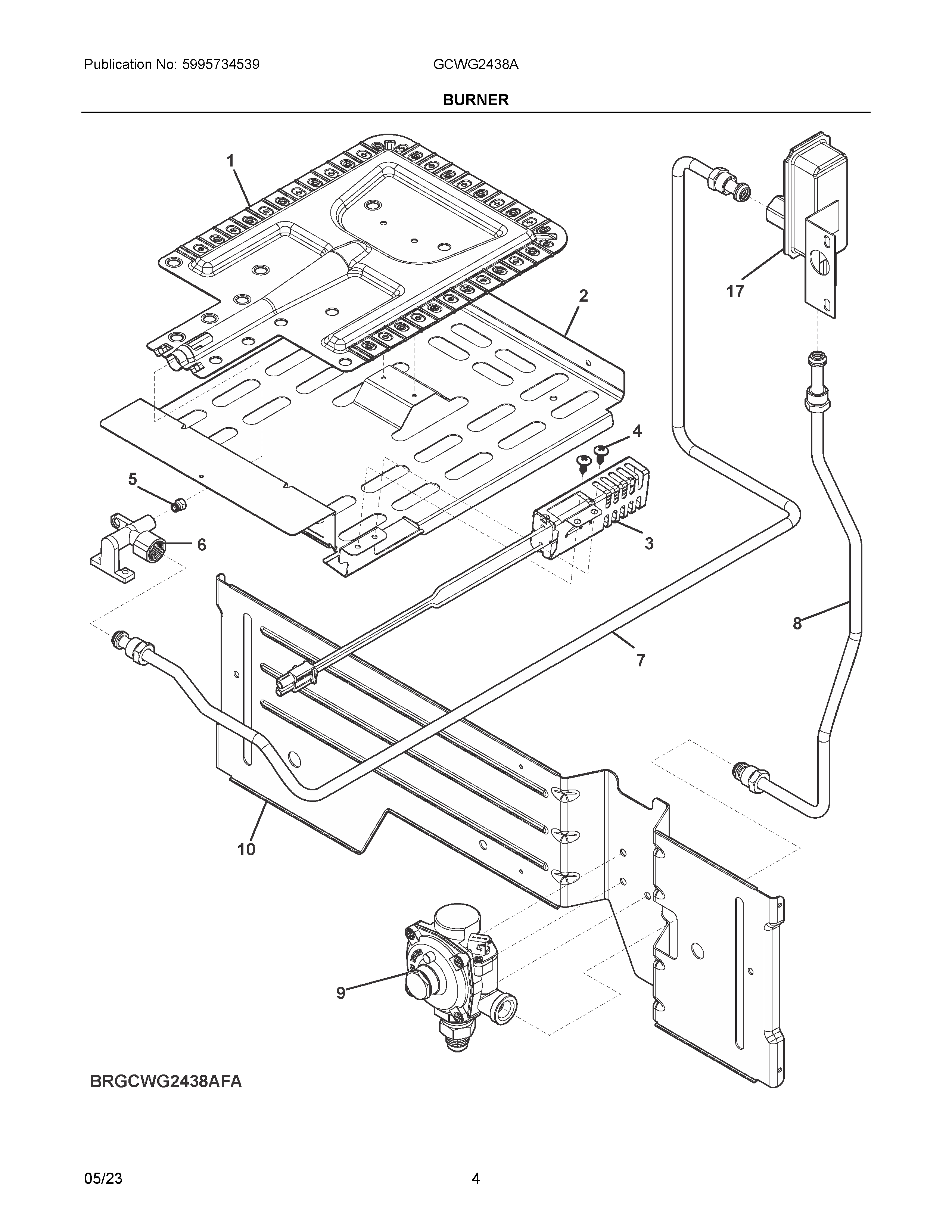

| NI | Cable Tie, push mount, black |
| NIA | HARNESS, WIRING, BAKE BURNER, IGNITOR |
| NI | Screw, HEX/Multi, #8 x 8mm |
| 1 | BURNER |
| 2 | PANEL, AERATION, BAKE BURNER |
| 3 | IGNITOR, BAKE BURNER |
| 4 | SCREW, T20, M4 X 4, ZINC, IGNITOR |
| 5 | 4055563664 Frigidaire Nipple |
| 6 | 5304533803 Frigidaire Holder |
| 7 | TUBE, GAS, SAFETY VALVE TO, BAKE BURNER |
| 8 | TUBE, GAS, REGULATOR TO, SAFETY VALVE |
| 9 | REGULATOR, VALVE, ASSEMBLY |
| 10 | BRACE, OVEN, REAR |
| 17 | 5304533805 Frigidaire Valve |
