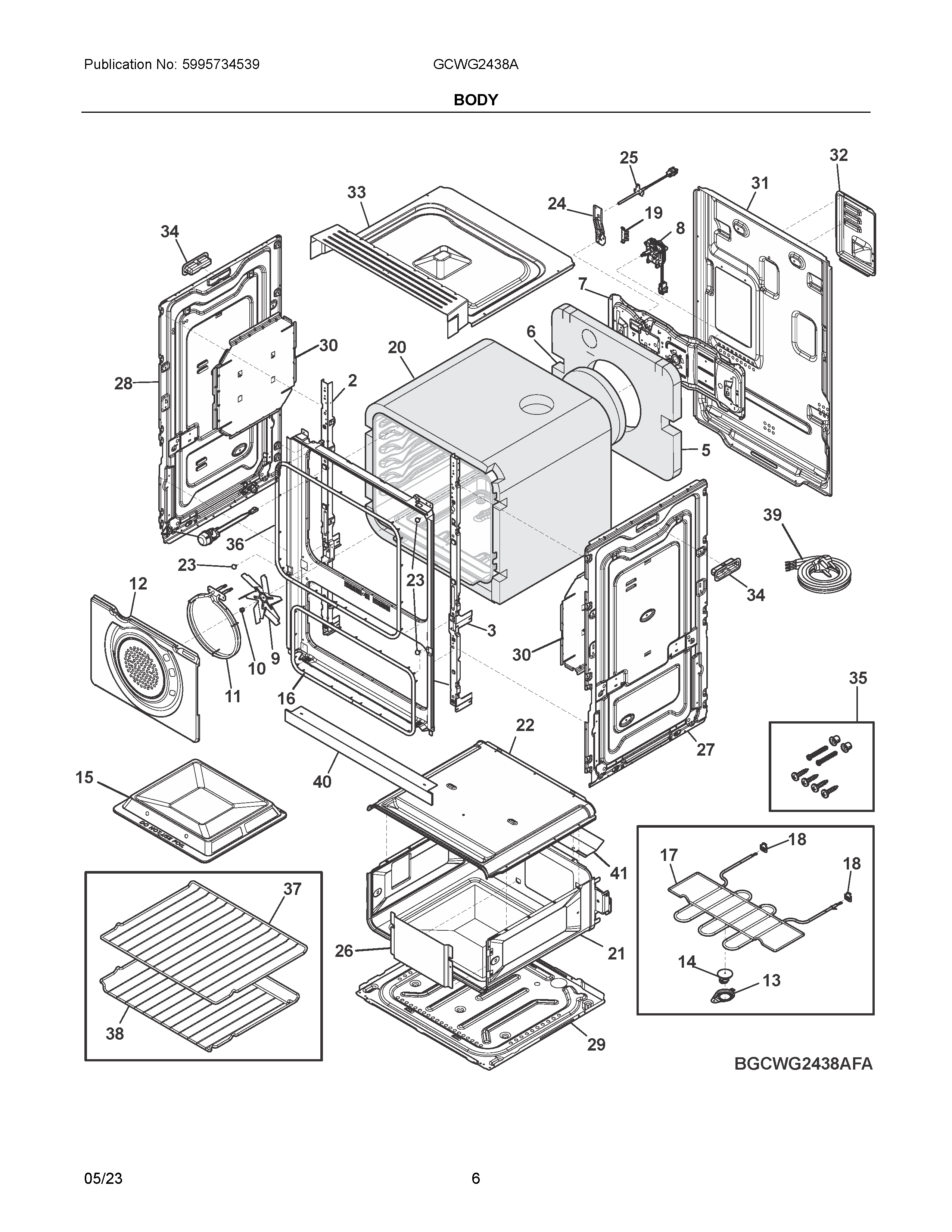

GCWG2438ABA 04 – BODY

Products

Position	Product
NIA	5304533766 Frigidaire Harness
NI	Screw, PH2 nylon washr, #8 x 1/2
NI	Screw, #2 PH AB MUSH, #8 x 1/2, black
NI	Screw, HEX/Multi, #8 x 8mm
NI	Cable Tie, PLT1M-M30
NI	HARNESS, WIRING, MAIN, W/CAPACITOR
1	FRAME ASSEMBLY, FRONT
2	CHANNEL, FRONT FRAME, LH
3	CHANNEL, FRONT FRAME, RH
4	5304533556 Frigidaire Lamp
5	INSULATION, OVEN, BACK
6	INSULATION, INSERT, OVEN BACK
7	BRACE, OVEN, REAR
8	5304533557 Frigidaire Motor
9	4055548913 Frigidaire Blade
10	NUT, FAN BLADE
11	ELEMENT, CONVECTION
12	COVER, CONVECTION FAN
13	COVER, ELEMENT LATCH
14	LATCH, ELEMENT SUPPORT
15	BOTTOM, OVEN LINER
16	SEAL, DOOR, GRILL BOX
17	ELEMENT, GRILL BOOST, BROIL
18	CLIP, ELEMENT MTG.
19	5304533802 Frigidaire Plate Assembly
20	INSULATION, OVEN, WRAPPER
21	GRILL BOX, ASSEMBLY, LOWER
22	PANEL, GRILL TOP
23	BUMPER, STOP, BLACK
24	Bracket, temp probe
25	5304533767 Frigidaire Probe
26	5304533834 Frigidaire Shield Assembly
27	PANEL, OVEN, RH SIDE
28	PANEL, OVEN, LH SIDE
29	PANEL, OVEN, BOTTOM
30	SHIELD, THERMAL, SIDE
31	PANEL, MAIN BACK
32	5304533771 Frigidaire Cover
33	PANEL, OVEN, TOP
34	HANDLE, OVEN MOVING
35	KIT, CABINET INSTALL
36	SEAL, OVEN DOOR
37	RACK
38	5304533784 Frigidaire Rack
39	5304533821 Frigidaire Service Cord
40	5304535327 Frigidaire Trim
41	PANEL, WIRE SHIELD, GRILL BOX
