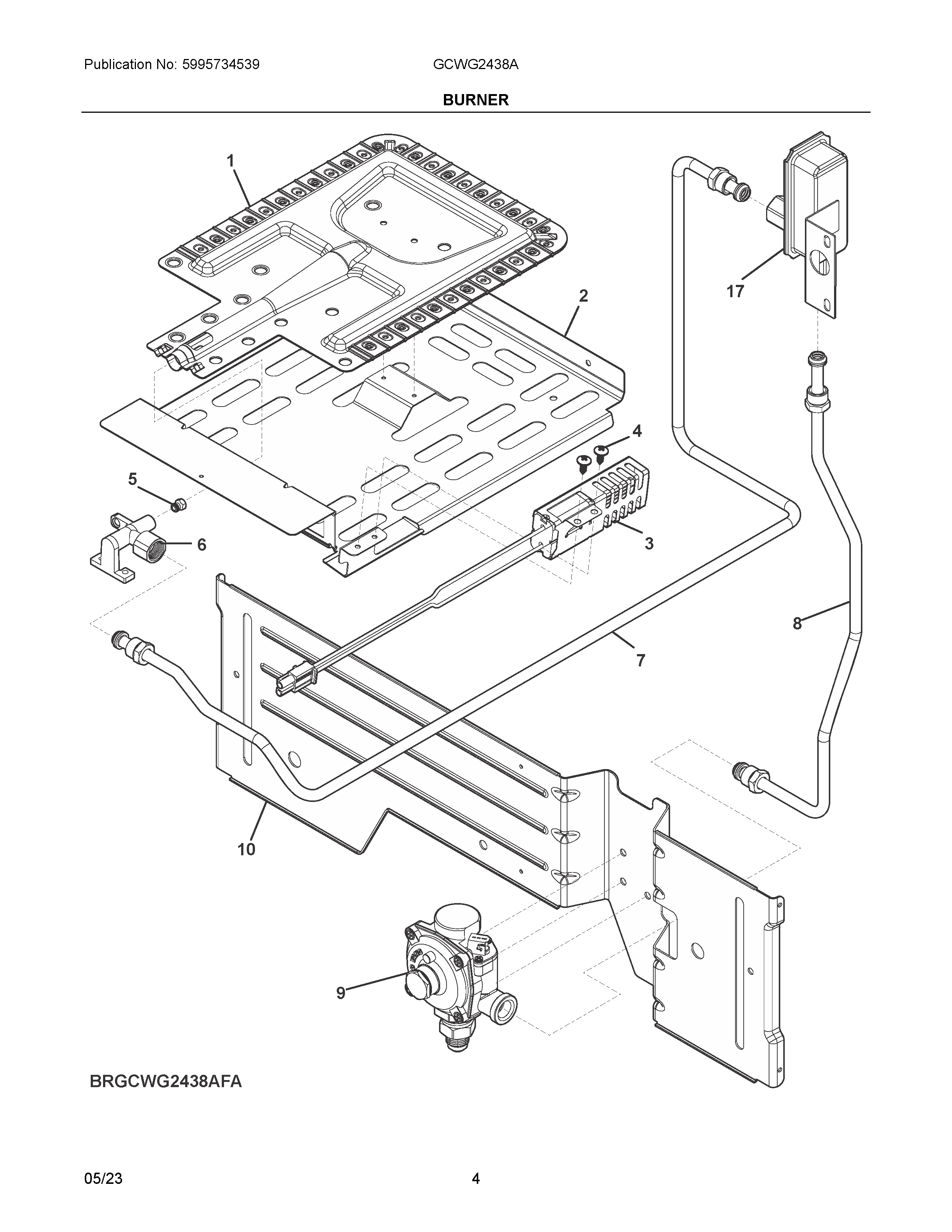

GCWG2438AFA 03 – BURNER

Products

Position	Product
NI	Cable Tie, push mount, black
NIA	HARNESS, WIRING, BAKE BURNER, IGNITOR
NI	Screw, HEX/Multi, #8 x 8mm
1	BURNER
2	PANEL, AERATION, BAKE BURNER
3	IGNITOR, BAKE BURNER
4	SCREW, T20, M4 X 4, ZINC, IGNITOR
5	4055563664 Frigidaire Nipple
6	5304533803 Frigidaire Holder
7	TUBE, GAS, SAFETY VALVE TO, BAKE BURNER
8	TUBE, GAS, REGULATOR TO, SAFETY VALVE
9	REGULATOR, VALVE, ASSEMBLY
10	BRACE, OVEN, REAR
17	5304533805 Frigidaire Valve
