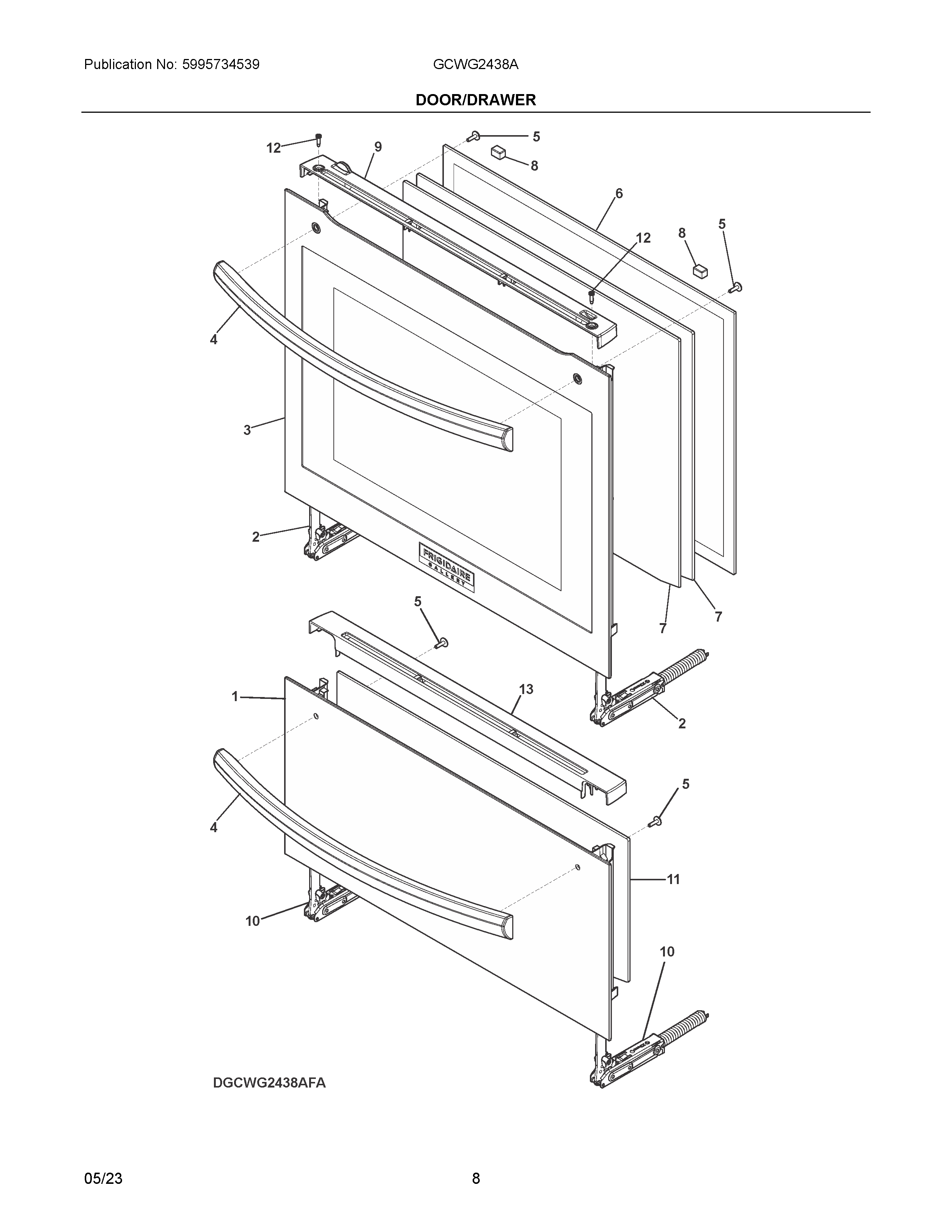

GCWG2438AFA 05 – DOOR/DRAWERadmin2025-04-26T09:31:27+00:00GCWG2438AFA 05 – DOOR/DRAWER
Products
| Position | Product |
|---|
| NI | Screw, PH2 HEX 1/4, M4 x 5, black, door hinge |
| 1 | DOOR ASSEMBLY, OUTER, STAINLESS, GRILL BOX |
| 2 | 5304533780 Frigidaire Hinge |
| 3 | 5304533790 Frigidaire Door Assembly |
| 4 | HANDLE, DOOR, STAINLESS |
| 5 | Screw, T20 PAN, m4 x 16, handle |
| 6 | 4055549747 Frigidaire Glass |
| 7 | 4055549739 Frigidaire Glass |
| 8 | SPACER, RUBBER, DOOR GLASS |
| 9 | 5304533783 Frigidaire Trim |
| 10 | HINGE, DOOR, GRILL BOX |
| 11 | GLASS, DOOR, INNER, GRILL BOX |
| 12 | SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED |
| 13 | TRIM, DOOR CAP, GRILL BOX |
