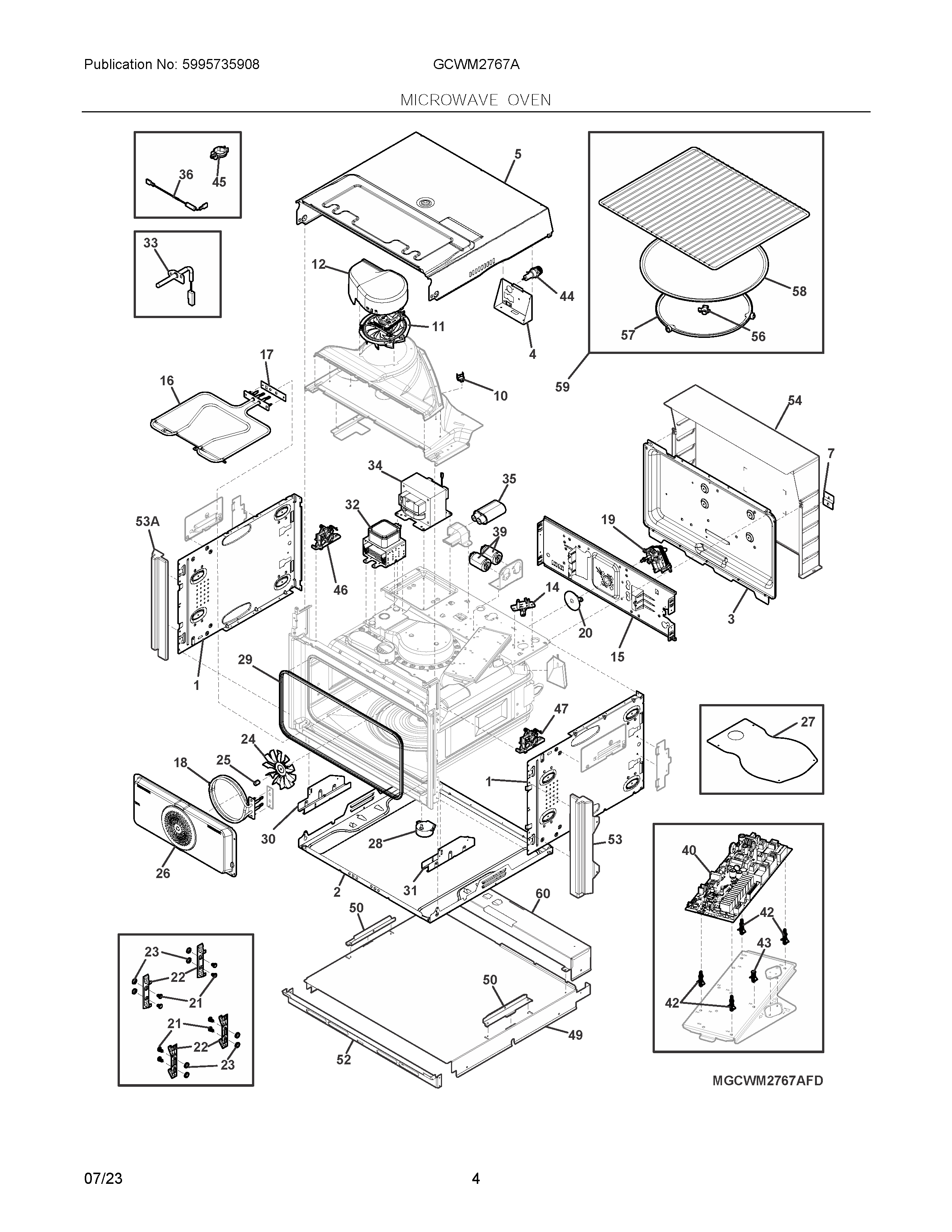

GCWM2767ADE 03 – MICROWAVE OVEN

Products

PositionProduct
NI387856311 Frigidaire Screw
NI5304526533 Frigidaire Screw
NIAWCI 561045004
NIA555031101 Frigidaire Sensor
NIWCI 5029617300
NIWCI 349475501
NIHARNESS
NI405522329 Frigidaire Screw Kit
NIA139022101 Frigidaire Insulation
1PANEL, SIDE
2BASE, PLATE, BOTTOM
3PANEL
4SUPPORT, CONNECTION BOX
5A05908717 Frigidaire Housing
7BRACKET, CONDUIT MTG.
10A01802605 Frigidaire Thermostat
11A18653201 Frigidaire Cooling Fan
12A13630003 Frigidaire Duct
14LAMP ASSEMBLY, G9, 40W, 120V
15MOUNTING PLATE, BACK
16ELEMENT, HEATING, UPPER, GRILL
17BRACKET, HEATING ELEMENT
18A08933932 Frigidaire Element
19555027103 Frigidaire Motor
20SHIELD, CONVECTION FAN, CHOKE
21808373901 Frigidaire Range Pin
22A18262002 Frigidaire Range Support Assembly
23A19949501 Frigidaire Range Washer
24555023101 Frigidaire Fan Blade
25561231207 Frigidaire Nut
26COVER, CONVECTION FAN, BACK
27COVER, MICA
28A13805506 Frigidaire Motor
29GASKET, DOOR, MICROWAVE
30SUPPORT, LH HINGE
31SUPPORT, RH HINGE
32555030400 Frigidaire Magnetron
33555044200 Frigidaire Sensor
34555030502 Frigidaire Transformer
35315795903 Frigidaire Capacitor Assembly
36555042802 Frigidaire Diode
39A20022801 Frigidaire Filter
40A18493801 Frigidaire PC Board Assembly
42CLIP, PC BOARD, (4)
43CLIP, PC BOARD, FLAT TOP
44318647300 Frigidaire Microwave Fuse and Holder
45HOLDER, CABLE, ROUND
46A23242801 Frigidaire Interlock
47A23243301 Frigidaire Interlock Component
49PLATE, SUPPORT
50SUPPORT, SIDE
52TRIM, VENT, BLACK
53A5304531547 Frigidaire Spacer
535304531546 Frigidaire Spacer
545304531550 Frigidaire Cover
56A15654501 Frigidaire Coupler
57A13881201 Frigidaire Roller Assembly
58A13804901 Frigidaire Tray
59A18994801 Frigidaire Range Accessory Kit
60WCI 5304531540
