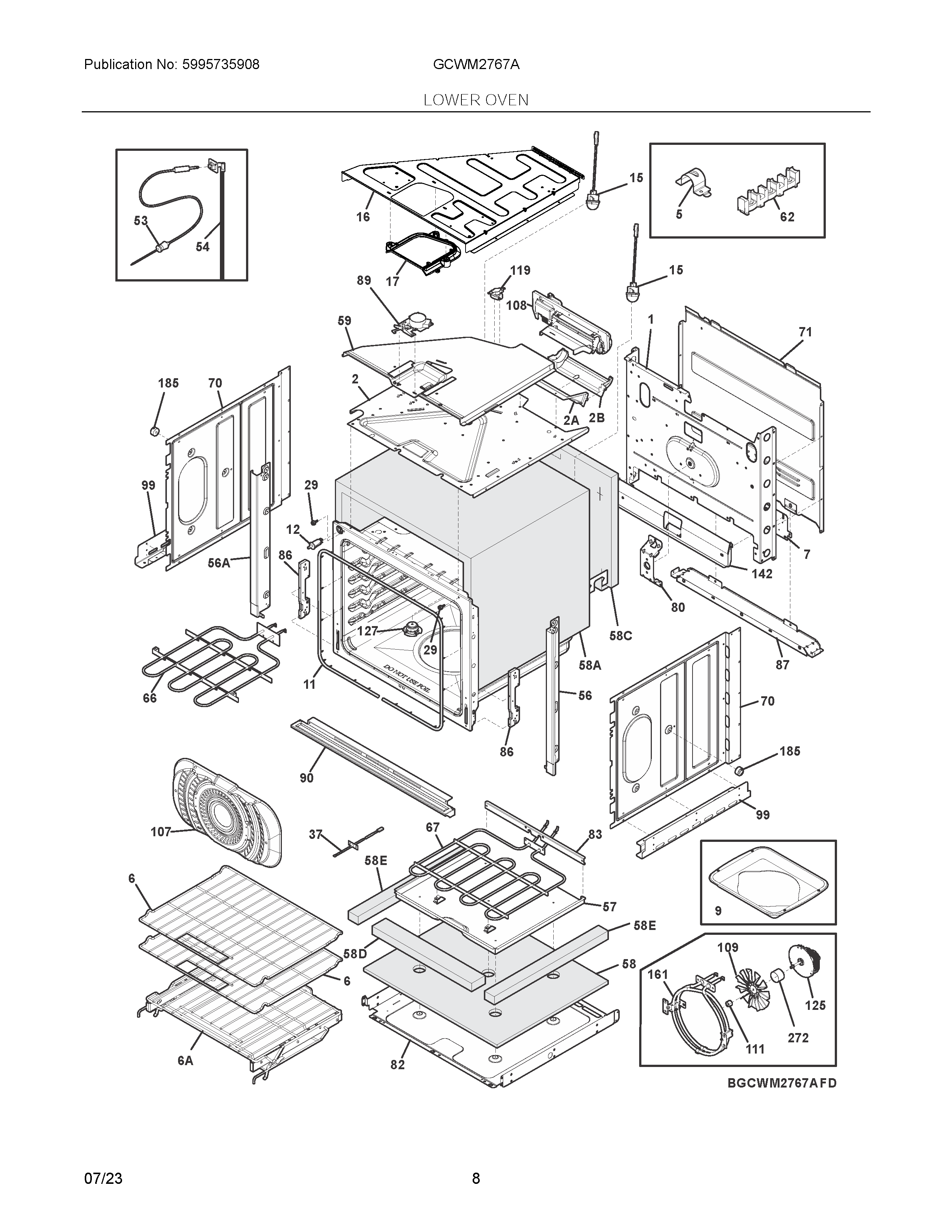

GCWM2767ADE 04 – LOWER OVEN

GCWM2767ADE 04 – LOWER OVEN

Written by

in

GCWM2767ADE 04 – LOWER OVEN

Products

PositionProduct
NI316021109 Frigidaire Oven Screw
NIA139022101 Frigidaire Insulation
NI5304535368 Frigidaire Harness
NIHARNESS
NIWCI 5304528293
NIAWCI 387872717
NIA5304525451 Frigidaire Harness
NIWCI 5304531542
NI5304531567 Frigidaire Harness Assembly
NI5304531557 Frigidaire Harness
NI5304470882 Frigidaire Oven Screw
NI5304531552 Frigidaire Harness
NI387856311 Frigidaire Screw
NIA316205500 Frigidaire Oven Nut
NIA316001017 Frigidaire Screw
NIA316418900 Frigidaire Oven Screw
NI5304526533 Frigidaire Screw
1PANEL, MAIN BACK
2139027805 Frigidaire Shield
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
5BRACKET, CONDUIT MTG.
6A5304518865 Frigidaire Rack Assembly
65304514984 Frigidaire Rack
7PANEL, SERVICE, MAIN BACK
9316081903 Frigidaire Tray
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304530343 Frigidaire Lamp Assembly
16DUCT, COOLING, XFLOW
17DUCT, SUCTION BYPASS, 2 CHANNEL
29316517600 Frigidaire Oven Spacer
375304525427 Frigidaire Probe
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56A5303324184 Frigidaire Wall Oven Range Screw
565304531548 Frigidaire Trim
575304506949 Frigidaire Box
58A139001701 Frigidaire INSULATION
58C5304506954 Frigidaire Insulation
585304506952 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022001 Frigidaire SHIELD
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86808930503 Frigidaire Receptacle
87WCI 139021901
895304528835 Frigidaire Motor
905304531544 Frigidaire Trim
99318256201 Frigidaire Oven Bracket
1075304527949 Frigidaire Cover
108139038303 Frigidaire Blower Assembly
1095304525455 Frigidaire Blade
111316136600 Frigidaire Oven Range Lock Nut
119THERMOSTAT,SAFETY,125C
125139008507 Frigidaire Motor Assembly
127139042600 Frigidaire Tube Assembly
142WCI 5304506953
161139006500 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
272139021700 Frigidaire Oven Tube
