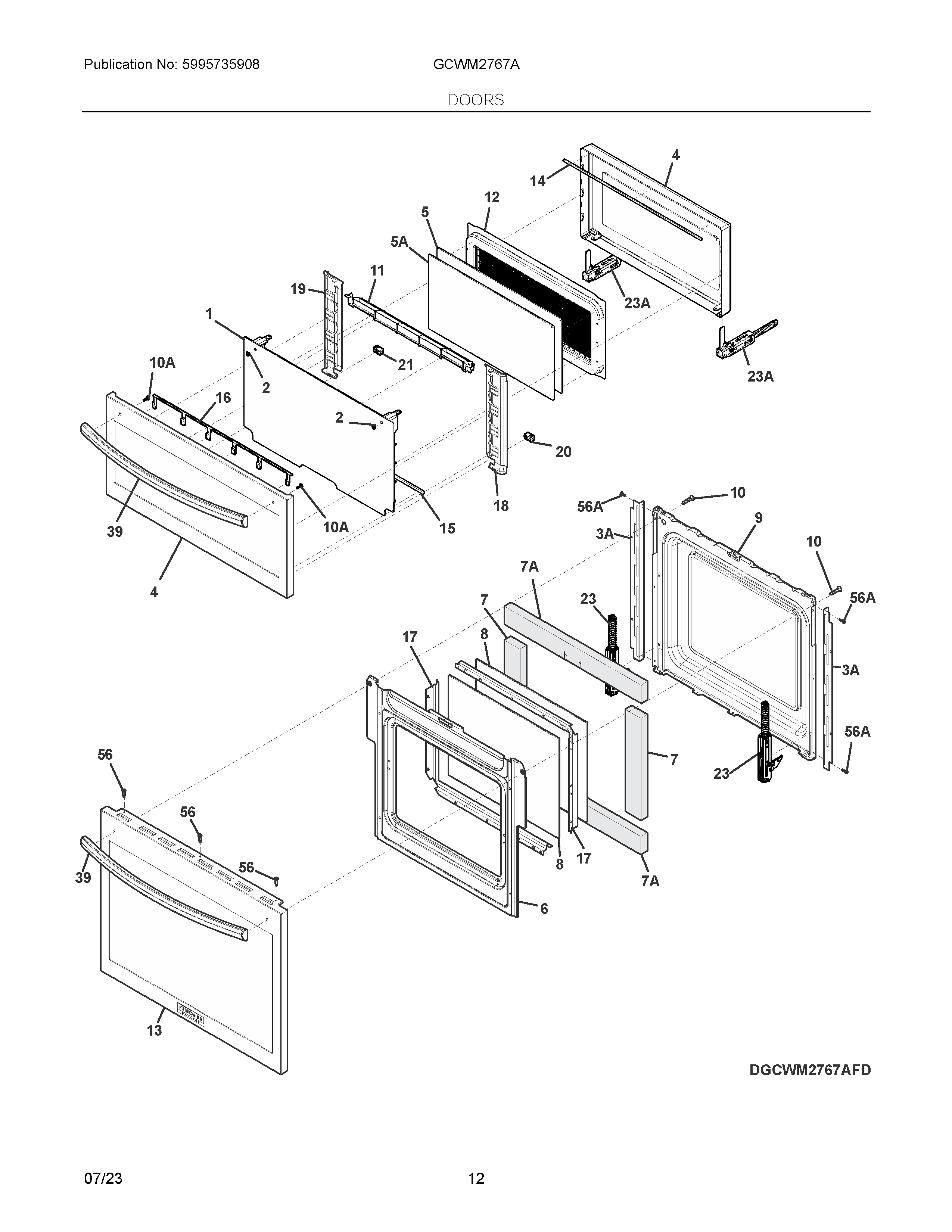

GCWM2767ADE 05 – DOORS

GCWM2767ADE 05 – DOORS

Written by

in

GCWM2767ADE 05 – DOORS

Products

PositionProduct
NISCREW, PT T20, 4 X 10, (8)
NI316021109 Frigidaire Oven Screw
NIA316418900 Frigidaire Oven Screw
1555118433 Frigidaire Range Door Glass
2SPACER, DOOR HANDLE
3A5304525458 Frigidaire Trim
3561626486 Frigidaire Door Frame
45304531566 Frigidaire Door Assembly
5807625502 Frigidaire Glass
5A555033602 Frigidaire Glass
6139014203 Frigidaire Oven Baffle
7318372017 Frigidaire Insulation
7A318372018 Frigidaire Insulation
8139085803 Frigidaire Glass
9LINER, OVEN DOOR
10ASCREW, TRUSS, 8-32 X 17.65
105304414648 Frigidaire Oven Screw
11A06645500 Frigidaire Cover Assembly
12555040920 Frigidaire Inner Door Assembly
135304525833 Frigidaire Door Assembly
14808082001 Frigidaire Gasket
15808140001 Frigidaire Tape
165304525161 Frigidaire Cover
17318264735 Frigidaire Spacer
185304531554 Frigidaire Cover
195304531555 Frigidaire Cover Assembly
205304525159 Frigidaire Stopper
215304525160 Frigidaire Stopper
23AA06683602 Frigidaire Hinge
23808930405 Frigidaire Hinge Assembly
395304525823 Frigidaire Handle
39A5304525824 Frigidaire Handle
56A5303324184 Frigidaire Wall Oven Range Screw
