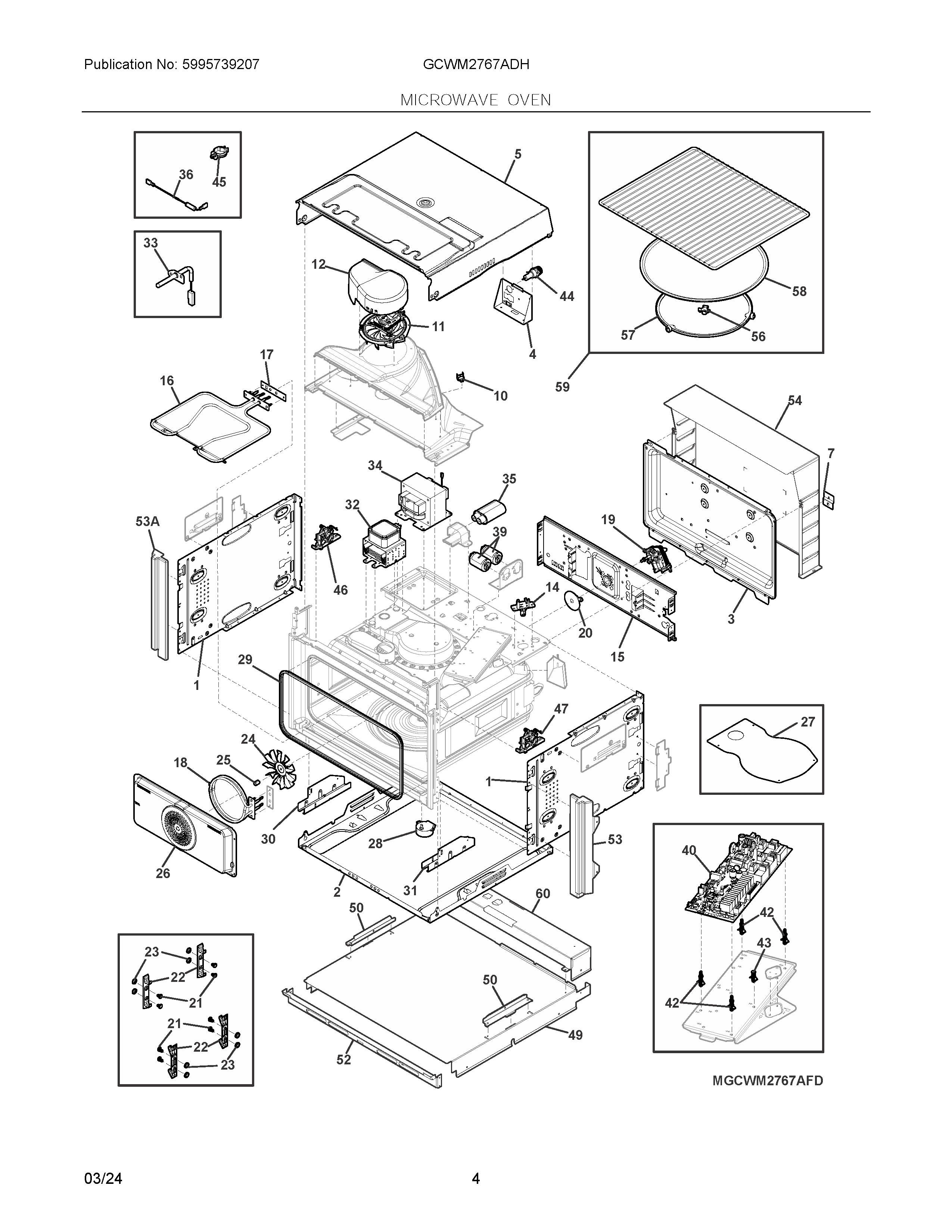

GCWM2767ADH 03 – MICROWAVE OVEN

Products

Position	Product
NI	405522329 Frigidaire Screw Kit
NI	5304526533 Frigidaire Screw
NIB	139022101 Frigidaire Insulation
NIA	WCI 561045004
NIA	555031101 Frigidaire Sensor
NI	WCI 5029617300
NI	WCI 349475501
NI	HARNESS
NI	387856311 Frigidaire Screw
1	PANEL, SIDE
2	BASE, PLATE, BOTTOM
3	PANEL
4	SUPPORT, CONNECTION BOX
5	A05908717 Frigidaire Housing
7	BRACKET, CONDUIT MTG.
9	316081903 Frigidaire Tray
10	THERMOSTAT,SAFETY,125C
11	A18653201 Frigidaire Cooling Fan
12	A13630003 Frigidaire Duct
14	LAMP ASSEMBLY, HALOGEN, G9, 40W
15	MOUNTING PLATE, BACK
16	ELEMENT, HEATING, UPPER, GRILL
17	BRACKET, HEATING ELEMENT
18	A08933932 Frigidaire Element
19	555027103 Frigidaire Motor
20	SHIELD, CONVECTION FAN, CHOKE
21	808373901 Frigidaire Range Pin
22	A18262002 Frigidaire Range Support Assembly
23	A19949501 Frigidaire Range Washer
24	555023101 Frigidaire Fan Blade
25	561231207 Frigidaire Nut
26	COVER, CONVECTION FAN, BACK
27	COVER, MICA
28	A13805506 Frigidaire Motor
29	GASKET, DOOR, MICROWAVE
30	SUPPORT, LH HINGE
31	SUPPORT, RH HINGE
32	555030400 Frigidaire Magnetron
33	555044200 Frigidaire Sensor
34	555030502 Frigidaire Transformer
35	315795903 Frigidaire Capacitor Assembly
36	555042802 Frigidaire Diode
39	A20022801 Frigidaire Filter
40	A18493801 Frigidaire PC Board Assembly
42	CLIP, PC BOARD, (4)
43	CLIP, PC BOARD, FLAT TOP
44	318647300 Frigidaire Microwave Fuse and Holder
45	HOLDER, CABLE, ROUND
46	A23242801 Frigidaire Interlock
47	A23243301 Frigidaire Interlock Component
49	PLATE, SUPPORT
50	SUPPORT, SIDE
52	TRIM, VENT, BLACK
53A	5304504202 Frigidaire Red Meat Temperature Probe
53	5304531546 Frigidaire Spacer
53A	5304531547 Frigidaire Spacer
54	5304531550 Frigidaire Cover
54A	139017203 Frigidaire Assembly Receptacle
56	A15654501 Frigidaire Coupler
57	A13881201 Frigidaire Roller Assembly
58	A13804901 Frigidaire Tray
59	A18994801 Frigidaire Range Accessory Kit
60	WCI 5304531540
