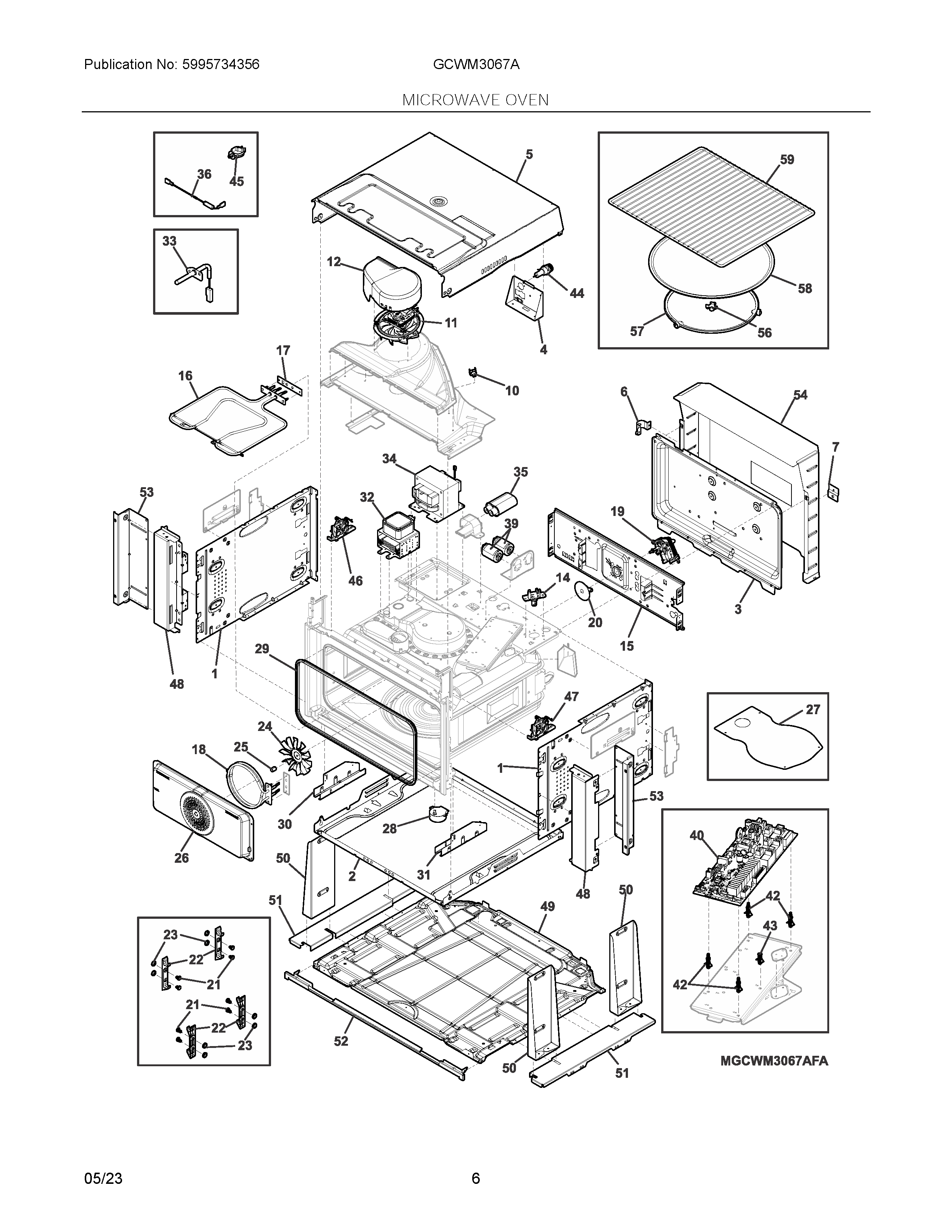

GCWM3067ADB 03 – MICROWAVE OVEN

Products

Position	Product
NI	5304530385 Frigidaire Harness
NI	405522329 Frigidaire Screw Kit
NI	WCI 349475501
NIA	555031101 Frigidaire Sensor
NI	WCI 561045004
NI	387856311 Frigidaire Screw
NI	WCI 5029617300
NI	A17118003 Frigidaire Harness
NI	A17118006 Frigidaire Harness
NIA	WCI 561344207
NIA	WCI 5304532068
NI	A17118016 Frigidaire Harness
NI	A17118015 Frigidaire Harness
NI	A17118021 Frigidaire Harness
NI	HARNESS
1	PANEL, SIDE
6	BRACKET, LINK
7	BRACKET, CONDUIT MTG.
19	555027103 Frigidaire Motor
20	SHIELD, CONVECTION FAN, CHOKE
21	808373901 Frigidaire Range Pin
24	555023101 Frigidaire Fan Blade
25	561231207 Frigidaire Nut
29	GASKET, DOOR, MICROWAVE
30	SUPPORT, LH HINGE
31	SUPPORT, RH HINGE
32	555030400 Frigidaire Magnetron
33	555044200 Frigidaire Sensor
34	555030502 Frigidaire Transformer
35	315795903 Frigidaire Capacitor Assembly
36	555042802 Frigidaire Diode
42	CLIP, PC BOARD, (4)
43	CLIP, PC BOARD, FLAT TOP
45	HOLDER, CABLE, ROUND
48	FILLER BRACKET, FRONT, BLACK
49	PANEL, EXTERIOR, BOTTOM, UPPER OVEN
50	SUPPORT, SIDE
51	COVER
52	5304530376 Frigidaire Trim
53	WCI 5304530384
54	5304530377 Frigidaire Cover
56	A15654501 Frigidaire Coupler
57	A13881201 Frigidaire Roller Assembly
58	A13804901 Frigidaire Tray
59	A18994801 Frigidaire Range Accessory Kit
