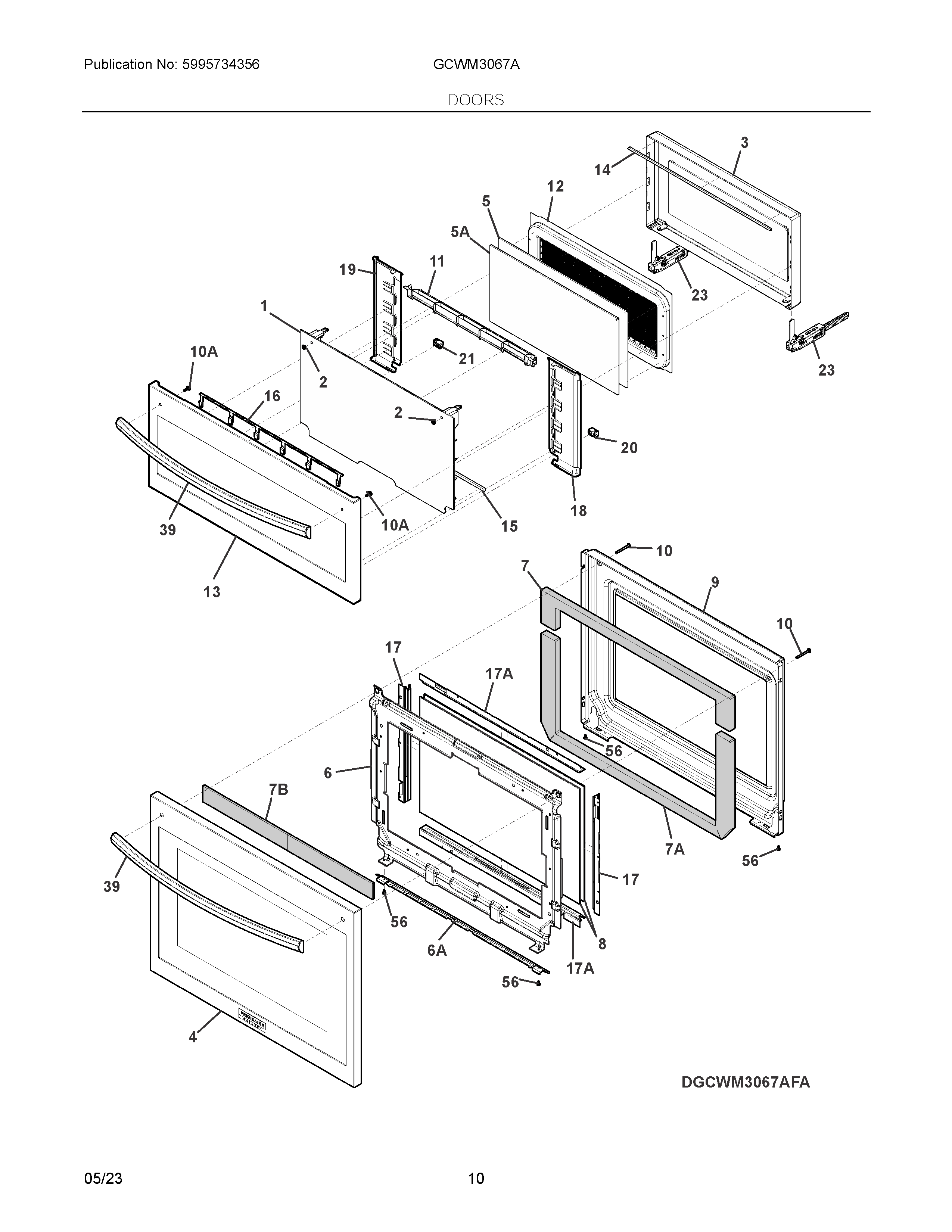

GCWM3067ADB 05 – DOORS

Products

Position	Product
NI	SCREW, PT T20, 4 X 10, (8)
NI	387856311 Frigidaire Screw
1	555118433 Frigidaire Range Door Glass
2	SPACER, DOOR HANDLE
3	561626486 Frigidaire Door Frame
4	5304526650 Frigidaire Door Assembly
5	807625502 Frigidaire Glass
5A	555033602 Frigidaire Glass
6	5304526282 Frigidaire Shield
6A	5304530443 Frigidaire Bracket
7	5304526656 Frigidaire Insulation
7B	5304526530 Frigidaire Insulation
7A	5304526655 Frigidaire Insulation Assembly
8	5304526387 Frigidaire Microwave Glass
9	5304530464 Frigidaire Liner Assembly
10	SCREW, TRUS T20, 10-44 X 1.870, BLACK, HANDLE MTG.
10A	5303310510 Frigidaire Oven Screw
12	555040920 Frigidaire Inner Door Assembly
13	5304530414 Frigidaire Door Assembly
14	808082001 Frigidaire Gasket
15	808140001 Frigidaire Tape
16	5304525161 Frigidaire Cover
17A	5304526285 Frigidaire Bracket
17	5304526284 Frigidaire Bracket
18	COVER
19	COVER
20	5304525159 Frigidaire Stopper
21	5304525160 Frigidaire Stopper
39	5304534842 Frigidaire Handle
56	5304526234 Frigidaire Screw
